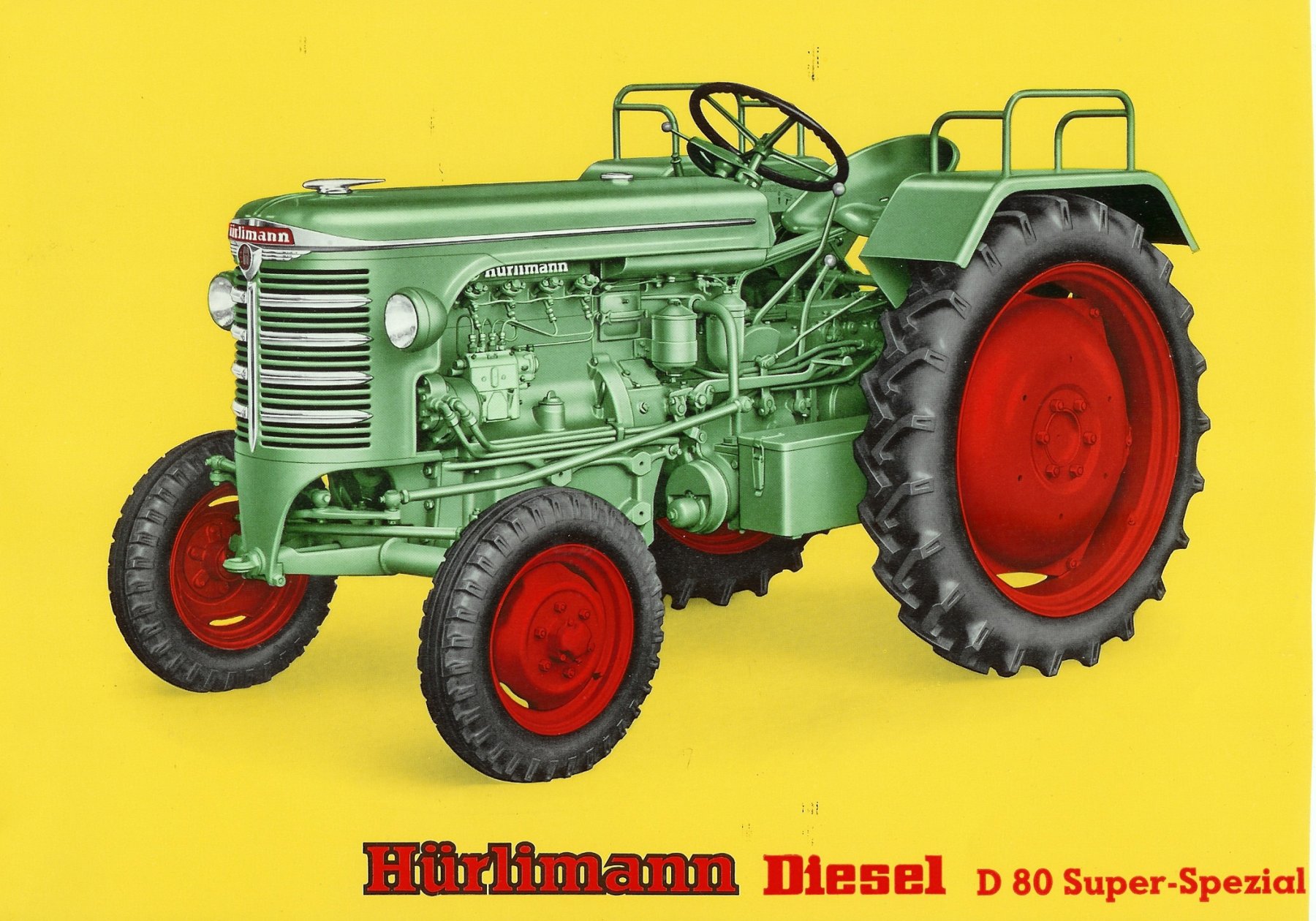

Hürlimann D80
Series: Other models
The D80 is a tractor from the manufacturer Hürlimann, belonging to the tractors group. It is equipped with a power output of 32 hp (23.5 kW) generated by a four‑cylinder engine with a displacement of 2 360 cm³. Its dimensions are 2 700 mm in length, 1 640 mm in width and 1 480 mm in height, with a wheelbase of 1 670 mm. The empty weight is 1 510 kg and the fuel tank holds 50 l.
The D80 features a 5V/1R transmission, providing five forward gears and one reverse gear, and can reach a top speed of 20 km/h. The rated engine speed of 1 850 rpm influences the torque characteristics at low speeds, which is beneficial for field pulling tasks. The relatively compact size and weight of 1 510 kg result in moderate ground pressure, helping to prevent sinking in soft soils and preserving soil structure. A 50‑liter tank offers sufficient range for typical field operations without frequent refuelling.
Since no direct comparison within the series is provided, the D80’s role is described based on its size and power. With 32 hp and the listed dimensions, it is suited for small to medium agricultural operations performing tasks such as ploughing, seeding or transporting loads in the field. The combination of five forward gears and a maximum speed of 20 km/h makes it appropriate for work that requires both pulling power and a moderate travel speed.
Hürlimann – other models: the collective page of Swiss tractors outside the named ranges, from the early petrol-paraffin types 2 M 20 to the SAME-era XA and XB, 5.9 to 67.6 kW, petrol, paraffin and diesel
This page gathers the Hürlimann tractors the register could not assign to a named range. Hürlimann of Wil in Switzerland built one of the first series-produced diesel tractors in Europe in 1929, after the company had earlier started with petrol-paraffin systems, in which the engine was started on petrol and then switched to the cheaper paraffin – a drive principle reflected in early types on this page such as the 2 M 20 and the 4 T 26 Z. In the 1970s Hürlimann became part of the Italian SAME group, today trading as Same Deutz-Fahr (SDF); since then the brand has shared platforms and assemblies with the sister marques Same and Lamborghini Trattori, visible in the later XA, XB and XL ranges with their shared type logic of power class and equipment code.
Read on 3 more paragraphs
The register lists here 33 versions with 5.9 to 67.6 kW, or 8 to 92 hp, from one- to four-cylinders of 765 to 4,954 cm³ displacement, unladen weights from 780 to 4,700 kg, lengths from 2,200 to 3,750 mm, widths from 1,400 to 1,920 mm and speeds from 1,200 to 2,100 rpm; the engines mostly ran on petrol-paraffin systems or plain petrol, and on the newer versions also on diesel.
Hürlimann ranks among the long-established Swiss tractor brands and, with its early diesel pioneering work, was ahead of its time technologically, before the brand became one of several European tractor marques with a shared platform base within the SAME group.
On the early petrol-paraffin types, the condition of the switch-over system and the ignition, on the diesel models the state of injection pump and engine, generally the tightness of gearbox and hydraulics, and rust on sheet metal count; spares run through the Same Deutz-Fahr network and specialist Swiss Hürlimann dealers.
Sources: SpecCodex register, model data: Hürlimann (weitere Modelle), Hürlimann (Same Deutz-Fahr Group, Hersteller)
Technical data
Engine
| Power | 32 hp (23.5 kW)correct |
|---|---|
| Rated speed | 1,850 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,360 cm³correct |
Dimensions and weights
| Length | 2,700 mmcorrect |
|---|---|
| Width | 1,640 mmcorrect |
| Height | 1,480 mmcorrect |
| Wheelbase | 1,670 mmcorrect |
| Unladen weight | 1,510 kgcorrect |
Drivetrain and chassis
| Gearbox | 5V/1Rcorrect |
|---|---|
| Forward gears | 5correct |
| Reverse gears | 1correct |
| Top speed | 20 km/hcorrect |
Working data
| Fuel tank capacity | 50 lcorrect |
|---|
Where this model stands
Power-to-weight ratio: 15.6 kW/t (24 kW / 1.5 t)
Power class: Compact (< 40 hp)
Stronger than 19% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Hürlimann D80 have?
The Hürlimann D80 delivers 32 hp.
How much does the Hürlimann D80 weigh?
The unladen weight is 1,510 kg.
What engine does the Hürlimann D80 have?
4 cylinders, 2,360 cm³ displacement.
How fast does the Hürlimann D80 go?
Top speed is 20 km/h.
What are the dimensions of the Hürlimann D80?
2,700 mm × 1,640 mm × 1,480 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
