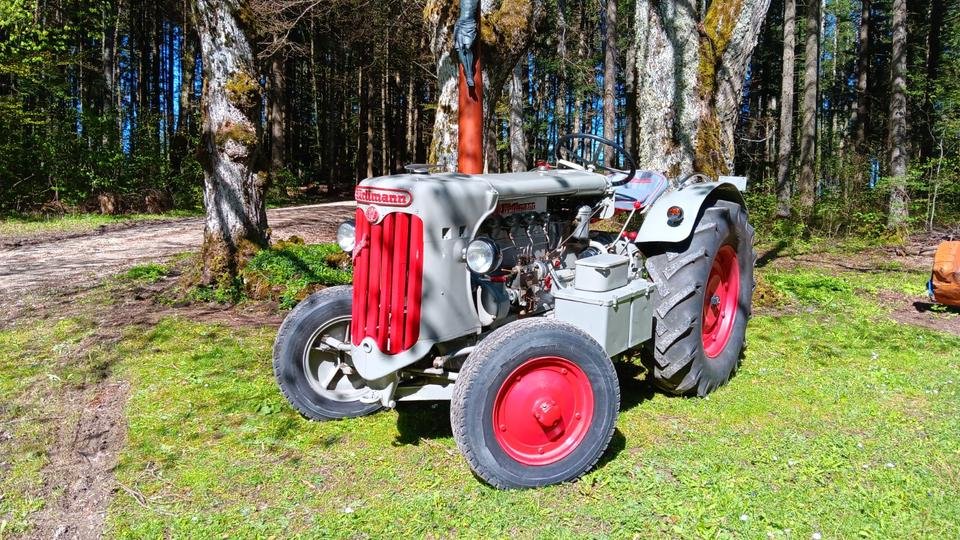

Hürlimann 4 KT 41
Built: 1939 · Series: Other models
More machines from model year 1939
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hürlimann – other models: the collective page of Swiss tractors outside the named ranges, from the early petrol-paraffin types 2 M 20 to the SAME-era XA and XB, 5.9 to 67.6 kW, petrol, paraffin and diesel
This page gathers the Hürlimann tractors the register could not assign to a named range. Hürlimann of Wil in Switzerland built one of the first series-produced diesel tractors in Europe in 1929, after the company had earlier started with petrol-paraffin systems, in which the engine was started on petrol and then switched to the cheaper paraffin – a drive principle reflected in early types on this page such as the 2 M 20 and the 4 T 26 Z. In the 1970s Hürlimann became part of the Italian SAME group, today trading as Same Deutz-Fahr (SDF); since then the brand has shared platforms and assemblies with the sister marques Same and Lamborghini Trattori, visible in the later XA, XB and XL ranges with their shared type logic of power class and equipment code.
Read on 3 more paragraphs
The register lists here 33 versions with 5.9 to 67.6 kW, or 8 to 92 hp, from one- to four-cylinders of 765 to 4,954 cm³ displacement, unladen weights from 780 to 4,700 kg, lengths from 2,200 to 3,750 mm, widths from 1,400 to 1,920 mm and speeds from 1,200 to 2,100 rpm; the engines mostly ran on petrol-paraffin systems or plain petrol, and on the newer versions also on diesel.
Hürlimann ranks among the long-established Swiss tractor brands and, with its early diesel pioneering work, was ahead of its time technologically, before the brand became one of several European tractor marques with a shared platform base within the SAME group.
On the early petrol-paraffin types, the condition of the switch-over system and the ignition, on the diesel models the state of injection pump and engine, generally the tightness of gearbox and hydraulics, and rust on sheet metal count; spares run through the Same Deutz-Fahr network and specialist Swiss Hürlimann dealers.
Sources: SpecCodex register, model data: Hürlimann (weitere Modelle), Hürlimann (Same Deutz-Fahr Group, Hersteller)
Technical data
Engine
| Fuel | Benzin/Pertroleumcorrect |
|---|---|
| Power | 40 hp (29.4 kW)correct |
| Rated speed | 1,800 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,768 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 120 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,100 mmcorrect |
|---|---|
| Width | 1,900 mmcorrect |
| Wheelbase | 1,970 mmcorrect |
| Unladen weight | 4,700 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 3V/1Rcorrect |
| Forward gears | 3correct |
| Reverse gears | 1correct |
| Front tyres | 7.25 x 20correct |
| Rear tyres | 4 x 40 x 8correct |
| Top speed | 35 km/hcorrect |
Origin and approval
| Units built | 10correct |
|---|
Where this model stands
Power-to-weight ratio: 6.3 kW/t (29 kW / 4.7 t)
Power class: Compact (< 40 hp)
Stronger than 25% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Hürlimann 4 KT 41 have?
The Hürlimann 4 KT 41 delivers 40 hp.
How much does the Hürlimann 4 KT 41 weigh?
The unladen weight is 4,700 kg.
What engine does the Hürlimann 4 KT 41 have?
4 cylinders, 3,768 cm³ displacement, Benzin/Pertroleum.
How fast does the Hürlimann 4 KT 41 go?
Top speed is 35 km/h.
What are the dimensions of the Hürlimann 4 KT 41?
3,100 mm × 1,900 mm.
When was the Hürlimann 4 KT 41 built?
Production years: 1939.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
