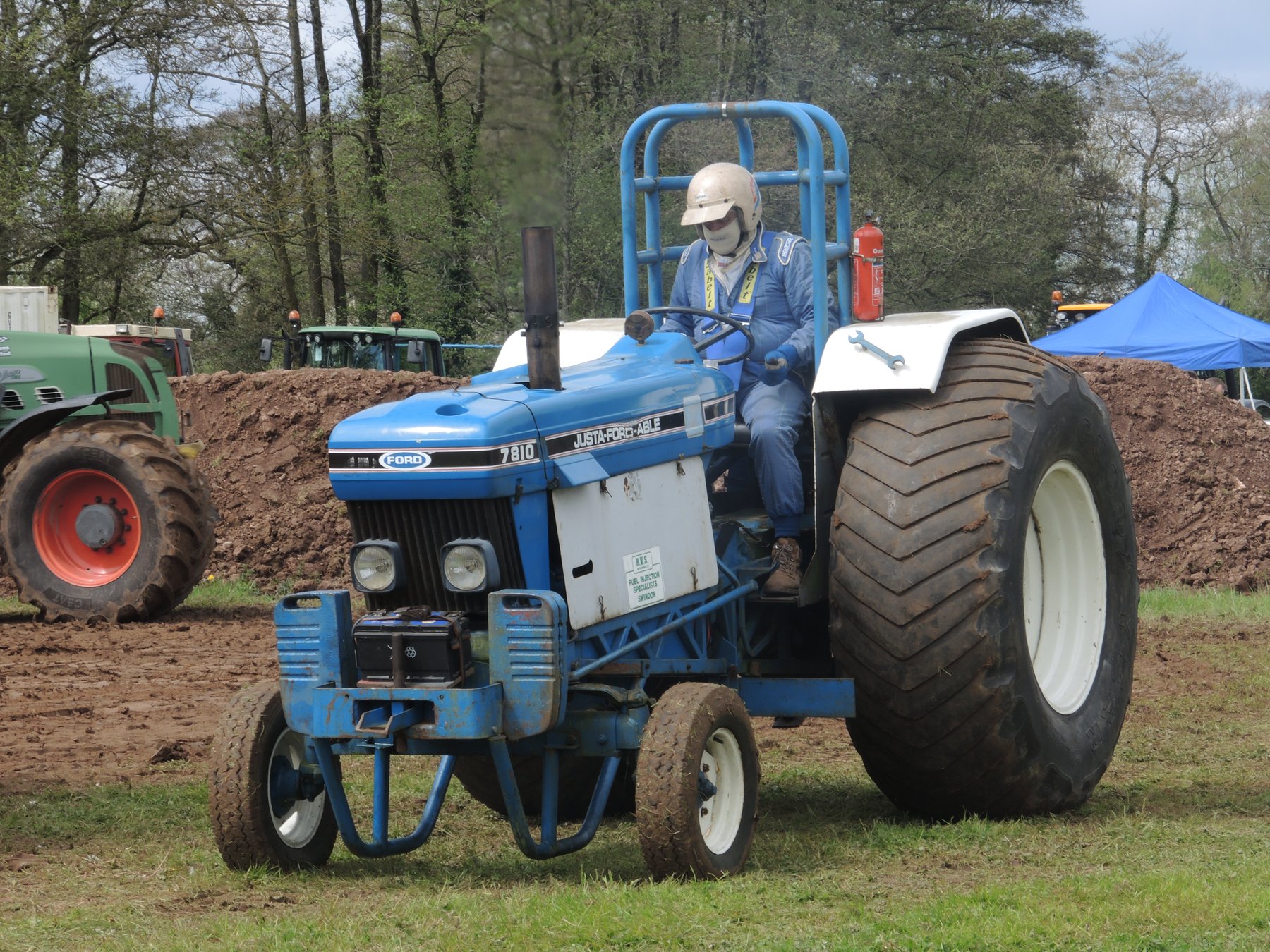

Ford 7810
Built: 1988–1991 · Series: 10 er-Baureihe
Successor: 7840 →
More machines from model year 1988
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ford 10 series (1981–1991) – 2610 to 8210 from Basildon: the last pure Ford generation, Force II, the number as size class plus 10, (A) for four-wheel drive, 30 to 81 kW
The 10 series was Ford's last tractor programme before the merger with New Holland in 1991 and the range that still shapes the Basildon plant in Essex today: in 1981 it replaced the 600 models, and in 1985 Force II brought the revised generation with the Super Q cab, regarded as one of the quietest of its time. The type logic continues the Ford tradition: the first digit gives the size class as since 1965 – 2 for the small tractor, 3 and 4 for the mid-range, 5 to 8 for the large – the 10 the series; 2610 and 2910 are the three-cylinders, 4610 and 4110 the four-cylinder standard tractors, 6610 to 7710 the six-cylinders, 7810 the 100 hp non-turbo six that became a classic, 8210 the top. (A) marks four-wheel drive.
Read on 3 more paragraphs
The register lists 12 versions with 30.2 to 80.9 kW (41 to 110 hp), 2,862 to 6,582 cm³ with three to six cylinders, torque from 154 to 399 Nm, unladen weights from 1,804 to 4,430 kg, lengths from 3,250 to 4,585 mm, widths from 1,640 to 1,955 mm and heights from 2,100 to 2,911 mm – all diesel.
The 10s were Britain's best-selling tractors of the 1980s and common across Europe; the 7810 with the 6.6-litre naturally aspirated engine is still regarded as one of the most popular used tractors because engine and transmission are considered almost indestructible.
On used tractors, operating hours, engine condition, the transmission with Dual Power powershift step, hydraulics and front axle on four-wheel-drive models and the cab mounts count; parts are fully available through New Holland and remanufacturers.
Sources: SpecCodex register, model data: Ford 10er-Baureihe, Ford (Traktoren) (Wikipedia)
Technical data
Engine
| Engine make | Fordcorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 98 hp (72.1 kW)correct |
| Rated speed | 2.100/2.070 rpmcorrect |
| Torque | 399 Nmcorrect |
| Speed at max. torque | 1,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,571 cm³ (401 cu inches (6.6 litre))correct |
| Bore | 111.78 mmcorrect |
| Stroke | 111.78 mmcorrect |
| Compression ratio | 17.5correct |
| Injection pressure | 200 barcorrect |
| Naturally aspirated | naturally aspiratedcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,204 mmcorrect |
|---|---|
| Width | 1,953 mmcorrect |
| Height | 2,739 mmcorrect |
| Wheelbase | 2,516 mm (88 inches (2220 mm))correct |
| Ground clearance | 610 mmcorrect |
| Unladen weight | 3,515 kg (7,750 lbs (3515 kg))correct |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 16 V/8 Rcorrect |
| Gearbox make | Fordcorrect |
| Forward gears | 8 constant mesh or 16 synchro dual powercorrect |
| Reverse gears | 2 contant mesh or 8 dual powercorrect |
| Front tyres | 7.50-16 ASF (A: 13.6-24 AS)correct |
| Rear tyres | 16.9-30 AS (A: 18.4-34 AS)correct |
| Top speed | 30 km/hcorrect |
Working data
| Lifting capacity | 4, 020 lbs (1823 kg])correct |
|---|---|
| Fuel tank capacity | 178 l (21 gal (us) (80 litres))correct |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Cab | Super Qcorrect |
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| Predecessor | introduced as alternative to 7910correct |
| Successor | Ford 7840correct |
Where this model stands
Power-to-weight ratio: 20.5 kW/t (72 kW / 3.5 t)
Power class: Universal (40–100 hp)
Stronger than 65% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Ford 7810 have?
The Ford 7810 delivers 98 hp.
How much does the Ford 7810 weigh?
The unladen weight is 3,515 kg.
What engine does the Ford 7810 have?
6 cylinders, 6,571 cm³ displacement, Diesel.
How fast does the Ford 7810 go?
Top speed is 30 km/h.
What are the dimensions of the Ford 7810?
4,204 mm × 1,953 mm × 2,739 mm.
When was the Ford 7810 built?
Production years: 1988–1991.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
