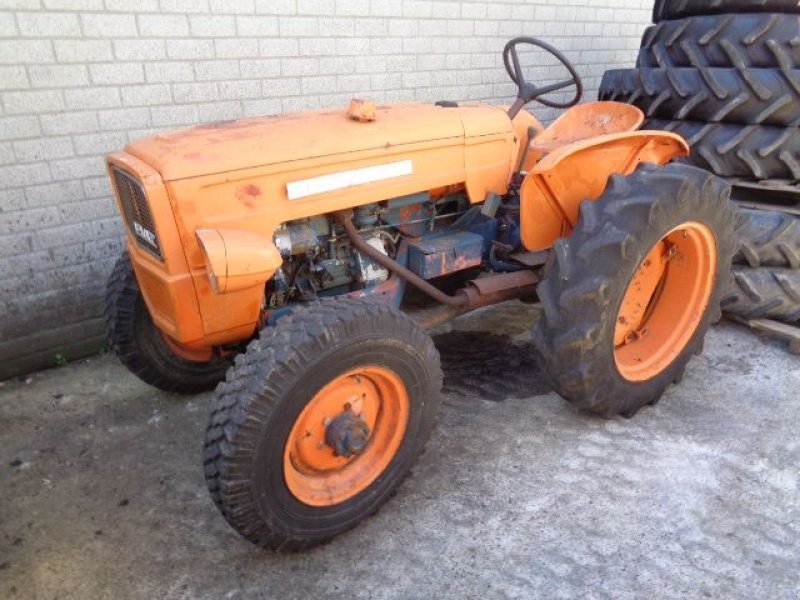

Fiat Trattori 215 (DT)
Built: 1965–1968 · Series: Diamant-Serie
More machines from model year 1965
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fiat Trattori Diamant series – Italian classics of the 1960s: twin- to four-cylinder diesels at 1,135 to 4,397 cc, 16.2 to 49.3 kW, types 215, 415, 615 and 715 (DT)
The Diamant series brought together at Fiat Trattori in Turin during the 1960s a model line from small tractor to mid-range, graded through the types 215, 415, 615 and 715. The number denotes the ascending power class, and the DT suffix the four-wheel-drive version (Doppia Trazione); the base types without DT were rear-wheel drive only. Fiat built at this time both in Turin and at its agricultural machinery site in Modena, covering with the Diamant series a wide field from small vineyard tractors to mid-power field tractors.
Read on 3 more paragraphs
The register lists 4 versions with 16.2 to 49.3 kW from twin- to four-cylinders of 1,135 to 4,397 cc displacement at 1,900 to 2,500 rpm; torque ranges from 63 to 260 Nm. Unladen weights lie between 970 and 2,880 kg, lengths between 2,601 and 3,730 mm, widths between 1,230 and 1,960 mm, and heights between 1,311 and 1,870 mm.
With its wide spread of power and dimensions, the Diamant series covered both smallholdings and special crops as well as larger arable farms, competing directly with the contemporaneous models from Same, Lamborghini and Landini, likewise from northern Italy.
On a used purchase of an older Diamant type, check corrosion on sheet metal and steering knuckles, the condition of the clutch and mechanical gearbox, and on DT four-wheel-drive versions the front-axle drive; parts for the Italian four-cylinders, less so for the twin-cylinders, are usually still obtainable through specialist dealers.
Sources: SpecCodex register, model data: Fiat Trattori Diamant-Serie
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 22 hp (16.2 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 63 Nmcorrect |
| Speed at max. torque | 1,800 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 1,135 cm³correct |
| Bore | 85 mmcorrect |
| Stroke | 100 mmcorrect |
| Compression ratio | 21.5correct |
| Injection pressure | 117 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,601 mmcorrect |
|---|---|
| Width | 1,230 mmcorrect |
| Height | 1,311 mmcorrect |
| Wheelbase | 1,699 mmcorrect |
| Ground clearance | 450 mmcorrect |
| Unladen weight | 970 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 6 V/2 Rcorrect |
| Front tyres | 5.50-15 ASF (DT: 7.50-16 AS)correct |
| Rear tyres | 9.5-24 AScorrect |
| Top speed | 22 km/hcorrect |
Where this model stands
Power-to-weight ratio: 16.7 kW/t (16 kW / 1 t)
Power class: Compact (< 40 hp)
Stronger than 9% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fiat Trattori 215 (DT) have?
The Fiat Trattori 215 (DT) delivers 22 hp.
How much does the Fiat Trattori 215 (DT) weigh?
The unladen weight is 970 kg.
What engine does the Fiat Trattori 215 (DT) have?
2 cylinders, 1,135 cm³ displacement, Diesel.
How fast does the Fiat Trattori 215 (DT) go?
Top speed is 22 km/h.
What are the dimensions of the Fiat Trattori 215 (DT)?
2,601 mm × 1,230 mm × 1,311 mm.
When was the Fiat Trattori 215 (DT) built?
Production years: 1965–1968.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 24 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
