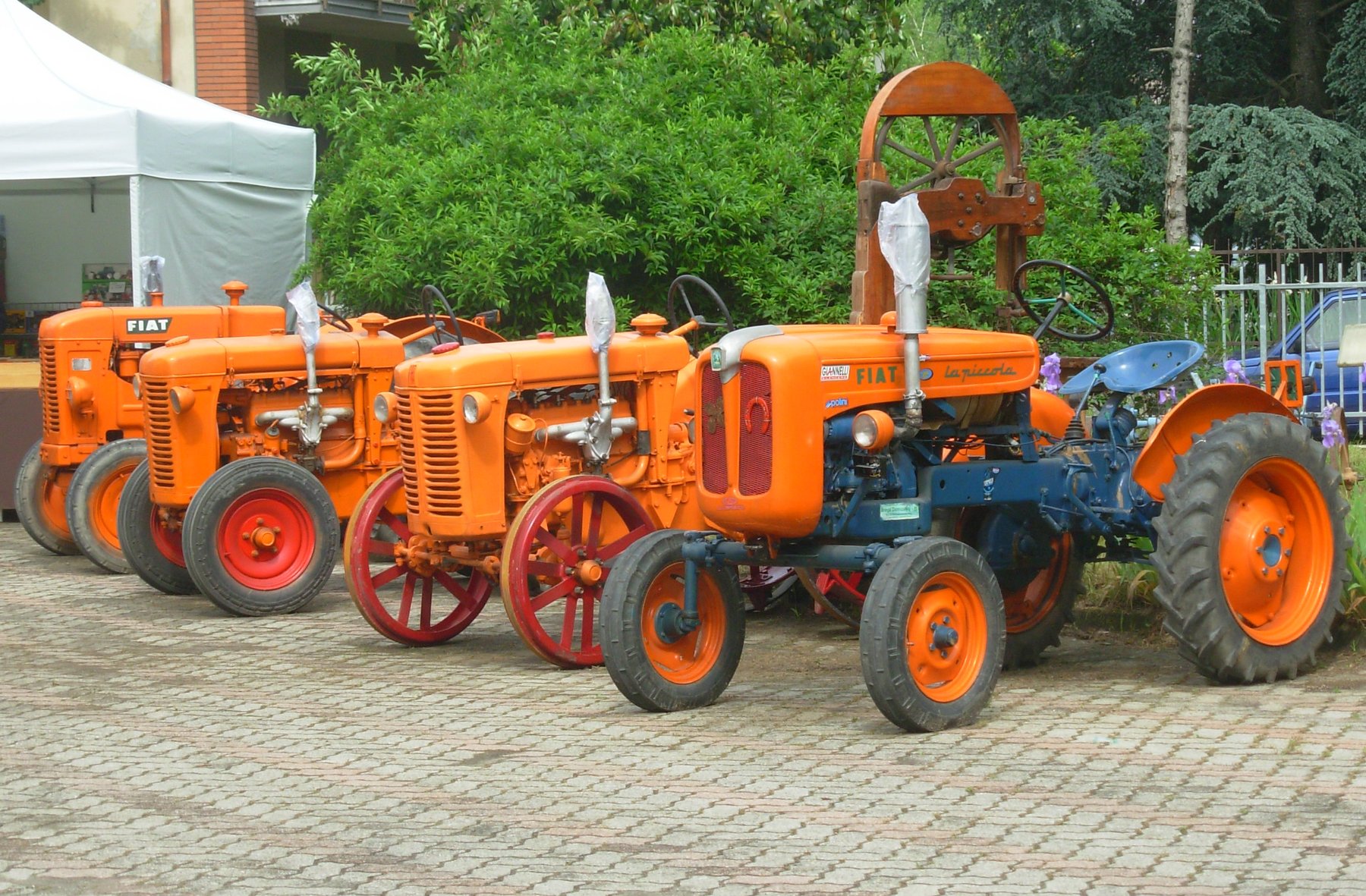

Fiat Trattori 715 (DT)
Lata produkcji: 1966–1969 · Seria: Diamant-Serie
Dane techniczne
| Construction | Blockbauweise mit Hilfsrahmen |
| Cooling | Wasserkühlung |
| Cylinders | 4 |
| Displacement cm3 | 4397 cm3 |
| Drive type | Heck- und Allradantrieb |
| Fuel | Diesel |
| Gearbox | 14 V/4 R |
| Ground clearance mm | 460 mm |
| Height mm | 1529 mm |
| Length mm | 3730 mm |
| Power km | 67 KM |
| Power kw | 49.3 kW |
| Rated rpm | 1.900/2.000 obr./min |
| Tires front | 7.50-20 ASF (DT: 11.2-24 AS) |
| Tires rear | 13.6-38 AS (DT: 16.9-34 AS) |
| Top speed kmh | 24 km/h |
| Weight kg | 2880 kg |
| Wheelbase mm | 2200 mm |
| Width mm | 1960 mm |
Inne modele tej serii
Źródła: [1]
