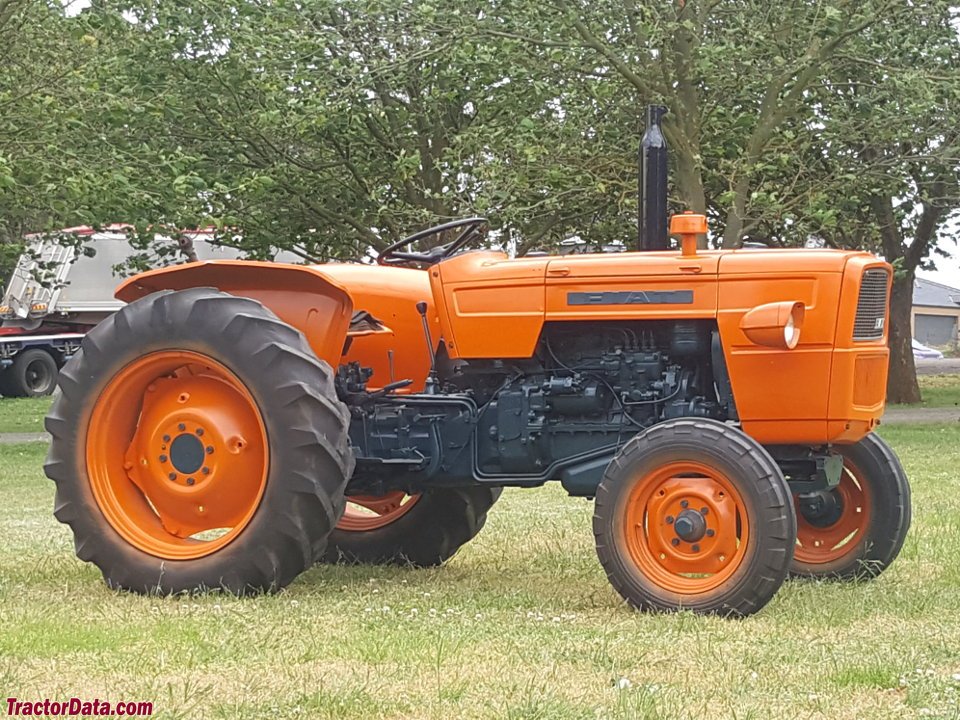

Fiat Trattori 415 (DT)

Built: 1963–1968 · Series: Diamant-Serie

More machines from model year 1963

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 415 (DT) from Fiat Trattori is part of the Diamant series. Production: 1963–1968. The engine delivers 45 hp (33.1 kW), has 4 cylinders, with a displacement of 2,270 cm³. Torque is 137 Nm. Rated speed is 2,500 rpm. The machine is 3,040 mm long, 1,625 mm wide and 1,870 mm high. The unladen weight is 1,590 kg. The wheelbase measures 1,925 mm. Ground clearance is 480 mm. Top speed is 25 km/h. Transmission: 6 V/2 R or 9 V/3 R. The engine is water-cooled. Tyres: front 6.00-16 ASF (DT: 7.50-20 AS), rear 12.4-28 AS. The fuel is diesel. The bore measures 85 mm. The stroke is 100 mm. The compression ratio is 21.5:1. Maximum torque is reached at 1,580 rpm. Construction: unit construction (no separate frame). The Diamant-Serie series covers 4 models. Rated output within it ranges from 22 to 67 hp; the 415 (DT) sits in the middle of that range with 45 hp. Its immediate neighbours are the 215 (DT) below it with 22 hp and the 615 (DT) above it with 65 hp. Unladen weight within it ranges from 970 to 2,880 kg; here the 415 (DT) sits in the lower part of that range with 1,590 kg. 99 Fiat Trattori models across 9 series are on record.

Fiat Trattori Diamant series – Italian classics of the 1960s: twin- to four-cylinder diesels at 1,135 to 4,397 cc, 16.2 to 49.3 kW, types 215, 415, 615 and 715 (DT)

The Diamant series brought together at Fiat Trattori in Turin during the 1960s a model line from small tractor to mid-range, graded through the types 215, 415, 615 and 715. The number denotes the ascending power class, and the DT suffix the four-wheel-drive version (Doppia Trazione); the base types without DT were rear-wheel drive only. Fiat built at this time both in Turin and at its agricultural machinery site in Modena, covering with the Diamant series a wide field from small vineyard tractors to mid-power field tractors.

Read on 3 more paragraphs

The register lists 4 versions with 16.2 to 49.3 kW from twin- to four-cylinders of 1,135 to 4,397 cc displacement at 1,900 to 2,500 rpm; torque ranges from 63 to 260 Nm. Unladen weights lie between 970 and 2,880 kg, lengths between 2,601 and 3,730 mm, widths between 1,230 and 1,960 mm, and heights between 1,311 and 1,870 mm.

With its wide spread of power and dimensions, the Diamant series covered both smallholdings and special crops as well as larger arable farms, competing directly with the contemporaneous models from Same, Lamborghini and Landini, likewise from northern Italy.

On a used purchase of an older Diamant type, check corrosion on sheet metal and steering knuckles, the condition of the clutch and mechanical gearbox, and on DT four-wheel-drive versions the front-axle drive; parts for the Italian four-cylinders, less so for the twin-cylinders, are usually still obtainable through specialist dealers.

Sources: SpecCodex register, model data: Fiat Trattori Diamant-Serie

Technical data

Engine

Fuel	dieselcorrect
Power	45 hp (33.1 kW)correct
Rated speed	2,500 rpmcorrect
Torque	137 Nmcorrect
Speed at max. torque	1,580 rpmcorrect
Cylinders	4correct
Displacement	2,270 cm³correct
Bore	85 mmcorrect
Stroke	100 mmcorrect
Compression ratio	21.5correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,040 mmcorrect
Width	1,625 mmcorrect
Height	1,870 mmcorrect
Wheelbase	1,925 mmcorrect
Ground clearance	480 mmcorrect
Unladen weight	1,590 kgcorrect

Drivetrain and chassis

Drive	rear- or four-wheel drivecorrect
Gearbox	6 V/2 R or 9 V/3 Rcorrect
Front tyres	6.00-16 ASF (DT: 7.50-20 AS)correct
Rear tyres	12.4-28 AScorrect
Top speed	25 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 20.8 kW/t (33 kW / 1.6 t)

Power class: Universal (40–100 hp)

Stronger than 29% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Fiat Trattori 415 (DT) have?

The Fiat Trattori 415 (DT) delivers 45 hp.

How much does the Fiat Trattori 415 (DT) weigh?

The unladen weight is 1,590 kg.

What engine does the Fiat Trattori 415 (DT) have?

4 cylinders, 2,270 cm³ displacement, Diesel.

How fast does the Fiat Trattori 415 (DT) go?

Top speed is 25 km/h.

What are the dimensions of the Fiat Trattori 415 (DT)?

3,040 mm × 1,625 mm × 1,870 mm.

When was the Fiat Trattori 415 (DT) built?

Production years: 1963–1968.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
