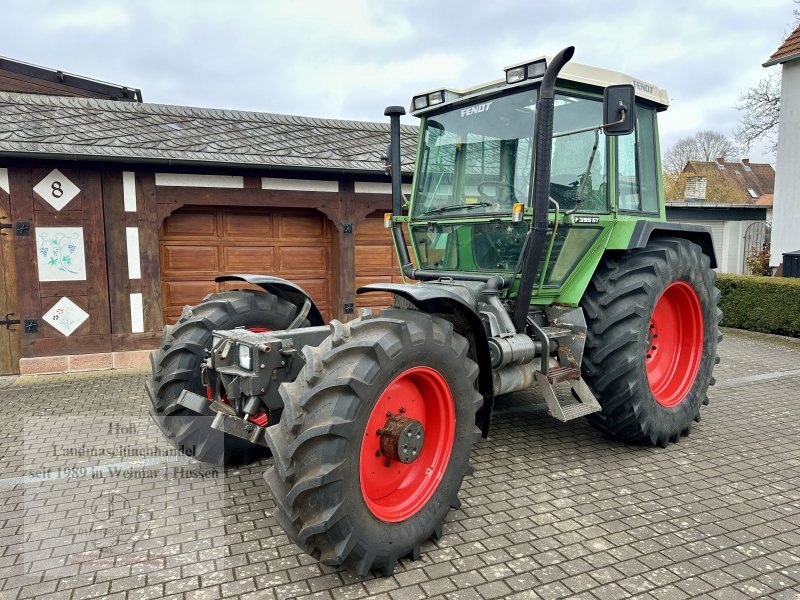

Fendt F 390 GT
Built: 1989–1995 · Series: GT
More machines from model year 1989
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fendt GT – Implement Carrier From 1957 to the 1990s: one- to six-cylinder diesels with 8.8 to 74 kW (12 to 100 hp), 905 to 6,128 cm³ displacement, air-cooled
The GT series (Geräteträger, or implement carrier) complemented Fendt's conventional field tractors with vehicles offering a central mounting point for implements between the axles. The first model, the F 12 GT, appeared in 1957, and the last recorded model, the F 390 GT, was built until 1995. According to the register, engine output ranges from 8.8 to 74 kW, with models rated in horsepower from 12 to 100 hp, using one- to six-cylinder engines with displacement from 905 to 6,128 cm³.
Read on 3 more paragraphs
Recorded operating weight runs from 1,200 to 4,900 kg, wheelbase from 1,990 to 3,020 mm, and top speed of the listed models spans 19.7 to 40 km/h. The central implement position gave a clear view of the working attachment and made the GT series suitable for row crops such as vineyards, hop yards and vegetables, as well as municipal work.
Over its long production run the series changed considerably, from early one- and two-cylinder models to larger turbocharged six-cylinder variants. Buyers of a used GT should check the condition of the central mounting frame and hydraulic connections, since these varied depending on the attached implement.
Implement carriers such as the GT series usually have several PTO and hydraulic connections at the front, middle and rear, so implements can be mounted at whichever position suits the task; this multiple fitment sets them apart from conventional field tractors with only a rear PTO. For the three-point hitch, the GT series covered categories I and II under ISO 730 depending on power.
Sources: SpecCodex register, model data: Fendt GT, Fendt
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 100 hp (74 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 369 Nmcorrect |
| Speed at max. torque | 1,600 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,128 cm³correct |
| Bore | 102 mmcorrect |
| Stroke | 125 mmcorrect |
| Compression ratio | 18correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 4,716 mmcorrect |
|---|---|
| Width | 2,130 mmcorrect |
| Height | 2,690 mmcorrect |
| Wheelbase | 2,816 mmcorrect |
| Ground clearance | 469 mmcorrect |
| Unladen weight | 4,900 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 21V/6Rcorrect |
| Front tyres | 14.9 R 26correct |
| Rear tyres | 18.4 R 38correct |
| Top speed | 38.53 km/hcorrect |
Working data
| Fuel tank capacity | 160 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 315correct |
Other data
| Linkage category | Cat IIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 15.1 kW/t (74 kW / 4.9 t)
Power class: Universal (40–100 hp)
Stronger than 66% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt F 390 GT have?
The Fendt F 390 GT delivers 100 hp.
How much does the Fendt F 390 GT weigh?
The unladen weight is 4,900 kg.
What engine does the Fendt F 390 GT have?
6 cylinders, 6,128 cm³ displacement, Diesel.
How fast does the Fendt F 390 GT go?
Top speed is 38.5 km/h.
What are the dimensions of the Fendt F 390 GT?
4,716 mm × 2,130 mm × 2,690 mm.
When was the Fendt F 390 GT built?
Production years: 1989–1995.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 28 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
