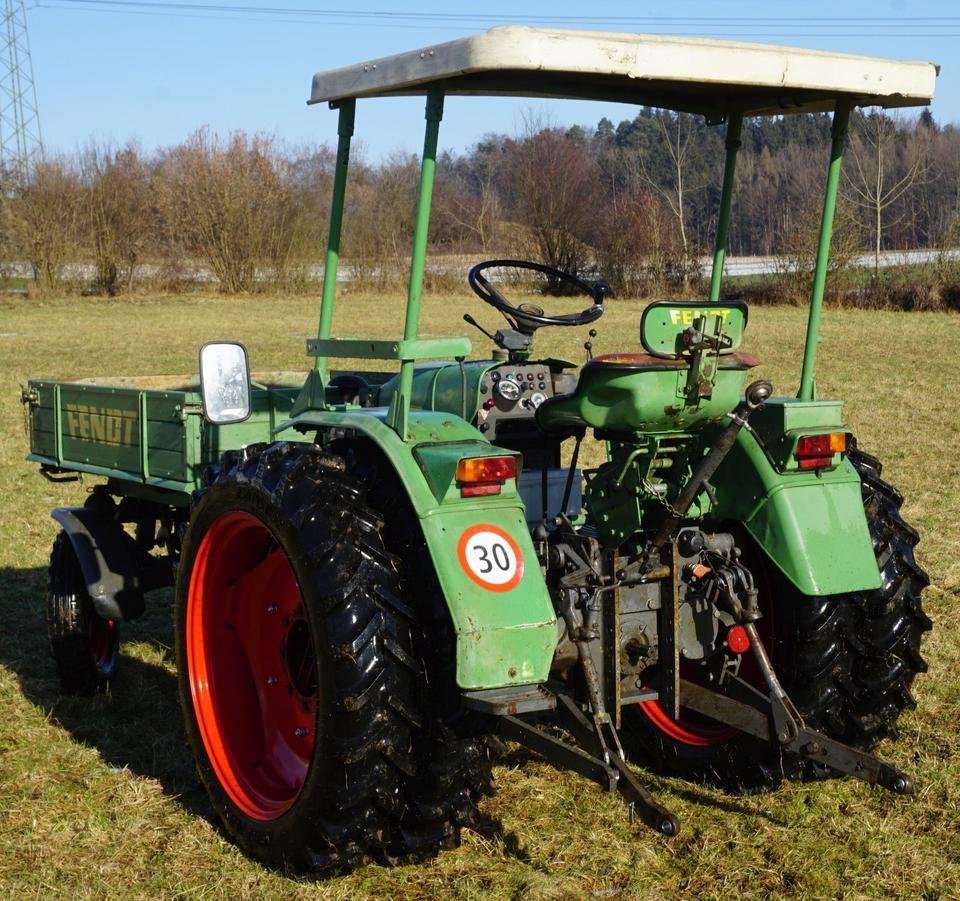

Fendt F 231 GT, (GTS, GTW)
Built: 1967–1993 · Series: GT
More machines from model year 1967
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fendt GT – Implement Carrier From 1957 to the 1990s: one- to six-cylinder diesels with 8.8 to 74 kW (12 to 100 hp), 905 to 6,128 cm³ displacement, air-cooled
The GT series (Geräteträger, or implement carrier) complemented Fendt's conventional field tractors with vehicles offering a central mounting point for implements between the axles. The first model, the F 12 GT, appeared in 1957, and the last recorded model, the F 390 GT, was built until 1995. According to the register, engine output ranges from 8.8 to 74 kW, with models rated in horsepower from 12 to 100 hp, using one- to six-cylinder engines with displacement from 905 to 6,128 cm³.
Read on 3 more paragraphs
Recorded operating weight runs from 1,200 to 4,900 kg, wheelbase from 1,990 to 3,020 mm, and top speed of the listed models spans 19.7 to 40 km/h. The central implement position gave a clear view of the working attachment and made the GT series suitable for row crops such as vineyards, hop yards and vegetables, as well as municipal work.
Over its long production run the series changed considerably, from early one- and two-cylinder models to larger turbocharged six-cylinder variants. Buyers of a used GT should check the condition of the central mounting frame and hydraulic connections, since these varied depending on the attached implement.
Implement carriers such as the GT series usually have several PTO and hydraulic connections at the front, middle and rear, so implements can be mounted at whichever position suits the task; this multiple fitment sets them apart from conventional field tractors with only a rear PTO. For the three-point hitch, the GT series covered categories I and II under ISO 730 depending on power.
Sources: SpecCodex register, model data: Fendt GT, Fendt
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 32 hp (23.4 kW)correct |
| Rated speed | 1,950 rpmcorrect |
| Cylinders | 3correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,780 mmcorrect |
|---|---|
| Width | 1,530 mmcorrect |
| Height | 1,637 mmcorrect |
| Wheelbase | 2,410 mmcorrect |
| Ground clearance | 380 mmcorrect |
| Unladen weight | 1,640 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 8/4-Getriebe, 16/8correct |
| Front tyres | 5.50-16, 7.50-16correct |
| Rear tyres | 9-32, 10-28correct |
| Top speed | 20 km/hcorrect |
Origin and approval
| Units built | 14191 (bis 1978), 4591 (1978-1991), 251 (1991-1993); (F 2correct |
|---|
Where this model stands
Power-to-weight ratio: 14.3 kW/t (23 kW / 1.6 t)
Power class: Compact (< 40 hp)
Stronger than 18% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt F 231 GT, (GTS, GTW) have?
The Fendt F 231 GT, (GTS, GTW) delivers 32 hp.
How much does the Fendt F 231 GT, (GTS, GTW) weigh?
The unladen weight is 1,640 kg.
What engine does the Fendt F 231 GT, (GTS, GTW) have?
3 cylinders, Diesel.
How fast does the Fendt F 231 GT, (GTS, GTW) go?
Top speed is 20 km/h.
What are the dimensions of the Fendt F 231 GT, (GTS, GTW)?
3,780 mm × 1,530 mm × 1,637 mm.
When was the Fendt F 231 GT, (GTS, GTW) built?
Production years: 1967–1993.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 18 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
