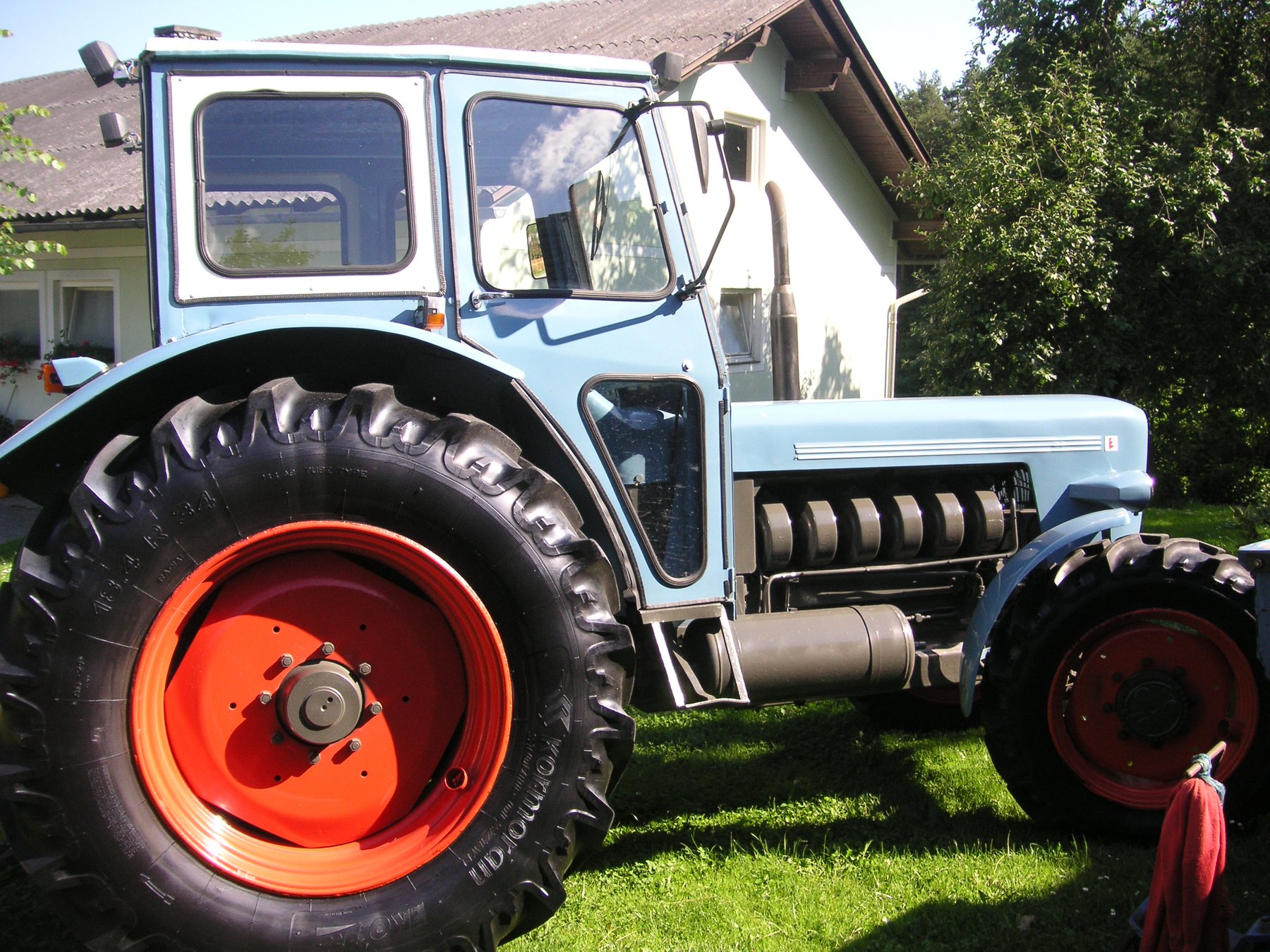

Eicher 3014 Wotan II A
Built: 1968–1976 · Series: 3000
More machines from model year 1968
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Eicher 3000 – mid-range line from Forstern near Munich: 3014 Wotan II A to 3453, two- to six-cylinder diesels rated 26–70 kW, 1,935–4,140 kg
The Eicher 3000 brings together mid-range series from the Bavarian maker Eicher of Forstern near Munich, whose four-digit type numbers begin with the digit 3. Eicher had built tractors since the 1930s and gave some series their own names, such as Wotan, as seen on the 3014 Wotan II A; the AS and S suffixes on the 3048 mark different equipment grades of the same base version. From the 3014 as the smallest to the 3453 as the largest model, the line spans two- to six-cylinder engines.
Read on 3 more paragraphs
The register lists 6 versions rated at 26 to 69.6 kW (35 to 65 hp) from two- to six-cylinder engines of 1,963 to 5,890 cm³, torque of 365 Nm, kerb weights of 1,935 to 4,140 kg, and a length of 3,220 to 4,080 mm, a width of 1,540 to 2,090 mm and a height of 1,725 to 2,480 mm, at speeds of 2,000 to 2,150 rpm.
The Eicher 3000 tractors were standard workhorses for medium-sized farms in Bavaria and southern Germany, competing on power and price with Fendt, Deutz and the large international makes; after Massey Ferguson took over the tractor division, independent production under the Eicher name in Germany ended.
On these older tractors, check engine and radiator condition, the clutch and mechanical gearbox, the hydraulics with lift, and corrosion on the wings, bonnet and frame; spares are available through specialist Eicher parts dealers and vintage farm-machinery markets, and a test drive checking steering and brakes is advisable before buying.
Sources: SpecCodex register, model data: Eicher 3000
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 95 hp (69.6 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Torque | 365 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 5,890 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 4,080 mmcorrect |
|---|---|
| Width | 2,090 mmcorrect |
| Height | 1,725 mmcorrect |
| Wheelbase | 2,698 mmcorrect |
| Ground clearance | 360 mmcorrect |
| Unladen weight | 4,140 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 16/7- oder 20/9-Getriebecorrect |
| Front tyres | 11.2-24correct |
| Rear tyres | 18.4-34, 16.9-34correct |
| Top speed | 28.5 km/hcorrect |
Working data
| Fuel tank capacity | 95 lcorrect |
|---|
Origin and approval
| Construction | frameless unit constructioncorrect |
|---|---|
| Units built | 2,697correct |
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 16.8 kW/t (70 kW / 4.1 t)
Power class: Universal (40–100 hp)
Stronger than 63% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Eicher 3014 Wotan II A have?
The Eicher 3014 Wotan II A delivers 95 hp.
How much does the Eicher 3014 Wotan II A weigh?
The unladen weight is 4,140 kg.
What engine does the Eicher 3014 Wotan II A have?
6 cylinders, 5,890 cm³ displacement, Diesel.
How fast does the Eicher 3014 Wotan II A go?
Top speed is 28.5 km/h.
What are the dimensions of the Eicher 3014 Wotan II A?
4,080 mm × 2,090 mm × 1,725 mm.
When was the Eicher 3014 Wotan II A built?
Production years: 1968–1976.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
