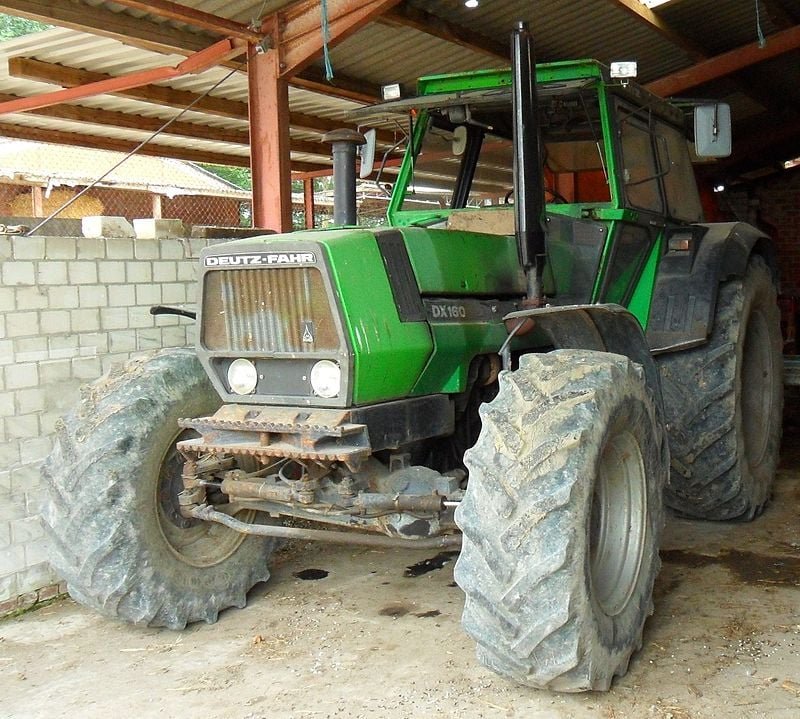

Deutz-Fahr DX 160
Built: 1978–1984 · Series: DX
More machines from model year 1978
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr DX – Core Tractor Series From 1978 to the 1980s: three- to six-cylinder diesels with 33.7 to 162 kW (46 to 220 hp), 2,826 to 9,572 cm³ displacement, air-cooled
The DX series formed the core of the Deutz-Fahr range from 1978 into the 1980s and covered a wide power spectrum. According to the register, output ranges from 33.7 to 162 kW, with models rated in horsepower spanning 46 to 220 hp, using three- to six-cylinder engines with displacement from 2,826 to 9,572 cm³.
Read on 3 more paragraphs
Recorded operating weight runs from 1,570 to 9,250 kg, wheelbase from 1,790 to 3,012 mm, and top speed of the listed models spans 22 to 30 km/h. Large models such as the DX 250 marked the top of the Deutz-Fahr range at the time.
The DX series was later succeeded in the top-tier segment by the AgroStar and Agrotron series, while smaller DX models ran alongside the DX 3 series. For a used DX tractor, the exact power class matters most, as engine and chassis differ considerably within the series.
Across such a power span, mounting technology also changed within the DX range: smaller models used a category I or II three-point hitch, while the most powerful versions above 110 kW already used category III under ISO 730, with correspondingly larger pins. The two-speed PTO with 540 and 1,000 rpm allowed both light and power-hungry implements to be run on the same series. Between category II and III as well, older implements can still be used with reducer bushings, provided the tractor's lift capacity is not exceeded.
Sources: SpecCodex register, model data: Deutz-Fahr DX, Deutz-Fahr
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 150 hp (110.4 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 533 Nmcorrect |
| Speed at max. torque | 1,602 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,128 cm³correct |
| Bore | 102 mmcorrect |
| Stroke | 125 mmcorrect |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 4,710 mmcorrect |
|---|---|
| Width | 2,370 mmcorrect |
| Height | 2,730 mmcorrect |
| Wheelbase | 2,631 mmcorrect |
| Ground clearance | 605 mmcorrect |
| Unladen weight | 5,400 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 24V/8Rcorrect |
| Front tyres | 11.00-16 ASF (A: 18.4-26 AS)correct |
| Rear tyres | 20.8-38 AScorrect |
| Top speed | 25 km/hcorrect |
Working data
| Fuel tank capacity | 155 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 62correct |
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 920 rpmcorrect |
Where this model stands
Power-to-weight ratio: 20.4 kW/t (110 kW / 5.4 t)
Power class: Large (100–180 hp)
Stronger than 84% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz-Fahr DX 160 have?
The Deutz-Fahr DX 160 delivers 150 hp.
How much does the Deutz-Fahr DX 160 weigh?
The unladen weight is 5,400 kg.
What engine does the Deutz-Fahr DX 160 have?
6 cylinders, 6,128 cm³ displacement, Diesel.
How fast does the Deutz-Fahr DX 160 go?
Top speed is 25 km/h.
What are the dimensions of the Deutz-Fahr DX 160?
4,710 mm × 2,370 mm × 2,730 mm.
When was the Deutz-Fahr DX 160 built?
Production years: 1978–1984.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
