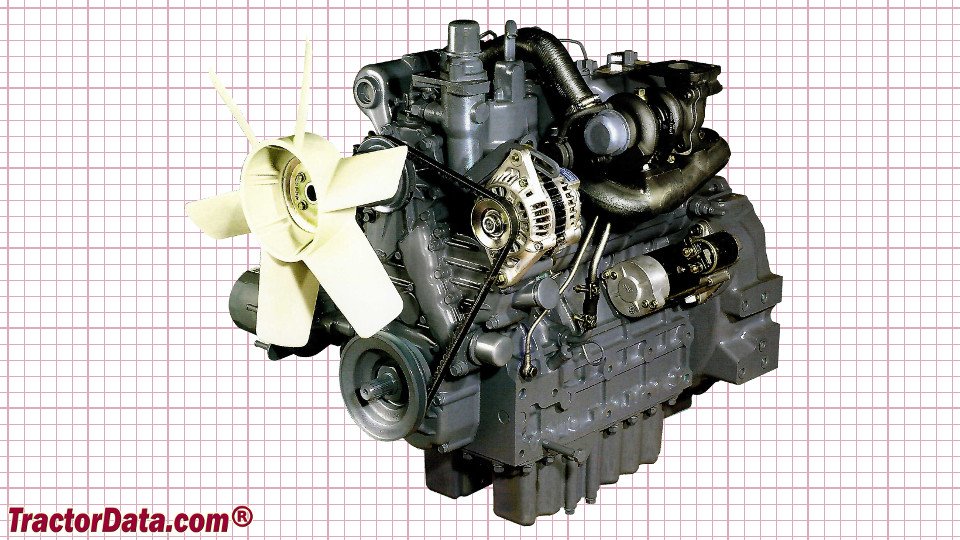

Daedong 3F183T

Built: 2013-2019 · Series: Other models

Source: https://storage.googleapis.com/dowanfbiasdbte/daedong-engine

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 3F183T comes from Daedong. Production: 2013-2019. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 38 kW. The engine is turbocharged. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. Charging is by a wastegate turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Daedong range ranges from 9 to 85 kW; the 3F183T sits in the lower part of that range with 38 kW. Its immediate neighbours are the 4FTG below it with 37 kW and the 4A220T above it with 40 kW. 123 Daedong models across 8 series are on record. The model is listed under Non-road diesel engines. 26 verified figures from 1 source are on file.

Technical data

Engine

Engine code3820/2600correct
Engine familyGDCLL01.8F7Tcorrect
Engine familiesDDCLL01.8F7T; EDCLL01.8F7Tcorrect
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output38 kWcorrect
Power band37<=kW<56correct
Rated speed2,600 rpmcorrect
Maximum torque166 N·mcorrect
Speed at max. torque1,700 rpmcorrect
Cylinders3correct
Cylinder layoutin linecorrect
Bore87 mmcorrect
Stroke102.4 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typewastegate turbochargercorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

Version3820/2600correct
Built from2013correct
Built to2014correct
Model year from2013correct
Model year to2019correct
Sales regionbothcorrect

Frequently asked questions

How much power does the Daedong 3F183T have?

The Daedong 3F183T delivers 38 kW.

When was the Daedong 3F183T built?

Production years: 2013-2019.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 26 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
