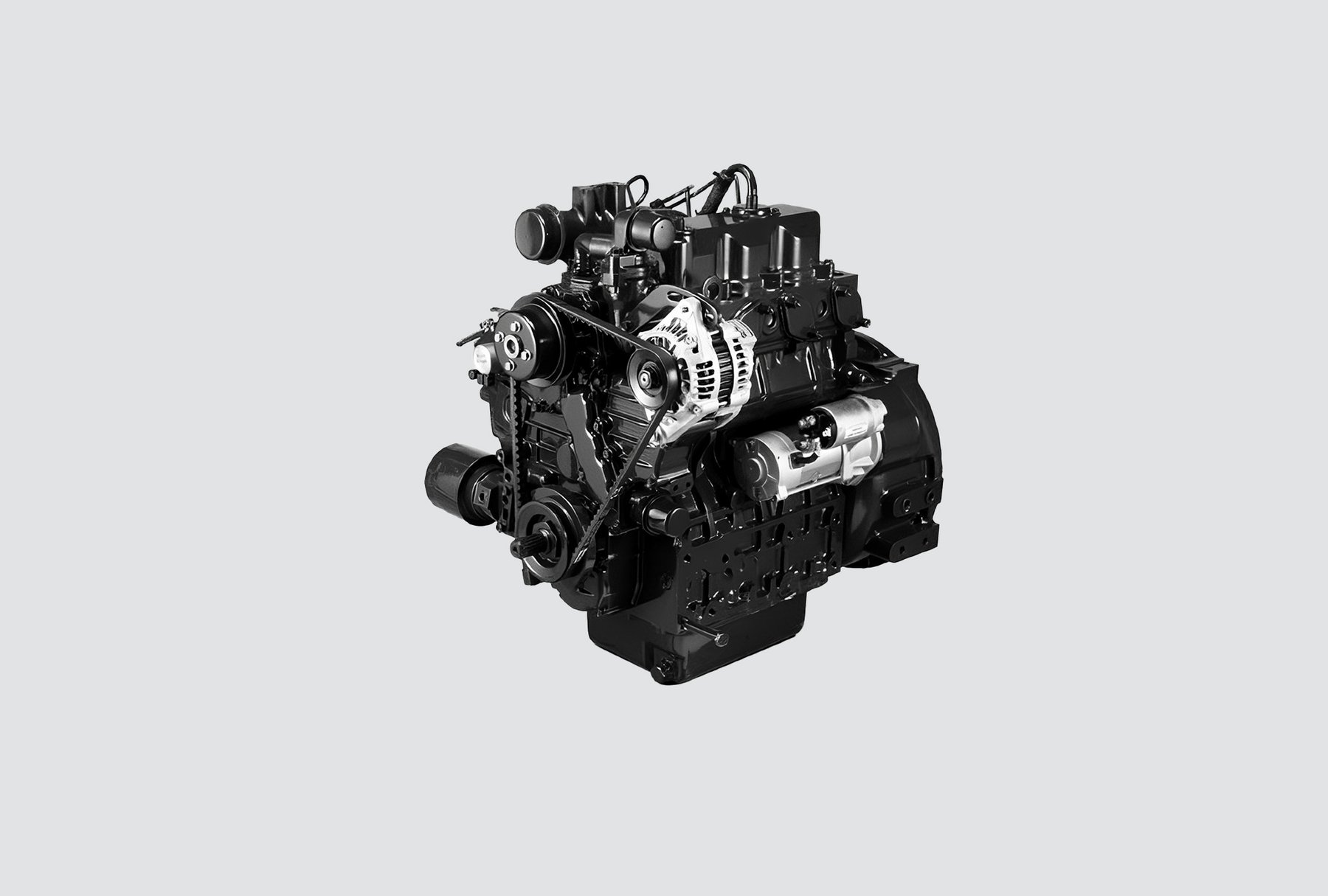

Daedong 3C093
Built: 2011-2012 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Technical data
Engine
| Engine code | 3C093LWScorrect |
|---|---|
| Engine family | BDCLL.927D75correct |
| Engine families | BDCLL.927D75; CDCLL.927D75correct |
| Fuel | 300-500 ppm Low Sulfur Diesel; 7-15 ppm Ultra Low Sulfur Dieselcorrect |
| Rated output | 15 kWcorrect |
| Power band | 8<=kW<19correct |
| Rated speed | 2,800 rpmcorrect |
| Maximum torque | 58.8 N·mcorrect |
| Speed at max. torque | 1,900 rpmcorrect |
| Cylinders | 3correct |
| Cylinder layout | in linecorrect |
| Bore | 75 mmcorrect |
| Stroke | 70 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | indirect injectioncorrect |
| Aspiration | naturally aspiratedcorrect |
| Emissions stage | Tier 4 (Final or Phase In)correct |
Origin and approval
| Version | 3C093LWScorrect |
|---|---|
| Built from | 2011correct |
| Built to | 2012correct |
| Model year from | 2011correct |
| Model year to | 2012correct |
| Sales region | bothcorrect |
Frequently asked questions
How much power does the Daedong 3C093 have?
The Daedong 3C093 delivers 15 kW.
When was the Daedong 3C093 built?
Production years: 2011-2012.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
