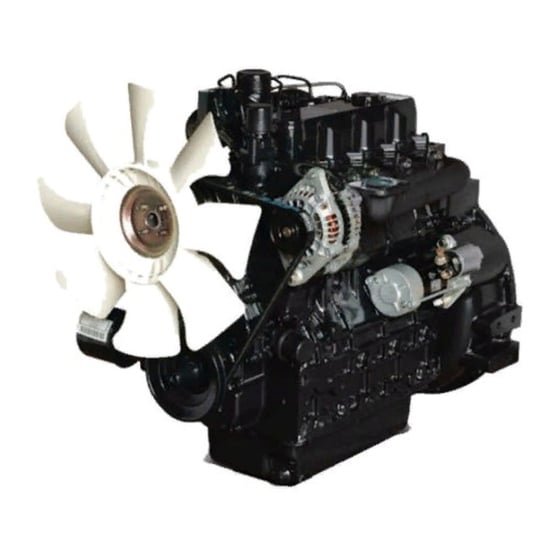

Daedong 3A165LFG

Built: 2016-2026 · Series: Other models

More machines from model year 2016

Source: https://www.lectura-specs.com/en/model/components/engines-da

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 3A165LFG comes from Daedong. Production: 2016-2026. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 18 kW. The engine is naturally aspirated. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through indirect injection. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Daedong range ranges from 9 to 85 kW; the 3A165LFG sits at the bottom of that range with 18 kW. Its immediate neighbours are the 3C100G below it with 16 kW and the 3HG4 above it with 22 kW. 123 Daedong models across 8 series are on record. The model is listed under Non-road diesel engines. 25 verified figures from 1 source are on file.

Technical data

Engine

Engine codeSL17-LEG01correct
Engine familyLDCLL01.6D7Gcorrect
Engine familiesSDCLL01.6D7G; LDCLL01.6D7G; TDCLL01.6D7G; HDCLL01.6D7G; GDCLL01.6D7G; MDCLL01.6D7G; NDCLL01.6D7G; JDCLL01.6D7G; KDCLL01.6D7G; PDCLL01.6D7G; RDCLL01.6D7Gcorrect
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output18 kWcorrect
Power band8<=kW<19correct
Rated speed1,800 rpmcorrect
Maximum torque95.4 N·mcorrect
Speed at max. torque1,800 rpmcorrect
Cylinders3correct
Cylinder layoutin linecorrect
Bore87 mmcorrect
Stroke92.4 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectionindirect injectioncorrect
Aspirationnaturally aspiratedcorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

VersionSL17-LEG01correct
Built from2016correct
Built to2026correct
Model year from2016correct
Model year to2026correct
Sales regionbothcorrect

Frequently asked questions

How much power does the Daedong 3A165LFG have?

The Daedong 3A165LFG delivers 18 kW.

When was the Daedong 3A165LFG built?

Production years: 2016-2026.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
