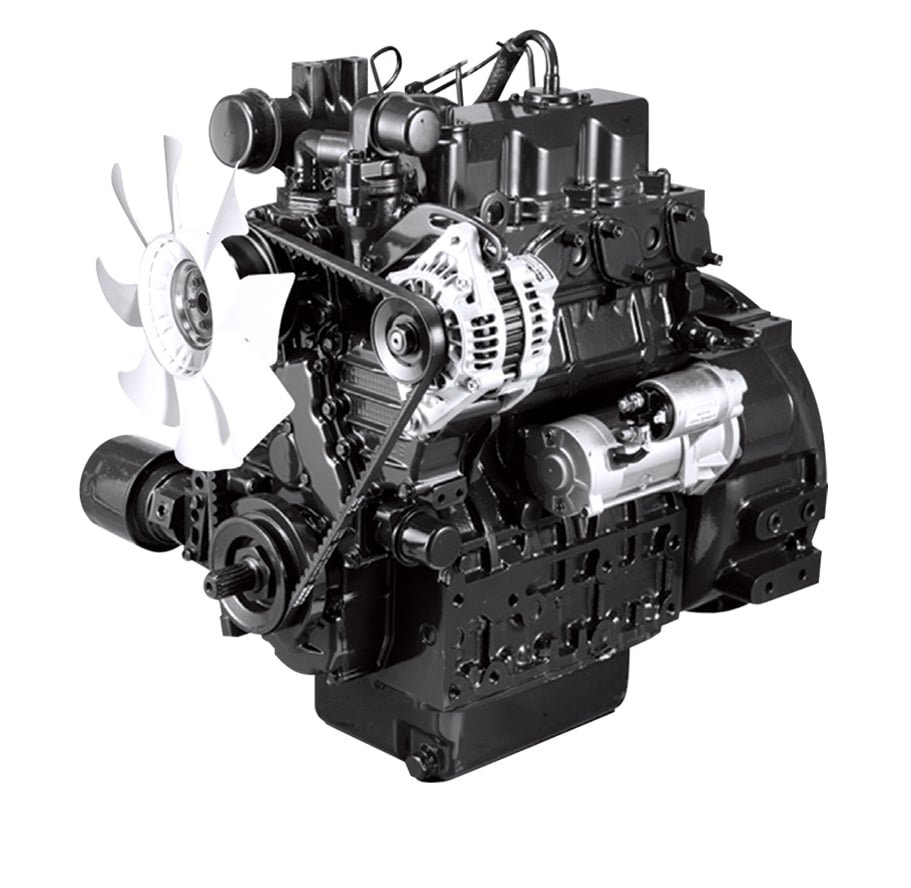

Daedong 3A165G
Built: 2012-2023 · Series: Other models
More machines from model year 2012
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Daedong – further nonroad diesel engines: the collective page for small and medium engines outside the named series, three- and four-cylinder units from 9 to 85 kW, model years 2011 to 2026
Daedong is a South Korean agricultural machinery manufacturer based in Daegu, whose tractors are sold internationally under the Kioti brand; the associated diesel engines power both its own machines and third-party equipment. This page gathers the engines the register could not assign to any named main series, from the three-cylinder 3A and 3C units to the four-cylinder 4A series and larger; model designations such as 3A139 or 4A220 combine cylinder count with build size.
Read on 3 more paragraphs
The register lists 37 variants here rated from 9 to 85 kW at 1,500 to 3,600 rpm, three- and four-cylinder engines with a bore of 75 to 103 mm and a stroke of 70 to 115 mm. Maximum torque ranges from 43.5 to 538 Nm at 1,400 to 3,600 rpm, model years from 2011 to 2025 (final model year up to 2026). Tier 4 (Final or Phase-in) forms the majority with 26 variants ahead of Interim Tier 4 with 11; the 37–56 kW and 19–37 kW power categories are the most common with 13 variants each, followed by 8–19 kW with 9 and 56–130 kW with 2.
Engines of this range drive compact tractors, wheel loaders, excavators and generator sets; the span from small three-cylinder to more powerful four-cylinder units covers both Daedong's own agricultural machinery range and OEM applications for other equipment makers it supplies.
When buying used, older indirect-injection models call for a check of glow plugs and cold-start behaviour, while turbocharged variants additionally need boost pressure and turbocharger condition checked; also worth checking are the tightness of crankshaft seals and the oil pan, and, for agricultural use, the condition of the PTO and power take-off. Spare parts run through the Kioti or Daedong dealer network.
Sources: Kennwerte der Modelle Daedong (weitere Nonroad-Dieselmotoren)
Technical data
Engine
| Engine code | 3A165LWG-Ecorrect |
|---|---|
| Engine family | CDCLL02.2D7Gcorrect |
| Engine families | CDCLL02.2D7Gcorrect |
| Fuel | 7-15 ppm Ultra Low Sulfur Dieselcorrect |
| Rated output | 18 kWcorrect |
| Power band | 19<=kW<37correct |
| Rated speed | 1,800 rpmcorrect |
| Maximum torque | 95.4 N·mcorrect |
| Speed at max. torque | 1,800 rpmcorrect |
| Cylinders | 3correct |
| Cylinder layout | in linecorrect |
| Bore | 87 mmcorrect |
| Stroke | 92.4 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | indirect injectioncorrect |
| Aspiration | naturally aspiratedcorrect |
| Emissions stage | Interim Tier 4correct |
Origin and approval
| Version | 3A165LWG-Ecorrect |
|---|---|
| Built from | 2012correct |
| Built to | 2012correct |
| Model year from | 2012correct |
| Model year to | 2023correct |
| Sales region | bothcorrect |
Frequently asked questions
How much power does the Daedong 3A165G have?
The Daedong 3A165G delivers 18 kW.
When was the Daedong 3A165G built?
Production years: 2012-2023.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
