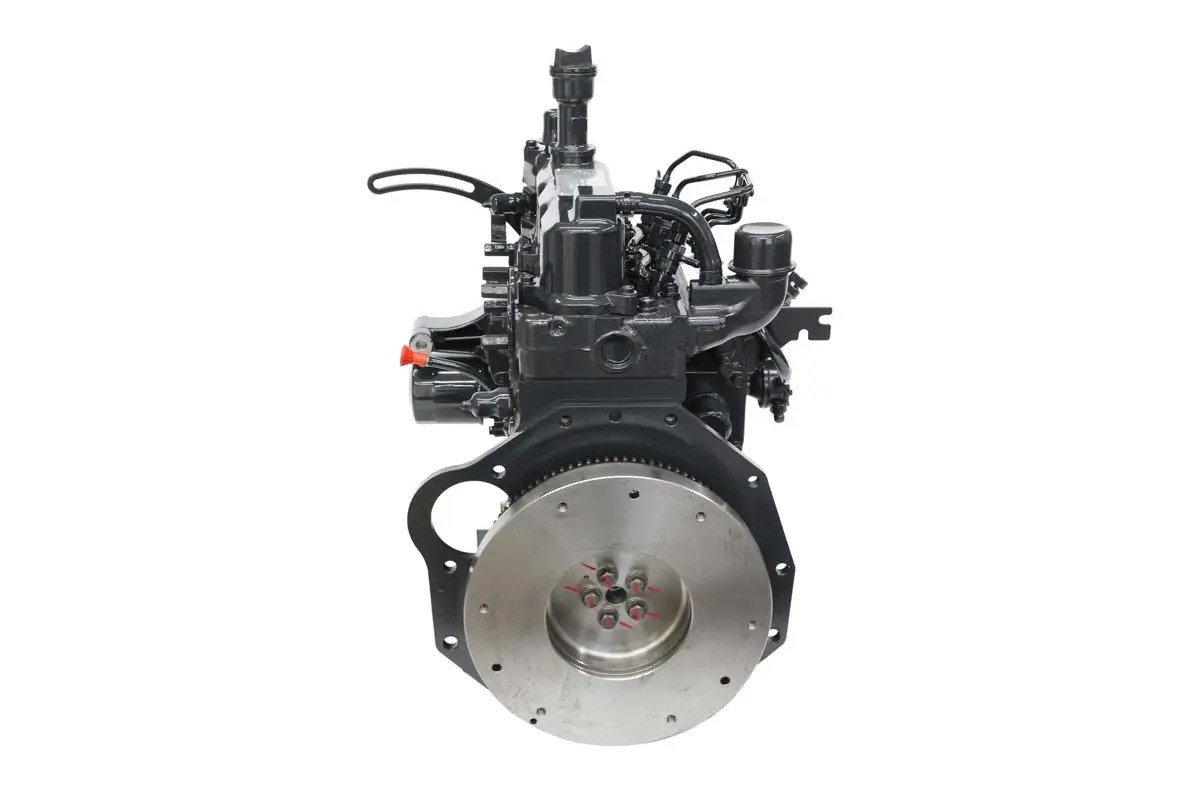

Daedong 3C100

Built: 2011-2026 · Series: Other models

Source: https://www.lectura-specs.com/en/model/components/engines-da

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 3C100 comes from Daedong. Production: 2011-2026. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 18 kW. The engine is naturally aspirated. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through indirect injection. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Daedong range ranges from 9 to 85 kW; the 3C100 sits at the bottom of that range with 18 kW. Its immediate neighbours are the 3C100G below it with 16 kW and the 3HG4 above it with 22 kW. 123 Daedong models across 8 series are on record. The model is listed under Non-road diesel engines. 25 verified figures from 1 source are on file.

Technical data

Engine

Engine code1804-3213correct
Engine familyMDCLL01.0D75correct
Engine familiesBDCLL01.0D75; CDCLL01.0D75correct
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output18 kWcorrect
Power band8<=kW<19correct
Rated speed3,200 rpmcorrect
Maximum torque57 N·mcorrect
Speed at max. torque2,500 rpmcorrect
Cylinders3correct
Cylinder layoutin linecorrect
Bore75 mmcorrect
Stroke76 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectionindirect injectioncorrect
Aspirationnaturally aspiratedcorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

Version1804-3213correct
Built from2011correct
Built to2012correct
Model year from2011correct
Model year to2026correct
Sales regionbothcorrect

Frequently asked questions

How much power does the Daedong 3C100 have?

The Daedong 3C100 delivers 18 kW.

When was the Daedong 3C100 built?

Production years: 2011-2026.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
