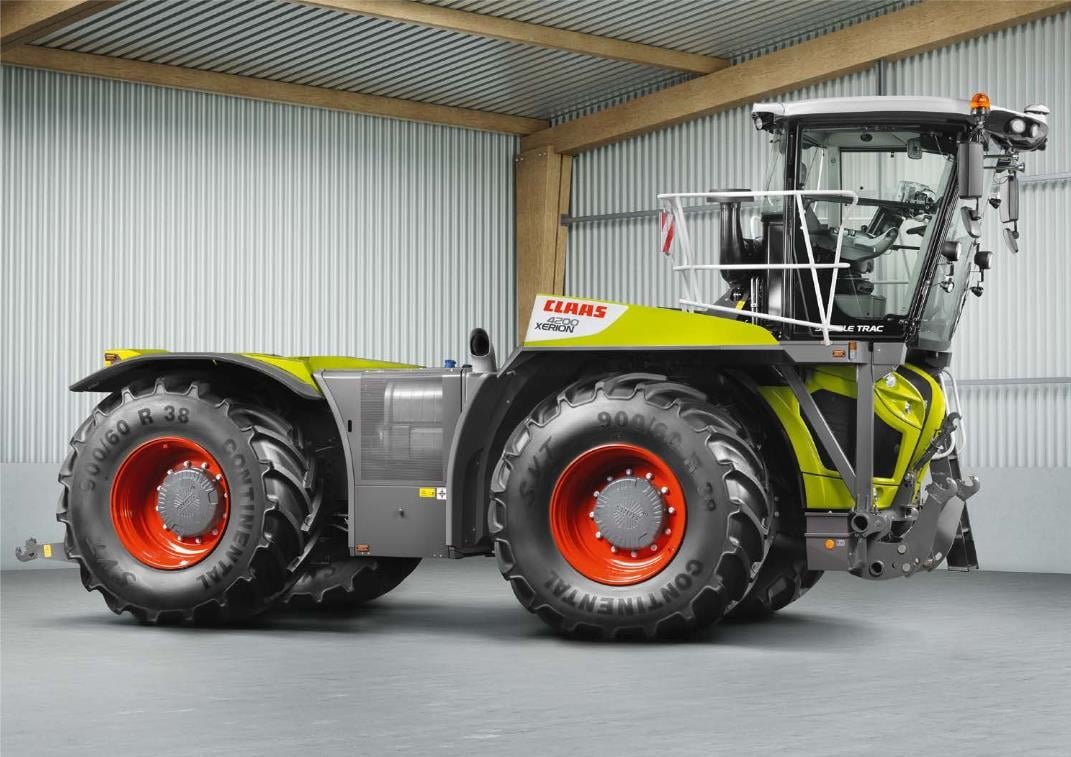

CLAAS Xerion – High-Power Tractor With Rotating Cab Since 1997, with Six-Cylinder Engines, 224 to 380 kW and Operating Weight from 10,200 to 16,570 kg
CLAAS launched the Xerion in 1997 as a standalone large-tractor series. Distinctive features include four equal-size wheels, a cab that rotates 180 degrees, and, on the Saddle Trac version, a centrally mounted cab with mounting points at the front, rear and middle of the vehicle. According to the register, engine output ranges from 224 to 380 kW, with models rated in horsepower spanning 305 to 524 hp.
Read on 3 more paragraphs
The six-cylinder engine displaces between 8,801.5 and 12,809 cm³ depending on model, and PTO output of the recorded models ranges from 380 to 472 hp. Recorded operating weight falls between 10,200 and 16,570 kg, wheelbase between 3,300 and 3,600.2 mm, and top speed is around 50 km/h.
Within the CLAAS range, the Xerion sits above the Axion series as a high-power tractor for operations with heavy draft requirements, such as tillage, slurry tanker transport or contracting work. When buying a used Xerion, it matters to distinguish between Standard, Saddle Trac and Trac VC versions.
With rated outputs from 224 to 380 kW, the Xerion exceeds ISO 730 Category III and, in its most powerful models, reaches Category IV for the rear three-point hitch. Both Caterpillar and Mercedes-Benz, whose engines were fitted depending on model year, remain active engine manufacturers and still supply spare parts for their units.
Sources: SpecCodex register, model data: CLAAS Xerion, CLAAS
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 458 hp (337 kW)correct |
| Rated speed | 1,900 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 10,677 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 7,163 mmcorrect |
|---|---|
| Height | 3,791 mmcorrect |
| Wheelbase | 3,600 mmcorrect |
| Unladen weight | 15,600 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | stufenloses Getriebecorrect |
| Top speed | 50 km/hcorrect |
Where this model stands
Power-to-weight ratio: 21.6 kW/t (337 kW / 15.6 t)
Power class: Heavy (> 180 hp)
Stronger than 99% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the CLAAS Xerion 4000 / 4200 have?
The CLAAS Xerion 4000 / 4200 delivers 458 hp.
How much does the CLAAS Xerion 4000 / 4200 weigh?
The unladen weight is 15,600 kg.
What engine does the CLAAS Xerion 4000 / 4200 have?
6 cylinders, 10,677 cm³ displacement, Diesel.
How fast does the CLAAS Xerion 4000 / 4200 go?
Top speed is 50 km/h.
What are the dimensions of the CLAAS Xerion 4000 / 4200?
7,163 mm × 3,791 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 14 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
