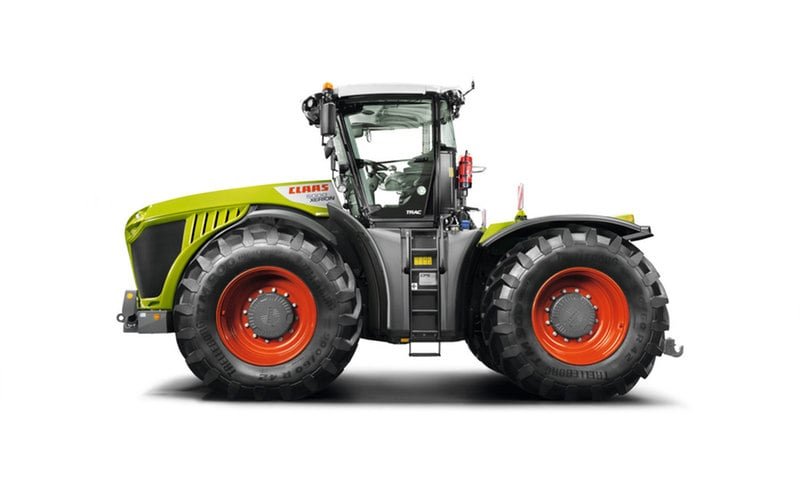

CLAAS XERION 4000 4WD
Series: Xerion
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The CLAAS XERION 4000 is a tractor from the Claas 4WD Tractor series. The six-cylinder engine, displacing 10.6 litres, produces 422 hp (310.1 kW). Rated speed is 1,900 rpm.
Design speed is 50 km/h. It measures 7.59 m in length and 2.98 m in width. Wheelbase is 3.60 m.
Within the range, rated power spans from 74.1 to 517 hp; with 422 hp, the XERION 4000 sits at the top. Directly alongside are the Xerion 3800 TRAC with 379 hp below and the XERION 4500 with 476 hp above.
Technical data
Engine
| Engine make | Mercedescorrect |
|---|---|
| Power | 421.6 hp (310.1 kW)correct |
| Rated speed | 1,900 rpmcorrect |
| Torque | 2,100correct |
| Cylinders | 6correct |
| Displacement | 10,600.8 cm³correct |
Dimensions and weights
| Length | 7,593.1correct |
|---|---|
| Width | 2,980.9correct |
| Wheelbase | 3,600.2correct |
| Ground clearance | 455.2correct |
Drivetrain and chassis
| Gearbox type | hydrostatic transmission-mechanical gearboxcorrect |
|---|---|
| Top speed | 50.1 km/hcorrect |
| System voltage | 24 Vcorrect |
Working data
| Pump flow | 250.2 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 120.4 lcorrect |
| Fuel tank capacity | 900.2 lcorrect |
Origin and approval
| Version | XERION 4000 SADDLE TRACcorrect |
|---|
Frequently asked questions
How much power does the CLAAS XERION 4000 have?
The CLAAS XERION 4000 delivers 422 hp.
What engine does the CLAAS XERION 4000 have?
6 cylinders, 10,601 cm³ displacement.
How fast does the CLAAS XERION 4000 go?
Top speed is 50.1 km/h.
What are the dimensions of the CLAAS XERION 4000?
7,593 mm × 2,981 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 18 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
