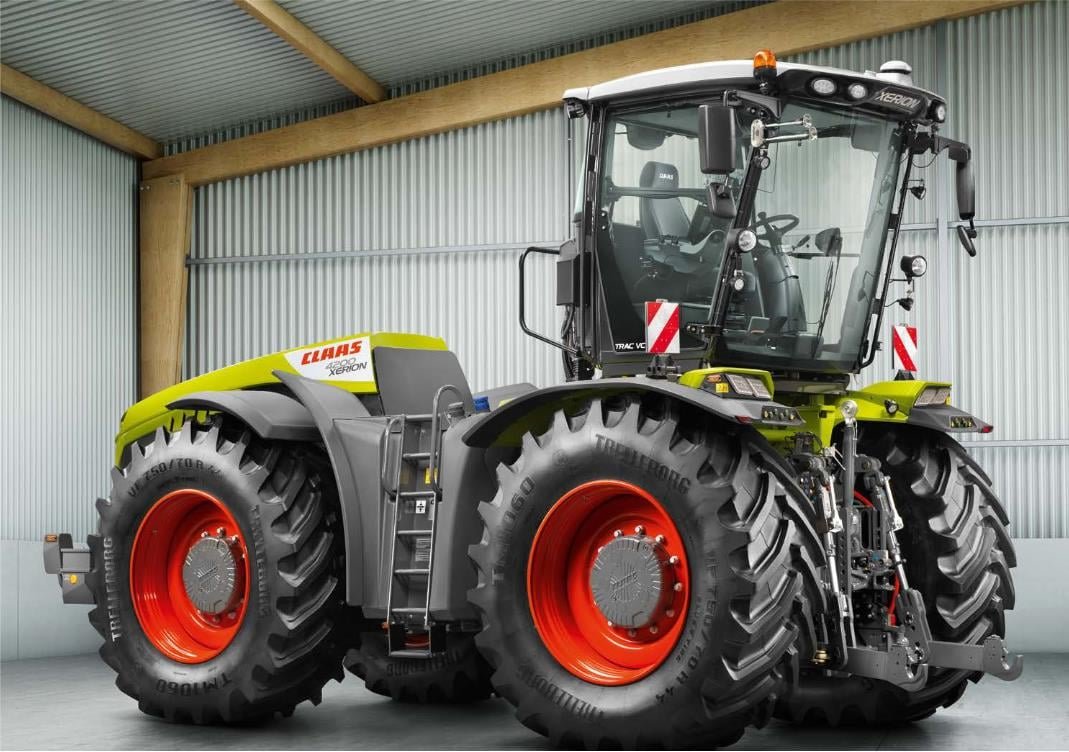

CLAAS XERION 5000 4WD
Series: Xerion
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The CLAAS XERION 5000 is a tractor from the Claas 4WD Tractor series. Power comes from a six-cylinder engine; from 12.8 litres it draws 517 hp (380 kW). Rated speed is 1,900 rpm.
On the road, up to 50 km/h is possible. It measures 7.59 m in length and 2.98 m in width. Wheelbase is 3.60 m.
Within the range, rated power spans from 74.1 to 517 hp; with 517 hp, the XERION 5000 sits at the top. Below it ranks the XERION 4500 with 476 hp.
Technical data
Engine
| Engine make | Mercedescorrect |
|---|---|
| Power | 516.7 hp (380 kW)correct |
| Rated speed | 1,900 rpmcorrect |
| Torque | 2,450.1correct |
| Cylinders | 6correct |
| Displacement | 12,801.6 cm³correct |
Dimensions and weights
| Length | 7,593.1correct |
|---|---|
| Width | 2,980.9correct |
| Wheelbase | 3,600.2correct |
| Ground clearance | 455.2correct |
Drivetrain and chassis
| Gearbox type | hydrostatic transmission-mechanical gearboxcorrect |
|---|---|
| Top speed | 50.1 km/hcorrect |
| System voltage | 24 Vcorrect |
Working data
| Pump flow | 250.2 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 120.4 lcorrect |
| Fuel tank capacity | 900.2 lcorrect |
Frequently asked questions
How much power does the CLAAS XERION 5000 have?
The CLAAS XERION 5000 delivers 517 hp.
What engine does the CLAAS XERION 5000 have?
6 cylinders, 12,802 cm³ displacement.
How fast does the CLAAS XERION 5000 go?
Top speed is 50.1 km/h.
What are the dimensions of the CLAAS XERION 5000?
7,593 mm × 2,981 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 17 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
