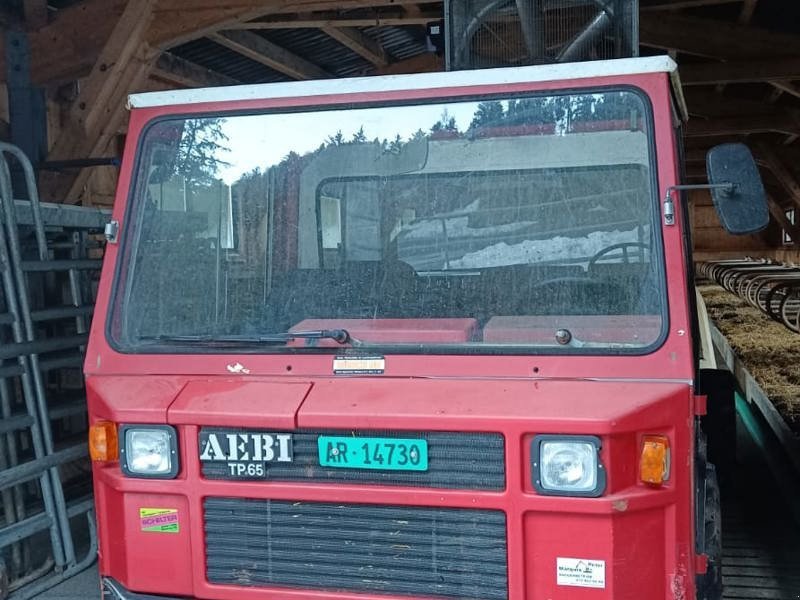

Aebi TP65
Built: 1982 · Series: Transporter
More machines from model year 1982
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Aebi Transporter TP 20 to TP 88 and VT450 Vario – the Swiss mountain transporter from Burgdorf: the number as hp class, all-wheel drive, tipping bed and forage wagon for slopes, 18 to 80 kW
The transporter is the second Swiss invention of mountain farming alongside the motor mower: a low, all-wheel-drive vehicle with cab at the front and tipping bed at the rear that carries hay, manure, timber and livestock over tracks too steep and too narrow for tractor and truck. Aebi of Burgdorf has built transporters since the 1960s, and the TP range in the register is the programme from the 1970s into the 2000s: the number roughly gives the output in hp – TP 20 and TP 25 the small ones with two-cylinder, TP 35 to TP 65 the mid-range, TP 88 the big four-cylinder – S marks an equipment level, TP420 and TP460 the generation of the 2000s, VT450 Vario the transporter with continuously variable drive from the 2010s. The engines came from suppliers, two- to four-cylinders of 1.3 to 3.8 litres.
Read on 3 more paragraphs
The register lists 10 versions with 18 to 80 kW (24 to 109 hp), 1,272 to 3,769 cm³ with two to four cylinders, rated speeds of 2,600 to 3,000 rpm, unladen weights from 990 to 3,450 kg, widths from 1,440 to 2,500 mm and heights from 2,000 to 2,300 mm – nine diesel, one optionally petrol.
On the slope the transporter replaces tractor and trailer: low centre of gravity, all-wheel drive with locks and the bed directly over the axles allow travel on gradients where a combination would tip; forage-wagon, manure-spreader and slurry-tank bodies make it the universal vehicle of the Alpine farm.
On used transporters, operating hours, engine condition, gearbox and all-wheel drive with locks, brakes (mountain vehicles are braked hard), frame for cracks and the bodies count; parts run through Aebi Schmidt and the engine makers.
Sources: SpecCodex register, model data: Aebi Transporter, Aebi Schmidt (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 56.5 hp (41.5 kW)correct |
| Rated speed | 3,000 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,400 cm³correct |
| Bore | 90.9 mmcorrect |
| Stroke | 92.4 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,000 mmcorrect |
|---|---|
| Width | 1,750 mmcorrect |
| Wheelbase | 2,600 mmcorrect |
| Unladen weight | 1,670 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 8V + 4Rcorrect |
| Front tyres | 11/80-15 (Kommunal: 33x12.50R15)correct |
| Rear tyres | 11/80-15 (Kommunal: 33x12.50R15)correct |
| Top speed | 25 km/hcorrect |
Working data
| Fuel tank capacity | 38 lcorrect |
|---|
Origin and approval
| Construction | Transportercorrect |
|---|
Where this model stands
Power-to-weight ratio: 24.9 kW/t (42 kW / 1.7 t)
Power class: Universal (40–100 hp)
Stronger than 39% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Aebi TP65 have?
The Aebi TP65 delivers 56.5 hp.
How much does the Aebi TP65 weigh?
The unladen weight is 1,670 kg.
What engine does the Aebi TP65 have?
4 cylinders, 2,400 cm³ displacement, Diesel.
How fast does the Aebi TP65 go?
Top speed is 25 km/h.
What are the dimensions of the Aebi TP65?
4,000 mm × 1,750 mm.
When was the Aebi TP65 built?
Production years: 1982.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
