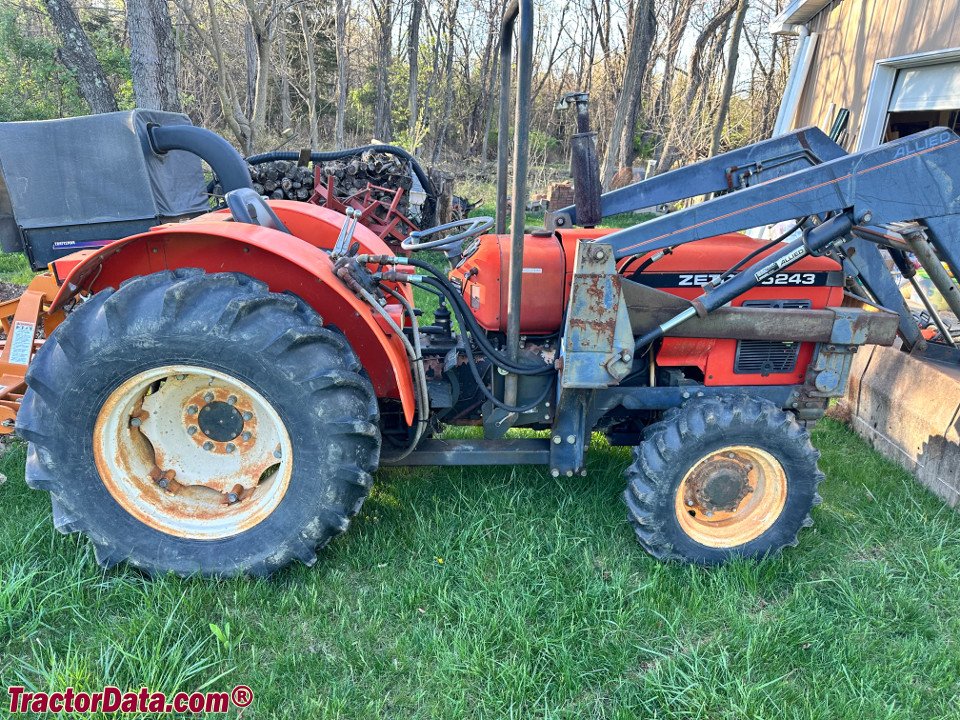

Zetor 5213/5243 V/P
Built: 1990–2004 · Series: Serie-2 (UR-1)
More machines from model year 1990
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Zetor 5211-7745: the classic UR I series, from the 5211/5245 to the 7711/7745, 33.1 to 53.7 kW, three- and four-cylinder engines with water cooling
This series covers Zetor's first "Unified Row" (UR I), which from 1982 replaced the older Crystal tractors and carried type designations from 5211/5245 up to 7711/7745. Through the 1980s it was among the most widely built tractors of the Eastern Bloc.
Read on 4 more paragraphs
The register lists 7 live models built between 1984 and 2004, including the smaller 5211/5245 and 6211/6245 and the stronger 7211/7245 and 7711/7745. Output ranges from 33.1 to 53.7 kW, weight from 2,230 to 3,835 kg, displacement from 2,696 to 3,922 cm3 across three- and four-cylinder engines.
Conceptually, the UR I tractors were simple, easy-to-maintain all-rounders for arable work and transport, often with optional four-wheel drive, built for high volumes and long service life rather than comfort.
Since the series ran for over two decades with only minor updates, early and late examples differ little technically; when buying used, the condition of the hydraulics and gearbox matters most.
In this power class of 33.1 to 53.7 kW, the ISO 730 three-point linkage is mostly built to Category I, with the PTO running at the standard 540 rpm speed. Since the UR I series was built for over two decades around shared central components, many mechanical parts – clutch, rear axle, hydraulic pump – interchange between model years and even with other Zetor series from the same era.
Sources: SpecCodex register, model data: Zetor Serie 2 (UR I), Zetor
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 45 hp (33.1 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 146 Nmcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,696 cm³correct |
| Bore | 102 mmcorrect |
| Stroke | 110 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,160 mmcorrect |
|---|---|
| Width | 1,560 mmcorrect |
| Height | 2,215 mmcorrect |
| Wheelbase | 2,040 mmcorrect |
| Ground clearance | 357 mmcorrect |
| Unladen weight | 2,230 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 10 V/2 Rcorrect |
| Forward gears | 10correct |
| Reverse gears | 2correct |
| Front tyres | 6.50-16 ASF (A: 7.50-16 AS)correct |
| Rear tyres | 12.4-28 AS (A: 14.9-24 AS)correct |
| Top speed | 25 km/hcorrect |
Working data
| Fuel tank capacity | 39 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 14.8 kW/t (33 kW / 2.2 t)
Power class: Universal (40–100 hp)
Stronger than 29% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Zetor 5213/5243 V/P have?
The Zetor 5213/5243 V/P delivers 45 hp.
How much does the Zetor 5213/5243 V/P weigh?
The unladen weight is 2,230 kg.
What engine does the Zetor 5213/5243 V/P have?
3 cylinders, 2,696 cm³ displacement, Diesel.
How fast does the Zetor 5213/5243 V/P go?
Top speed is 25 km/h.
What are the dimensions of the Zetor 5213/5243 V/P?
3,160 mm × 1,560 mm × 2,215 mm.
When was the Zetor 5213/5243 V/P built?
Production years: 1990–2004.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
