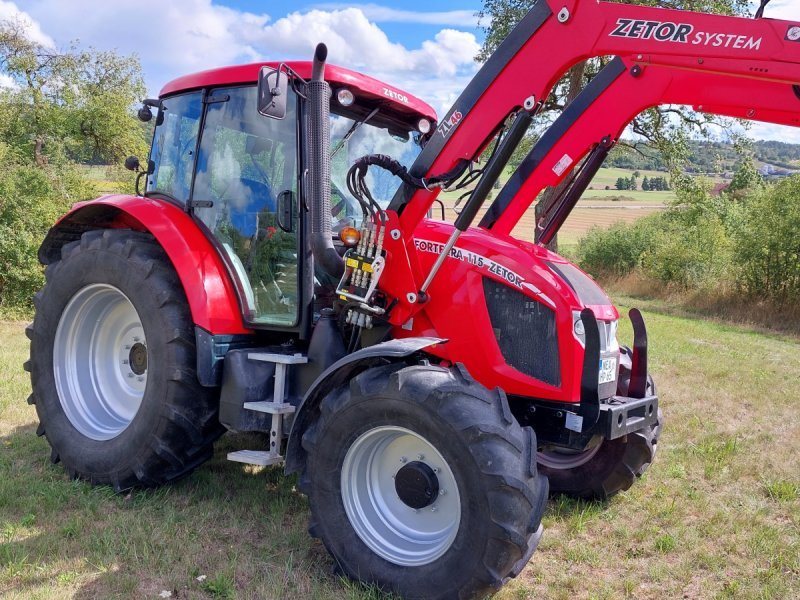

Zetor 11641
Built: 1999–2002 · Series: FORTERRA
More machines from model year 1999
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Zetor Forterra: the powerful four-cylinder since 1998, from the 95 to the FORTERRA 140 HSX, 59.6 to 108 kW, four- and six-cylinder engines with water cooling
Forterra, a name combining "for" and "terra" (terrain), first left the Brno plant in late 1998, built on the Unified Row III platform whose first prototypes date back to 1974. In 2012 the Forterra HSX arrived with an electro-hydraulic power shuttle, followed in 2014 by the Forterra HD rated up to 110 kW.
Read on 4 more paragraphs
The register lists 19 live models in this series, from the 95 up to the FORTERRA 140 HSX, with outputs from 59.6 to 108 kW, weights from 4,075 to 6,350 kg, and displacements between 4,150 and 6,001 cm3 across four- and six-cylinder engines.
Zetor positioned the Forterra as a rugged mid-range tractor for field, forestry and municipal work, technically simpler than its flagship models but noticeably stronger than the Proxima line. By its 20th anniversary, Zetor counted around 21,500 Forterra tractors sold across 55 countries.
When buying used, the build year matters: early Forterra models from the late 1990s differ substantially from the later HSX and HD versions with their more modern hydraulics and power shuttle transmission.
Zetor, as a Czech tractor maker, remains an independent, active company today, which eases spares supply for the Forterra line through the regular dealer network, unlike many of the long-discontinued brands otherwise gathered on pages like this one. In the power class of 59.6 to 108 kW, the ISO 730 three-point linkage is mostly built to Category II, with the PTO usually offering both standard speeds, 540 and 1,000 rpm.
Sources: SpecCodex register, model data: Zetor Forterra, Zetor
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 110 hp (80.9 kW)correct |
| Rated speed | 2.200/2.350 rpmcorrect |
| Torque | 390 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 6,001 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 115.5 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,550 mmcorrect |
|---|---|
| Width | 2,205 mmcorrect |
| Height | 2,735 mmcorrect |
| Wheelbase | 2,643 mmcorrect |
| Ground clearance | 367 mmcorrect |
| Unladen weight | 4,645 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 24 V/18 Rcorrect |
| Forward gears | 24correct |
| Reverse gears | 18correct |
| Front tyres | 14.9 R 24 AScorrect |
| Rear tyres | 520/70 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 180 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 17.4 kW/t (81 kW / 4.6 t)
Power class: Large (100–180 hp)
Stronger than 70% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Zetor 11641 have?
The Zetor 11641 delivers 110 hp.
How much does the Zetor 11641 weigh?
The unladen weight is 4,645 kg.
What engine does the Zetor 11641 have?
6 cylinders, 6,001 cm³ displacement, Diesel.
How fast does the Zetor 11641 go?
Top speed is 30 km/h.
What are the dimensions of the Zetor 11641?
4,550 mm × 2,205 mm × 2,735 mm.
When was the Zetor 11641 built?
Production years: 1999–2002.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 27 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
