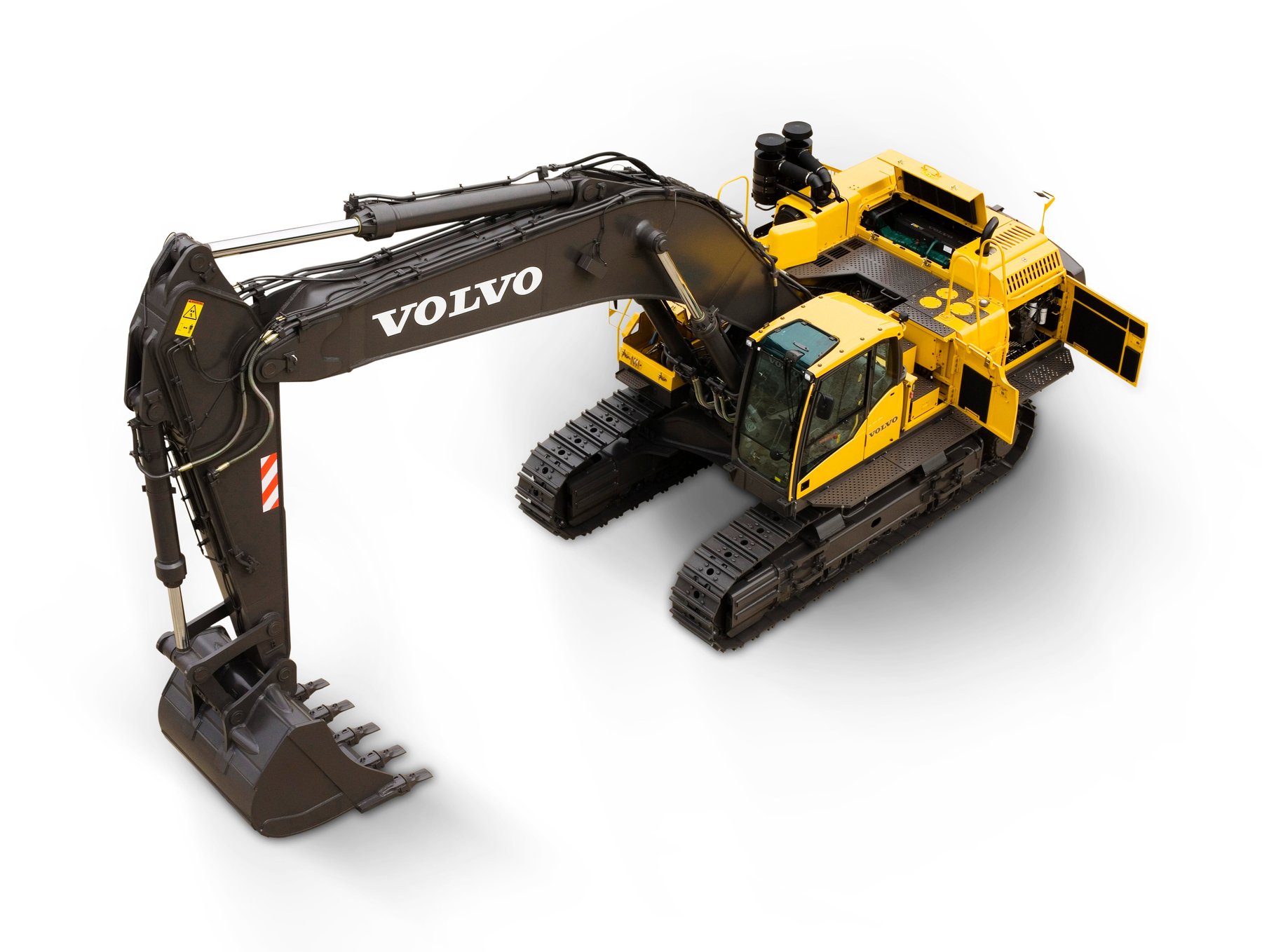

Volvo EC700CL

Series: Volvo Hydraulic Excavator

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Volvo EC700CL belongs to the Volvo Hydraulic Excavator series. The engine delivers 470.4 hp (316.2 kW), has 6 cylinders, with a displacement of 16,092.1 cm³. Torque is 2,250.7 Nm. Rated speed is 1,800 rpm. The unladen weight is 71,699.3 kg. Ground clearance is 859.5 mm. The tank holds 840.4 litres. Maximum torque is reached at 1,350 rpm. The pump delivers 870.6 l/min. The hydraulic tank holds 655.3 litres. Working pressure is 343.4 bar. The cooling system holds 65.1 litres. The oil fill is 52.2 litres. The electrical system runs on 24 V. The engine fitted is the D16E EAE3. The Volvo Hydraulic Excavator series covers 53 models. Rated output within it ranges from 99.4 to 534.3 hp; the EC700CL sits at the top of that range with 470.4 hp. Its immediate neighbours are the EC480E below it with 386.2 hp and the EC750E above it with 534.3 hp. 5366 Volvo models across 29 series are on record. The model is listed under Excavators & compaction. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD16E EAE3correct
Power470.4 hp (316.2 kW)correct
Rated speed1,800 rpmcorrect
Torque2,250.7correct
Speed at max. torque1,350 rpmcorrect
Cylinders6correct
Displacement16,092.1 cm³correct
AspirationTurbocharged and Intercooledcorrect
Coolant capacity65.1 lcorrect
Engine oil capacity52.2 lcorrect

Dimensions and weights

Ground clearance859.5correct
Unladen weight71,699.3 kgcorrect

Drivetrain and chassis

System voltage24 Vcorrect

Working data

Pump flow870.6 l/mincorrect
Hydraulic oil capacity655.3 lcorrect
Hydraulic pressure343.4 barcorrect
Fuel tank capacity840.4 lcorrect

Other data

Height3,520.4correct

Where this model stands

Power-to-weight ratio: 4.4 kW/t (316 kW / 71.7 t)

Stronger than 92% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo EC700CL have?

The Volvo EC700CL delivers 470 hp.

How much does the Volvo EC700CL weigh?

The unladen weight is 71,699 kg.

What engine does the Volvo EC700CL have?

6 cylinders, 16,092 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
