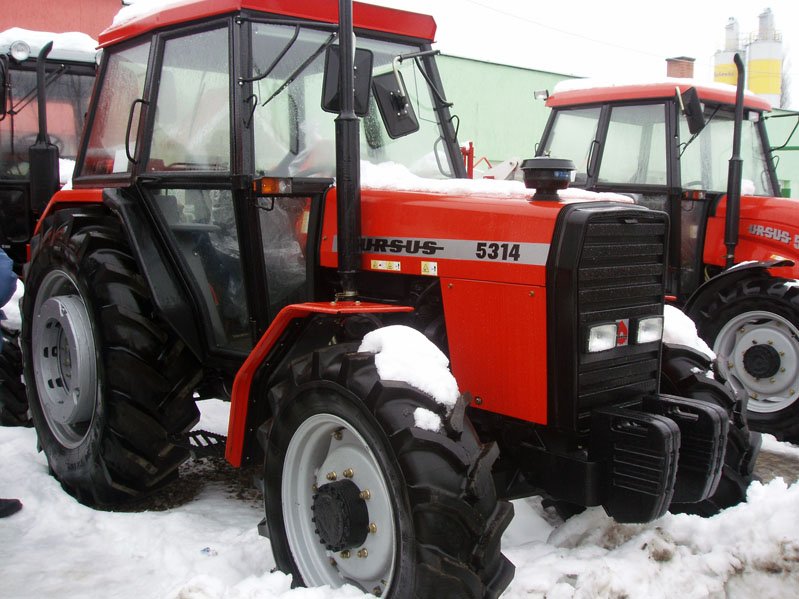

Ursus 5312/5314 – specifications
Built: 1993–2003 · Series: Other models
The Ursus 5312/5314 is a machine built by Ursus. Production: 1993–2003. The engine delivers 71 hp (52.2 kW), has 4 cylinders, with a displacement of 3,865 cm³. Torque is 267 Nm. Rated speed is 2,200 rpm. The machine is 3,770 mm long, 2,010 mm wide and 2,540 mm high. The unladen weight is 3,180 kg. The wheelbase measures 2,223 mm. Ground clearance is 340 mm. Top speed is 25 km/h. The tank holds 80 litres. Transmission: 8 V/2 R or 12 V/4 R. The engine is water-cooled. Tyres: front 7.50-16 ASF (A: 12.4-24 AS), rear 16.9-34 AS. The fuel is diesel. The bore measures 98.43 mm. The stroke is 127 mm. The compression ratio is 16:1. Maximum torque is reached at 1,400 rpm. Construction: unit construction (no separate frame). Injection pressure is 171 bar. The linkage is category II. The PTO runs at 540/1000 rpm. Rated output across the Ursus range ranges from 8 to 192.6 hp; the 5312/5314 sits in the lower part of that range with 71 hp. Its immediate neighbours are the 4514 below it with 69.7 hp and the 5314 above it with 73 hp. Rated output across the Ursus range ranges from 8 to 190 hp; here the 5312/5314 sits in the lower part of that range with 71 hp. 221 Ursus models across 12 series are on record.
Data for the version built 1993–2003 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1993
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ursus — one brand, two licences, many relatives
Anyone looking at an Ursus rarely sees a purely in-house design. The brand's history is a history of licences — and that is precisely why parts are often easier to find than the production figures would suggest.
Read on 4 more paragraphs
In 1965 the Warsaw plant began building the C-4011 under a licence agreement with Zetor in Brno. At its heart sat the S-4001 engine, the Polish version of Zetor's Z-4001. That kinship runs through the ranges: the later C-360, built from 1976 and in the programme until the end of 1994, used the S-4003, the strongest engine of that family.
In 1974 a second licence followed — the British one from Massey Ferguson, together with the associated production plant. Models such as the MF 235, MF 255 and MF 265 were then built in Poland with Perkins engines and became a fixture on many farms. The higher Ursus ranges with four-digit numbers descend from this line.
One remarkable long-runner stands out: the C-325 and its revised versions C-328 and C-330 — popularly the "thirties" — plus the C-335 export version, ran without interruption for 34 years until 1993.
When buying used it is therefore worth establishing the range's ancestry first. An Ursus from the Zetor line shares engine parts with Czech machines, one from the Massey Ferguson line with British ones. That decides where to look for components.
Sources: warzywa.pl, Wiadomości Rolnicze Polska, ursus.info.pl
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 71 hp (52.2 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 267 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,865 cm³correct |
| Bore | 98.43 mmcorrect |
| Stroke | 127 mmcorrect |
| Compression ratio | 16correct |
| Injection pressure | 171 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,770 mmcorrect |
|---|---|
| Width | 2,010 mmcorrect |
| Height | 2,540 mmcorrect |
| Wheelbase | 2,223 mmcorrect |
| Ground clearance | 340 mmcorrect |
| Unladen weight | 3,180 kgcorrect |
Drivetrain and chassis
| Drive | rear- and four-wheel drivecorrect |
|---|---|
| Gearbox | 8 V/2 R or 12 V/4 Rcorrect |
| Front tyres | 7.50-16 ASF (A: 12.4-24 AS)correct |
| Rear tyres | 16.9-34 AScorrect |
| Top speed | 25 km/hcorrect |
Working data
| Fuel tank capacity | 80 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Frequently asked questions
Where this model stands
Power-to-weight ratio: 16.4 kW/t (52 kW / 3.2 t)
Power class: Universal (40–100 hp)
Stronger than 49% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
