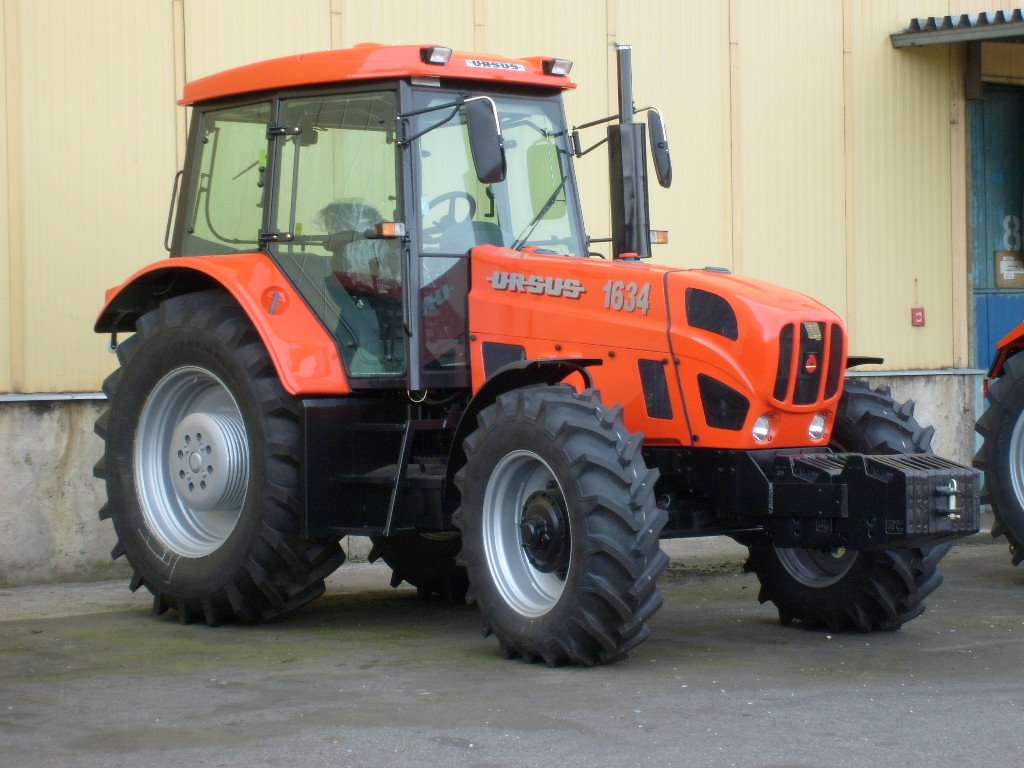

Ursus 1634 (6195 kg)

Built: 1990–2009 · Series: Other models

More machines from model year 1990

Wikimedia Commons · CC BY-SA 3.0 · Adikpl · Dateiseite

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 1634 comes from Ursus. Production: 1990–2009. The engine delivers 155 hp (114 kW), has 6 cylinders, with a displacement of 6,842 cm³. The engine comes from Martin. Torque is 376 Nm. Rated speed is 2,200 rpm. The machine is 4,505 mm long, 2,267 mm wide and 3,030 mm high. The unladen weight is 6,195 kg. The wheelbase measures 2,706 mm. Ground clearance is 395 mm. Top speed is 27 km/h. The tank holds 160 litres. Transmission: 12 V/ 6 R or 16 V/8 R. The engine is water-cooled. Tyres: front 14.9-24 AS, rear 18.4-38 AS. The model was built in Poland. The fuel is diesel. The linkage is category II/III. The PTO runs at 540/1000 rpm. Around 2.210 units were built. Rated output across the Ursus range ranges from 8 to 192.6 hp; the 1634 sits in the upper part of that range with 155 hp. Its immediate neighbours are the 1.604 below it with 150 hp and the 1614 above it with 157.1 hp. Rated output across the Ursus range ranges from 8 to 190 hp; here the 1634 sits in the upper part of that range with 155 hp. 221 Ursus models across 12 series are on record.

Ursus — one brand, two licences, many relatives

Anyone looking at an Ursus rarely sees a purely in-house design. The brand's history is a history of licences — and that is precisely why parts are often easier to find than the production figures would suggest.

Read on 4 more paragraphs

In 1965 the Warsaw plant began building the C-4011 under a licence agreement with Zetor in Brno. At its heart sat the S-4001 engine, the Polish version of Zetor's Z-4001. That kinship runs through the ranges: the later C-360, built from 1976 and in the programme until the end of 1994, used the S-4003, the strongest engine of that family.

In 1974 a second licence followed — the British one from Massey Ferguson, together with the associated production plant. Models such as the MF 235, MF 255 and MF 265 were then built in Poland with Perkins engines and became a fixture on many farms. The higher Ursus ranges with four-digit numbers descend from this line.

One remarkable long-runner stands out: the C-325 and its revised versions C-328 and C-330 — popularly the "thirties" — plus the C-335 export version, ran without interruption for 34 years until 1993.

When buying used it is therefore worth establishing the range's ancestry first. An Ursus from the Zetor line shares engine parts with Czech machines, one from the Massey Ferguson line with British ones. That decides where to look for components.

Sources: warzywa.pl, Wiadomości Rolnicze Polska, ursus.info.pl

Technical data

Engine

Engine makeMartincorrect
EngineDS Martin Z 8602.12 Turbo, 114 kW (155 KM)correct
Fueldieselcorrect
Power155 hp (114 kW)correct
Rated speed2,200 rpmcorrect
Torque376 Nmcorrect
Cylinders6correct
Displacement6,842 cm³correct
Coolingwater-cooledcorrect

Dimensions and weights

Length4,505 mmcorrect
Width2,267 mmcorrect
Height3,030 mmcorrect
Wheelbase2,706 mmcorrect
Ground clearance395 mmcorrect
Unladen weight6,195 kgcorrect

Drivetrain and chassis

Drivefour-wheel drivecorrect
Gearbox12 V/ 6 R or 16 V/8 Rcorrect
Front tyres14.9-24 AScorrect
Rear tyres18.4-38 AScorrect
Top speed27 km/hcorrect

Working data

Fuel tank capacity160 lcorrect

Origin and approval

PlantPolandcorrect
Units built2,210correct

Other data

Linkage categoryCat II/IIIcorrect
PTO speed540/1000 rpmcorrect

Where this model stands

Power-to-weight ratio: 18.4 kW/t (114 kW / 6.2 t)

Power class: Large (100–180 hp)

Stronger than 84% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Ursus 1634 have?

The Ursus 1634 delivers 155 hp.

How much does the Ursus 1634 weigh?

The unladen weight is 6,195 kg.

What engine does the Ursus 1634 have?

6 cylinders, 6,842 cm³ displacement, Diesel.

How fast does the Ursus 1634 go?

Top speed is 27 km/h.

What are the dimensions of the Ursus 1634?

4,505 mm × 2,267 mm × 3,030 mm.

When was the Ursus 1634 built?

Production years: 1990–2009.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
