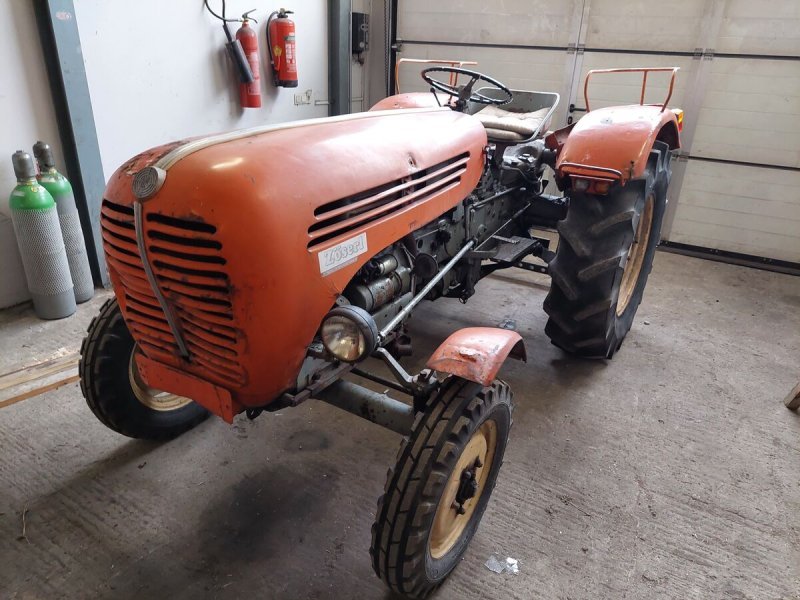

Steyr 188 – specifications
Built: 1960–1966 · Series: Jubiläumsserie
The Steyr 188 belongs to the Jubiläumsserie series. Production: 1960–1966. The engine delivers 28 hp (20.6 kW), has 2 cylinders, with a displacement of 1,992 cm³. Rated speed is 2,200 rpm. The machine is 3,160 mm long, 1,644 mm wide and 1,450 mm high. The unladen weight is 1,390 kg. The wheelbase measures 1,850 mm. Ground clearance is 440 mm. Top speed is 30 km/h. Transmission: 8V/6R. The engine is water-cooled. Tyres: front 5.50-16 ASF, rear 10-28 AS. The fuel is diesel. Construction: unit construction (no separate frame). The gearbox offers 8 forward gears. There are also 6 reverse gears. The linkage is category I. Around 23.223 units were built. The Jubiläumsserie series covers 4 models. Rated output within it ranges from 28 to 45 hp; the 188 sits at the bottom of that range with 28 hp. Its immediate neighbours are the 190 above it with 36 hp. Unladen weight within it ranges from 1,390 to 1,930 kg; here the 188 sits at the bottom of that range with 1,390 kg. 137 Steyr models across 20 series are on record.
Data for the version built 1960–1966 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1960
Steyr Jubiläumsserie – tractors of types 188, 188 N, 190 and 288 from St. Valentin, two- to four-cylinder diesels from 21 to 33 kW, compact build for mixed farm use
The Jubiläumsserie brings together Steyr's 188, 188 N, 190 and 288 types, built at the St. Valentin plant in Upper Austria. As with the Plus series, the three-digit type number orders the models by power class, with the 188 and 190 in the lower and the 288 in the upper part of the range covered here; the letter N on the 188 N denotes a revised version of the base 188 type. Steyr, active in tractor building since the 1940s, covered the mid-market segment for smaller and medium farms with these compact two- to four-cylinder tractors.
Read on 3 more paragraphs
The register lists four versions here with 20.6 to 33.1 kW from two- to four-cylinder diesel engines with 1,992 to 2,659 cm³ displacement. Rated speed lies between 2,200 and 2,400 rpm, unladen weight ranges from 1,390 to 1,930 kg with lengths from 3,160 to 3,435 mm, widths from 1,556 to 1,690 mm and heights from 1,444 to 1,527 mm.
With their compact dimensions and modest output, the Jubiläumsserie tractors were at home on farms with tight yard space and in grassland and orchard work, where manoeuvrability mattered more than raw pulling power; they thus sat in the same market segment as comparable compact tractors from Fendt and Deutz.
When buying used, check the condition of the clutch and gearbox, the tightness of the hydraulics at the lift arms and spool valves, and rust on the wings, bonnet and cab frame. Parts for the engine and drivetrain are available through the Steyr Traktoren network under CNH Industrial, and for older attachments it is worth also checking independent suppliers.
Sources: SpecCodex register, model data: Steyr Jubiläumsserie, Steyr (CNH Industrial, Hersteller)
Technical data
Engine
| Engine | Dieselmotor, 2 Zylinder, 1, 991 l, 21 kW (28 PS)correct |
|---|---|
| Fuel | dieselcorrect |
| Power | 28 hp (20.6 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 1,992 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,160 mmcorrect |
|---|---|
| Width | 1,644 mmcorrect |
| Height | 1,450 mmcorrect |
| Wheelbase | 1,850 mmcorrect |
| Ground clearance | 440 mmcorrect |
| Unladen weight | 1,390 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 8V/6Rcorrect |
| Forward gears | 8correct |
| Reverse gears | 6correct |
| Front tyres | 5.50-16 ASFcorrect |
| Rear tyres | 10-28 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 23,223correct |
Other data
| Linkage category | Cat Icorrect |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 14.8 kW/t (21 kW / 1.4 t)
Power class: Compact (< 40 hp)
Stronger than 15% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 25 individual figures for this model. They come from 3 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
