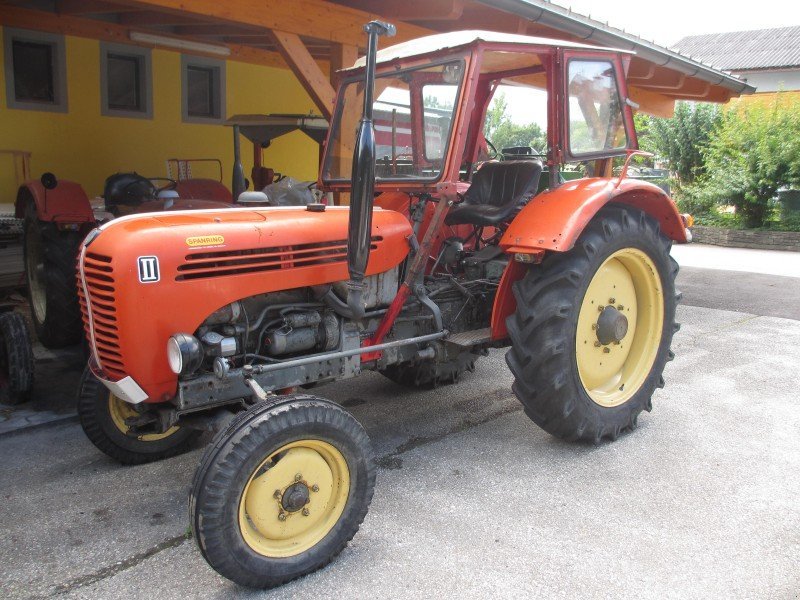

Steyr 288
Built: 1962–1966 · Series: Jubiläumsserie
More machines from model year 1962
Steyr Jubiläumsserie – tractors of types 188, 188 N, 190 and 288 from St. Valentin, two- to four-cylinder diesels from 21 to 33 kW, compact build for mixed farm use
The Jubiläumsserie brings together Steyr's 188, 188 N, 190 and 288 types, built at the St. Valentin plant in Upper Austria. As with the Plus series, the three-digit type number orders the models by power class, with the 188 and 190 in the lower and the 288 in the upper part of the range covered here; the letter N on the 188 N denotes a revised version of the base 188 type. Steyr, active in tractor building since the 1940s, covered the mid-market segment for smaller and medium farms with these compact two- to four-cylinder tractors.
Read on 3 more paragraphs
The register lists four versions here with 20.6 to 33.1 kW from two- to four-cylinder diesel engines with 1,992 to 2,659 cm³ displacement. Rated speed lies between 2,200 and 2,400 rpm, unladen weight ranges from 1,390 to 1,930 kg with lengths from 3,160 to 3,435 mm, widths from 1,556 to 1,690 mm and heights from 1,444 to 1,527 mm.
With their compact dimensions and modest output, the Jubiläumsserie tractors were at home on farms with tight yard space and in grassland and orchard work, where manoeuvrability mattered more than raw pulling power; they thus sat in the same market segment as comparable compact tractors from Fendt and Deutz.
When buying used, check the condition of the clutch and gearbox, the tightness of the hydraulics at the lift arms and spool valves, and rust on the wings, bonnet and cab frame. Parts for the engine and drivetrain are available through the Steyr Traktoren network under CNH Industrial, and for older attachments it is worth also checking independent suppliers.
Sources: SpecCodex register, model data: Steyr Jubiläumsserie, Steyr (CNH Industrial, Hersteller)
Technical data
Engine
| Engine | Dieselmotor, 4 Zylinder, 2, 660 l, 33 kW (45 PS)correct |
|---|---|
| Fuel | dieselcorrect |
| Power | 45 hp (33.1 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Torque | 157 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 2,659 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,435 mmcorrect |
|---|---|
| Width | 1,690 mmcorrect |
| Height | 1,444 mmcorrect |
| Wheelbase | 2,015 mmcorrect |
| Ground clearance | 410 mmcorrect |
| Unladen weight | 1,930 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 8V/8R or 12V/8Rcorrect |
| Front tyres | 6.00-16 ASFcorrect |
| Rear tyres | 11-32 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 73 lcorrect |
|---|
Origin and approval
| Construction | unit construction with subframecorrect |
|---|---|
| Units built | 6,253correct |
Other data
| Linkage category | Cat I/IIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 17.2 kW/t (33 kW / 1.9 t)
Power class: Universal (40–100 hp)
Stronger than 29% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Steyr 288 have?
The Steyr 288 delivers 45 hp.
How much does the Steyr 288 weigh?
The unladen weight is 1,930 kg.
What engine does the Steyr 288 have?
4 cylinders, 2,659 cm³ displacement, Diesel.
How fast does the Steyr 288 go?
Top speed is 30 km/h.
What are the dimensions of the Steyr 288?
3,435 mm × 1,690 mm × 1,444 mm.
When was the Steyr 288 built?
Production years: 1962–1966.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
