Skyjack SJIII 4626 – specifications

Series: Skyjack Scissor Lift

Build year not documented · Data origin: Directory data · sources

Source: loutec.com

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

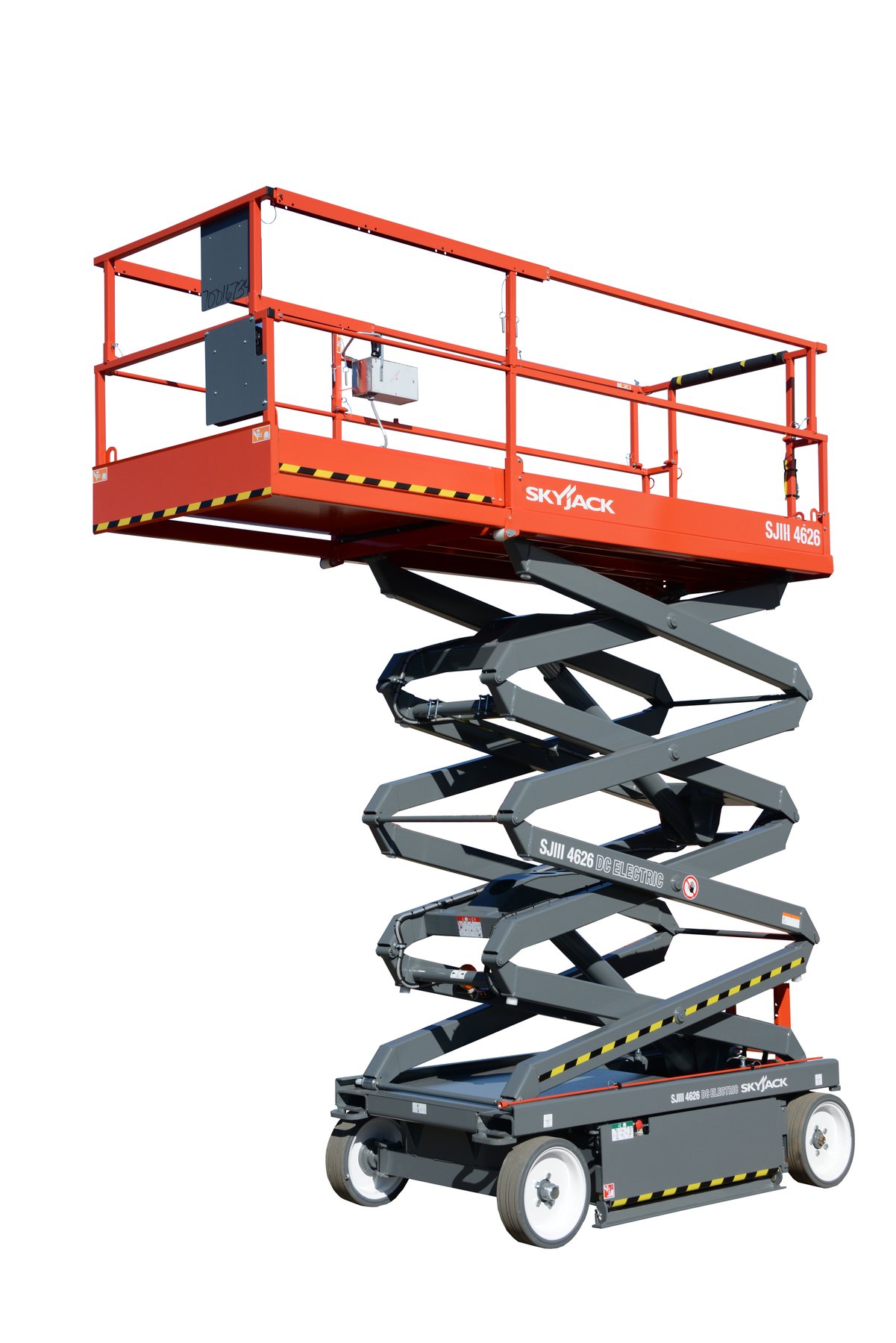

The SJIII 4626 is an electrically driven scissor lift from the third generation of the Skyjack Scissor Lift series. The Canadian manufacturer Skyjack positions this model as a compact aerial work platform for indoor use and level outdoor surfaces. The model designation follows the North American convention, where the first digits indicate the platform width in inches and the last digits indicate the lift height in feet. With a working height of 10,000 mm and a platform width of 1,070.1 mm, the machine is designed for applications requiring precise height positioning in limited spaces.

Technically, the platform impresses with its compact design and specific performance data. The empty weight of 2,132 kg, combined with a ground clearance of 89.2 mm and solid tires sized 16 x 5 x 12, allows for use on sensitive floors without causing damage. The maximum speed of 3.2 km/h and a turning radius of 2,400 mm ensure safe maneuverability in narrow aisles. The lifting capacity of 454 kg permits the simultaneous lifting of two persons including tools. The lift time of 54 s and the descent time of 32 s define the cycle for repetitive tasks. The platform extension of 1,200.1 mm extends the lateral reach without requiring the machine to be repositioned. The gradeability of 30% is designed for flat ramps, while the onboard voltage of 24 V powers the electric drive control.

Within the series, the SJIII 4626 ranks 15th out of 20 models in terms of empty weight. The next smaller model, the SJIII 4620, weighs 1,860 kg, while the next larger model, the SJIII 4632, has a weight of 2,302 kg. The total weight range of the series spans from 1,089 to 6,895 kg. This classification shows that the SJIII 4626 lies in the mid-weight range of electric indoor platforms. It is typically suitable for maintenance work, installations, and assembly tasks in warehouses, production facilities, and retail spaces, where small dimensions and emission-free operation are critical.

Skyjack scissor lifts SJIII 3215 to SJ9250 RT – from Guelph, Ontario: the number as platform width in inches and height in feet, SJIII for the electric indoor lifts, RT for rough terrain, 1.1 to 6.9 t

Skyjack of Guelph, Ontario, is the Canadian maker that has served the rental market with simply designed scissor lifts since 1985 – owned since 2002 by the automotive supplier Linamar and today, alongside JLG and Genie, North America's third big brand. The type logic follows the American convention but in reverse order: the first digits give the platform width in inches, the last the platform height in feet – an SJIII 3219 is 32 in wide and lifts to 19 ft, an SJIII 4632 46 in and 32 ft, an SJ6832 RT 68 in and 32 ft, an SJ9250 RT 92 in and 50 ft. SJIII marks the third generation of the electric indoor lifts, RT the diesel rough-terrain lifts with all-wheel drive, RTE the electric rough-terrain version; the SJ7127 and SJ7135 are the intermediate class of 71 inch width.

Read on 3 more paragraphs

The register lists 20 versions with service weights from 1,089 to 6,895 kg, lengths from 1,780 to 4,470 mm, widths from 800 to 2,340 mm and platform capacities from 227 to 907 kg; the rough-terrain lifts deliver up to 48.5 kW, the indoor lifts run on battery, six register models on LPG.

Skyjack's argument is simplicity: relay-based electrics instead of electronics, colour-coded wiring and a hydraulic system without proportional valves – features rental firms value because technicians repair the lifts without a diagnostic tool.

On used lifts, operating hours, battery condition on SJIII models, play in scissor pins and rails, hydraulic tightness, the function of tilt and overload sensors and a valid periodic inspection are what count.

Sources: SpecCodex register, model data: Skyjack Scherenbühnen, Skyjack (Linamar, Hersteller)

Technical data

Engine

Drive typeelectriccorrect

Dimensions and weights

Length2,310 mmcorrect
Width1,170 mmcorrect
Ground clearance89.2 mmcorrect
Unladen weight2,132 kgcorrect
Platform length2,130 mmcorrect
Platform width1,070.1 mmcorrect

Drivetrain and chassis

Tyre size16 x 5 x 12correct
Tyre typeSolid, N/Mcorrect
Top speed3.2 km/hcorrect
Turning radius2,400 mmcorrect

Working data

Lifting capacity454 kgcorrect
Working height10,000 mmcorrect
Lift time54 scorrect
Lowering time32 scorrect
Platform extension1,200.1 mmcorrect
Platform capacity454 kgcorrect
Gradeability30 %correct

Other data

System voltage24 Vcorrect

Frequently asked questions

How much does the Skyjack SJIII 4626 weigh?

The unladen weight is 2,132 kg.

What are the dimensions of the Skyjack SJIII 4626?

2,310 mm × 1,170 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
