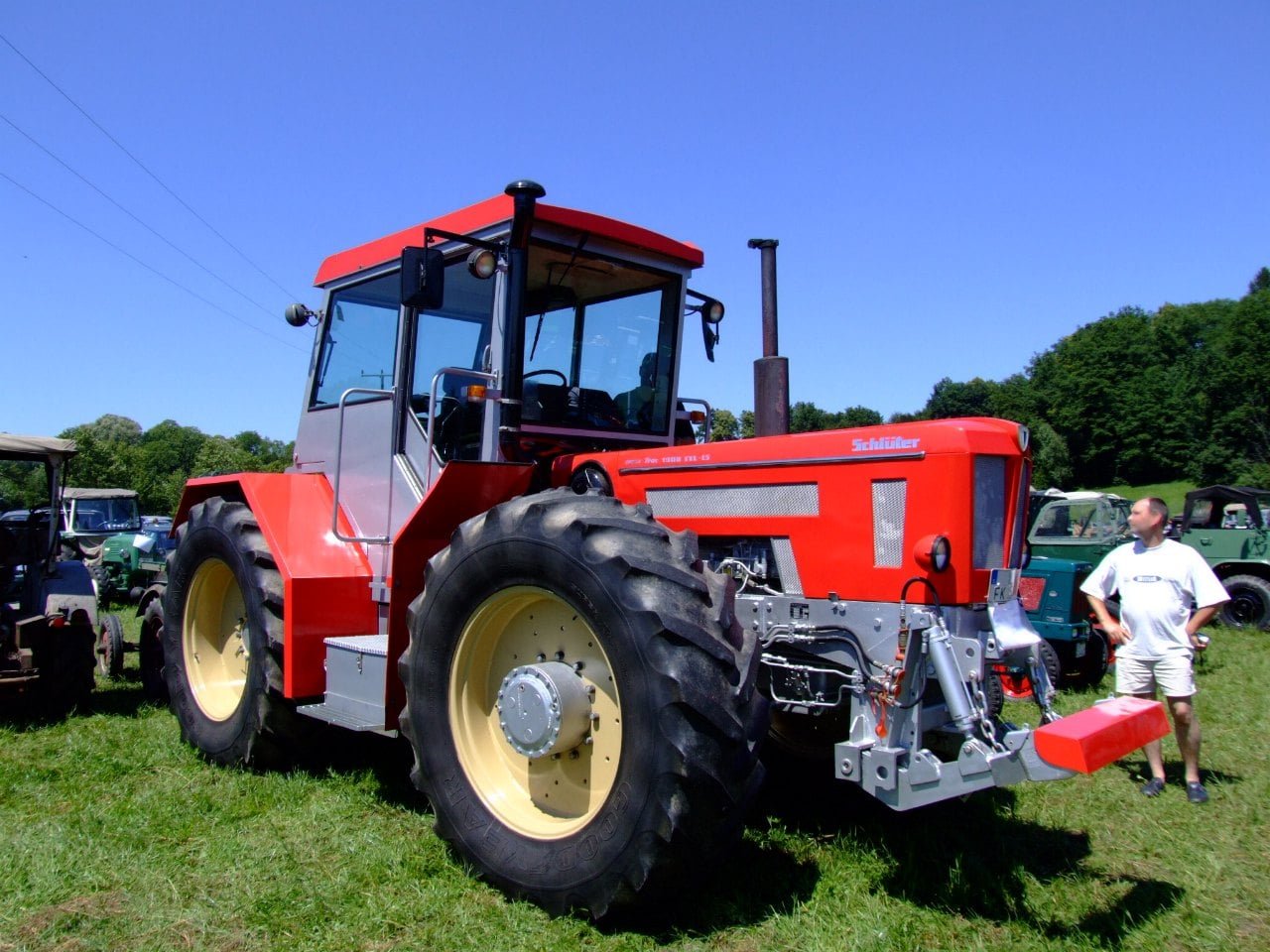

Schlüter Super Tronic 1900 TV/L-LS – specifications
Built: TV: 8/1987 (TVL: 4/1988)–TV: 11/1987 (TVL: 5/1989) · Series: Super Trac-Baureihe
With the Super Tronic 1900 TV/L-LS, Schlüter offers a model from the Super Trac series. Production: TV: 8/1987 (TVL: 4/1988)–TV: 11/1987 (TVL: 5/1989). The engine delivers 185 hp (138 kW), has 6 cylinders, with a displacement of 7,389 cm³. Torque is 755 Nm. Rated speed is 2,000 rpm. The machine is 5,810 mm long, 2,500 mm wide and 3,230 mm high. The unladen weight is 8,400 kg. The wheelbase measures 2,900 mm. Top speed is 29.9 km/h. Transmission: 16V / 14R. The engine is water-cooled. Tyres: front 20.8 R 38, rear 20.8 R 38. The fuel is diesel. The bore measures 112 mm. The stroke is 125 mm. Maximum torque is reached at 1,400 rpm. Injection pressure is 240 bar. Around TV: 3 (TVL: 6 ) units were built. The Super Trac-Baureihe series covers 7 models. Rated output within it ranges from 160 to 280 hp; the Super Tronic 1900 TV/L-LS sits in the lower part of that range with 185 hp. Its immediate neighbours are the Super Trac 1600/1700 TVL (LS) below it with 160 hp and the 2000/2200 TVL above it with 200 hp. Unladen weight within it ranges from 7,200 to 9,700 kg; here the Super Tronic 1900 TV/L-LS sits in the middle of that range with 8,400 kg. 91 Schlüter models across 19 series are on record.
Data for the version built TV: 8/1987 (TVL: 4/1988)–TV: 11/1987 (TVL: 5/1989) · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1987
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Schlüter Super Trac (1978–1993) – the systems tractor with front cab from Freising: 1600 to 3000 TVL, the number as power class, T for turbocharger, V for four-wheel drive, LS as equipment, Super Tronic with electronics
The Super Trac was, beside the Profi Trac, Schlüter's second systems tractor: presented in 1978, with four equal wheels, all-wheel steering and a cab that sits not in the middle as on the Profi Trac but at the front above the front axle, leaving a mounting space behind it for bodies and implements – the layout MB-Trac and Fendt Xylon also chose. The type logic: the number gives the power class in tenths of hp – Super Trac 1600 about 160 hp, 2500 250 hp, 3000 300 hp – T the turbocharger, V four-wheel drive, L a version variant, LS the upper equipment; the Super Tronic 1900 is the version with electronic transmission control with which Schlüter caught up with the state of the art in the early 1990s. The engines are Schlüter's own six-cylinders of 7.4 litres in the smaller and MAN six- and eight-cylinders of up to 11.4 litres in the big models, at 2,000 to 2,200 rpm.
Read on 3 more paragraphs
The register lists 7 versions with 118 to 206 kW from six- and eight-cylinders of 7,389 to 11,413 cm³, torque up to 883 Nm, unladen weights from 7,200 to 9,700 kg, lengths from 5,660 to 5,950 mm, widths from 2,500 to 2,620 mm and heights from 3,190 to 3,400 mm.
The Super Trac was Schlüter's best-selling systems tractor – in demand with contractors for slurry and transport work and in eastern Germany after 1990 – and it was the machine with which the company took on the MB-Trac until the end of production in 1993.
Used Super Tracs are collectors' and niche machines with prices by condition; engine (MAN parts better available than Schlüter parts), transmission and all-wheel steering, front cab and frame, hydraulics and tyres count.
Sources: SpecCodex register, model data: Schlüter Super Trac, Schlüter (Traktorenhersteller) (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 185 hp (138 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Torque | 755 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 7,389 cm³correct |
| Bore | 112 mmcorrect |
| Stroke | 125 mmcorrect |
| Injection pressure | 240 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,810 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Height | 3,230 mmcorrect |
| Wheelbase | 2,900 mmcorrect |
| Unladen weight | 8,400 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 16V / 14Rcorrect |
| Front tyres | 20.8 R 38correct |
| Rear tyres | 20.8 R 38correct |
| Top speed | 29.9 km/hcorrect |
Origin and approval
| Units built | TV: 3 (TVL: 6 )correct |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 16.4 kW/t (138 kW / 8.4 t)
Power class: Heavy (> 180 hp)
Stronger than 90% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
