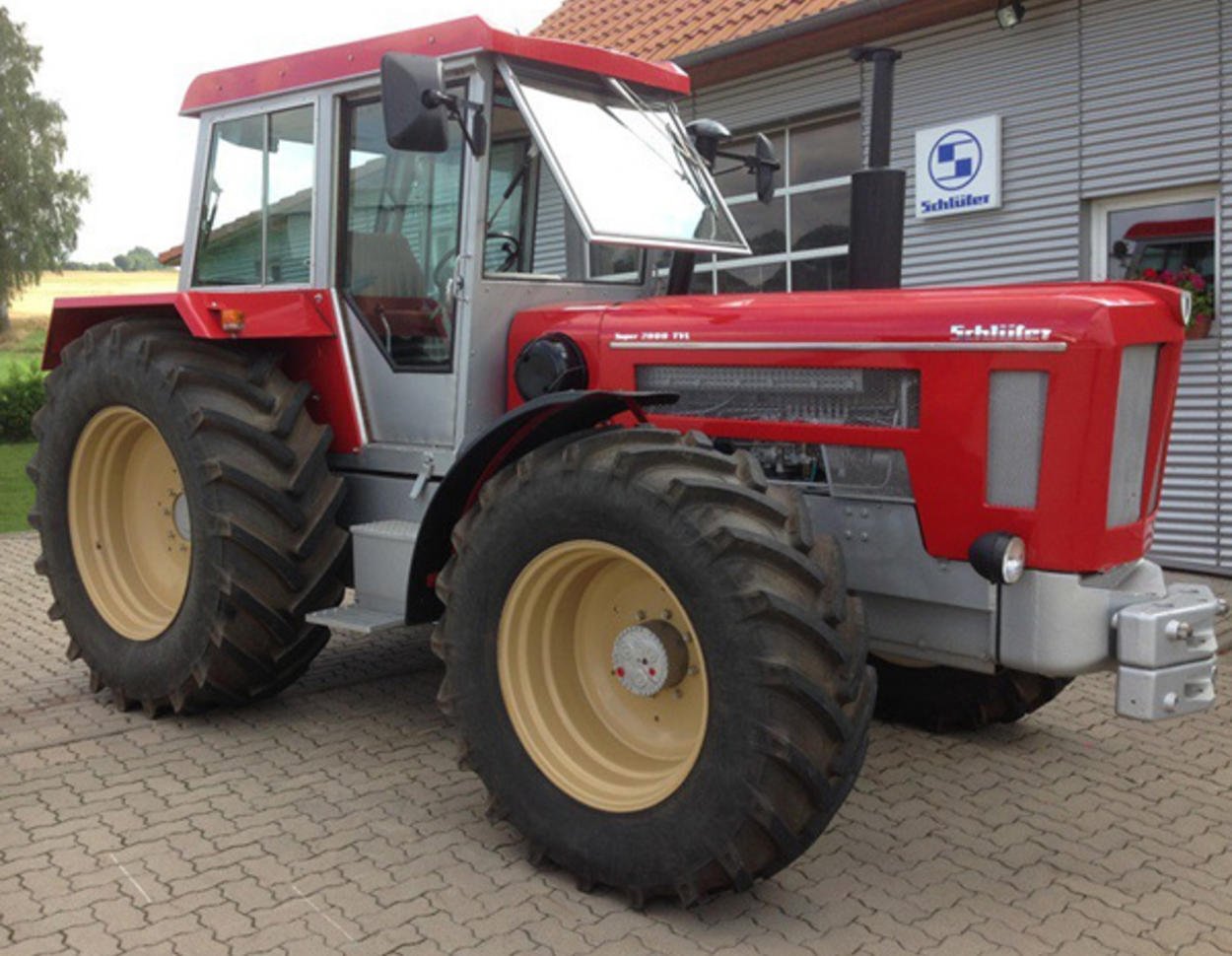

Schlüter 2200 TVL-LS
Built: 03/1989–12/1993 · Series: Super Trac-Baureihe
More machines from model year 1989
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Schlüter Super Trac (1978–1993) – the systems tractor with front cab from Freising: 1600 to 3000 TVL, the number as power class, T for turbocharger, V for four-wheel drive, LS as equipment, Super Tronic with electronics
The Super Trac was, beside the Profi Trac, Schlüter's second systems tractor: presented in 1978, with four equal wheels, all-wheel steering and a cab that sits not in the middle as on the Profi Trac but at the front above the front axle, leaving a mounting space behind it for bodies and implements – the layout MB-Trac and Fendt Xylon also chose. The type logic: the number gives the power class in tenths of hp – Super Trac 1600 about 160 hp, 2500 250 hp, 3000 300 hp – T the turbocharger, V four-wheel drive, L a version variant, LS the upper equipment; the Super Tronic 1900 is the version with electronic transmission control with which Schlüter caught up with the state of the art in the early 1990s. The engines are Schlüter's own six-cylinders of 7.4 litres in the smaller and MAN six- and eight-cylinders of up to 11.4 litres in the big models, at 2,000 to 2,200 rpm.
Read on 3 more paragraphs
The register lists 7 versions with 118 to 206 kW from six- and eight-cylinders of 7,389 to 11,413 cm³, torque up to 883 Nm, unladen weights from 7,200 to 9,700 kg, lengths from 5,660 to 5,950 mm, widths from 2,500 to 2,620 mm and heights from 3,190 to 3,400 mm.
The Super Trac was Schlüter's best-selling systems tractor – in demand with contractors for slurry and transport work and in eastern Germany after 1990 – and it was the machine with which the company took on the MB-Trac until the end of production in 1993.
Used Super Tracs are collectors' and niche machines with prices by condition; engine (MAN parts better available than Schlüter parts), transmission and all-wheel steering, front cab and frame, hydraulics and tyres count.
Sources: SpecCodex register, model data: Schlüter Super Trac, Schlüter (Traktorenhersteller) (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 200 hp (147 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Torque | 853 Nmcorrect |
| Cylinders | 8correct |
| Displacement | 9,852 cm³correct |
| Bore | 112 mmcorrect |
| Stroke | 125 mmcorrect |
| Injection pressure | 240 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,920 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Height | 3,240 mmcorrect |
| Wheelbase | 3,040 mmcorrect |
| Ground clearance | 480 mmcorrect |
| Unladen weight | 8,300 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | powershift transmissioncorrect |
| Front tyres | 20.8 R38correct |
| Rear tyres | 20.8 R38correct |
| Top speed | 42.2 km/hcorrect |
Origin and approval
| Construction | Tracschlepper in Rahmenbauweisecorrect |
|---|---|
| Units built | TVL-LS: 19 (LS: 5)correct |
Other data
| Linkage category | Cat II/IIIcorrect |
|---|---|
| PTO speed | 627/673/1093/1173 rpmcorrect |
Where this model stands
Power-to-weight ratio: 17.7 kW/t (147 kW / 8.3 t)
Power class: Heavy (> 180 hp)
Stronger than 91% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Schlüter 2200 TVL-LS have?
The Schlüter 2200 TVL-LS delivers 200 hp.
How much does the Schlüter 2200 TVL-LS weigh?
The unladen weight is 8,300 kg.
What engine does the Schlüter 2200 TVL-LS have?
8 cylinders, 9,852 cm³ displacement, Diesel.
How fast does the Schlüter 2200 TVL-LS go?
Top speed is 42.2 km/h.
What are the dimensions of the Schlüter 2200 TVL-LS?
5,920 mm × 2,500 mm × 3,240 mm.
When was the Schlüter 2200 TVL-LS built?
Production years: 03/1989–12/1993.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
