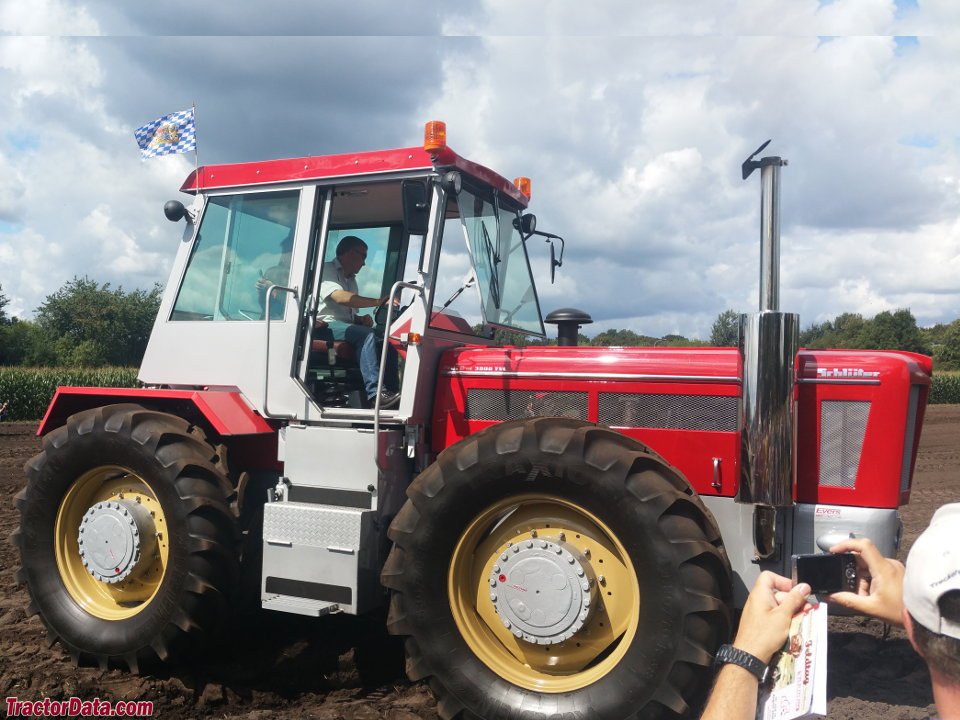

Schlüter Super Trac 3000 TVL-LS
Built: 03/1988–02/1989 · Series: Super Trac-Baureihe
More machines from model year 1988
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Schlüter Super Trac (1978–1993) – the systems tractor with front cab from Freising: 1600 to 3000 TVL, the number as power class, T for turbocharger, V for four-wheel drive, LS as equipment, Super Tronic with electronics
The Super Trac was, beside the Profi Trac, Schlüter's second systems tractor: presented in 1978, with four equal wheels, all-wheel steering and a cab that sits not in the middle as on the Profi Trac but at the front above the front axle, leaving a mounting space behind it for bodies and implements – the layout MB-Trac and Fendt Xylon also chose. The type logic: the number gives the power class in tenths of hp – Super Trac 1600 about 160 hp, 2500 250 hp, 3000 300 hp – T the turbocharger, V four-wheel drive, L a version variant, LS the upper equipment; the Super Tronic 1900 is the version with electronic transmission control with which Schlüter caught up with the state of the art in the early 1990s. The engines are Schlüter's own six-cylinders of 7.4 litres in the smaller and MAN six- and eight-cylinders of up to 11.4 litres in the big models, at 2,000 to 2,200 rpm.
Read on 3 more paragraphs
The register lists 7 versions with 118 to 206 kW from six- and eight-cylinders of 7,389 to 11,413 cm³, torque up to 883 Nm, unladen weights from 7,200 to 9,700 kg, lengths from 5,660 to 5,950 mm, widths from 2,500 to 2,620 mm and heights from 3,190 to 3,400 mm.
The Super Trac was Schlüter's best-selling systems tractor – in demand with contractors for slurry and transport work and in eastern Germany after 1990 – and it was the machine with which the company took on the MB-Trac until the end of production in 1993.
Used Super Tracs are collectors' and niche machines with prices by condition; engine (MAN parts better available than Schlüter parts), transmission and all-wheel steering, front cab and frame, hydraulics and tyres count.
Sources: SpecCodex register, model data: Schlüter Super Trac, Schlüter (Traktorenhersteller) (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 280 hp (206 kW)correct |
| Rated speed | 2.200/2.100 rpmcorrect |
| Torque | 1,140 Nmcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 11,413 cm³correct |
| Bore | 125 mmcorrect |
| Stroke | 155 mmcorrect |
| Compression ratio | 17.25correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,950 mmcorrect |
|---|---|
| Width | 2,620 mmcorrect |
| Height | 3,400 mmcorrect |
| Wheelbase | 2,950 mmcorrect |
| Unladen weight | 9,700 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 18V / 6Rcorrect |
| Forward gears | 18correct |
| Reverse gears | 6correct |
| Front tyres | 20.8 R 38correct |
| Rear tyres | 20.8 R 38correct |
| Top speed | 34.5 km/hcorrect |
Working data
| Fuel tank capacity | 430 lcorrect |
|---|
Origin and approval
| Units built | 2correct |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 21.2 kW/t (206 kW / 9.7 t)
Power class: Heavy (> 180 hp)
Stronger than 96% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Schlüter Super Trac 3000 TVL-LS have?
The Schlüter Super Trac 3000 TVL-LS delivers 280 hp.
How much does the Schlüter Super Trac 3000 TVL-LS weigh?
The unladen weight is 9,700 kg.
What engine does the Schlüter Super Trac 3000 TVL-LS have?
6 cylinders, 11,413 cm³ displacement, Diesel.
How fast does the Schlüter Super Trac 3000 TVL-LS go?
Top speed is 34.5 km/h.
What are the dimensions of the Schlüter Super Trac 3000 TVL-LS?
5,950 mm × 2,620 mm × 3,400 mm.
When was the Schlüter Super Trac 3000 TVL-LS built?
Production years: 03/1988–02/1989.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
