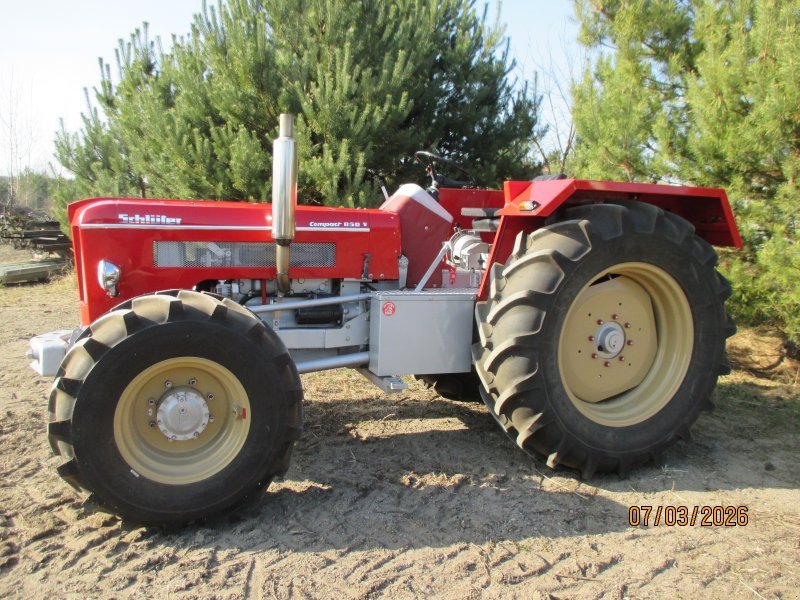

Schlüter Compact 750 V4
Built: 1984 · Series: Compact-Baureihe
More machines from model year 1984
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Schlüter Compact series (1978–1993) – the compact Freising tractors below the Super: Compact 550 to 1350, the number as hp, V for four-wheel drive, T for turbo, LS for powershift, 43 to 95 kW
The Compact series was Schlüter's answer to the criticism that the Freising tractors were too big and too heavy: from 1978 the maker built, alongside the Super large tractors, a more compact range with shorter wheelbase and lower height for the family farm, which ran until the end of production in 1993. The type logic follows the Schlüter system: the number gives the output in hp – Compact 550 about 55 hp, Compact 950 about 95 hp, Compact 1350 about 135 hp – V stands for four-wheel drive, V4 and V6 additionally give the cylinder count, T for turbocharger, LS for the version with powershift transmission, Special for special equipment; the Super 800 V is a transitional type from the older range. As with all Schlüters the engines came from in-house production, three- to six-cylinders of 3.4 to 5.9 litres.
Read on 3 more paragraphs
The register lists 11 versions with 42.5 to 95 kW (70 to 100 hp where output is recorded), 3,435 to 5,867 cm³ with three to six cylinders, rated speeds of 1,800 to 2,200 rpm, torque from 235 to 530 Nm, unladen weights from 2,690 to 5,200 kg, lengths from 3,510 to 4,220 mm, widths from 1,710 to 2,360 mm and heights from 2,220 to 2,775 mm – all diesel.
The Compacts shared engines and cabs with the Supers and were nevertheless a design of their own – Schlüter's attempt to hold its ground in the mid-range with small volumes against Fendt and Deutz, which failed in 1993 with the end of the brand.
Used Compacts are rarer than Supers and sought after by collectors; when buying, engine and transmission, the powershift on LS models, front axle and hydraulics and parts supply through Schlüter specialists are what count.
Sources: SpecCodex register, model data: Schlüter Compact-Baureihe, Schlüter (Traktorenhersteller) (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 70 hp (51.2 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,791 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,170 mmcorrect |
|---|---|
| Width | 1,970 mmcorrect |
| Height | 2,535 mmcorrect |
| Wheelbase | 2,400 mmcorrect |
| Ground clearance | 470 mmcorrect |
| Unladen weight | 3,900 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 16V / 8Rcorrect |
| Forward gears | 16correct |
| Front tyres | 16.9 R 24correct |
| Rear tyres | 18.4 R 34correct |
| Top speed | 38.3 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 1 ( Prototyp )correct |
Other data
| Linkage category | Cat IIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 13.1 kW/t (51 kW / 3.9 t)
Power class: Universal (40–100 hp)
Stronger than 48% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Schlüter Compact 750 V4 have?
The Schlüter Compact 750 V4 delivers 70 hp.
How much does the Schlüter Compact 750 V4 weigh?
The unladen weight is 3,900 kg.
What engine does the Schlüter Compact 750 V4 have?
4 cylinders, 3,791 cm³ displacement, Diesel.
How fast does the Schlüter Compact 750 V4 go?
Top speed is 38.3 km/h.
What are the dimensions of the Schlüter Compact 750 V4?
4,170 mm × 1,970 mm × 2,535 mm.
When was the Schlüter Compact 750 V4 built?
Production years: 1984.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
