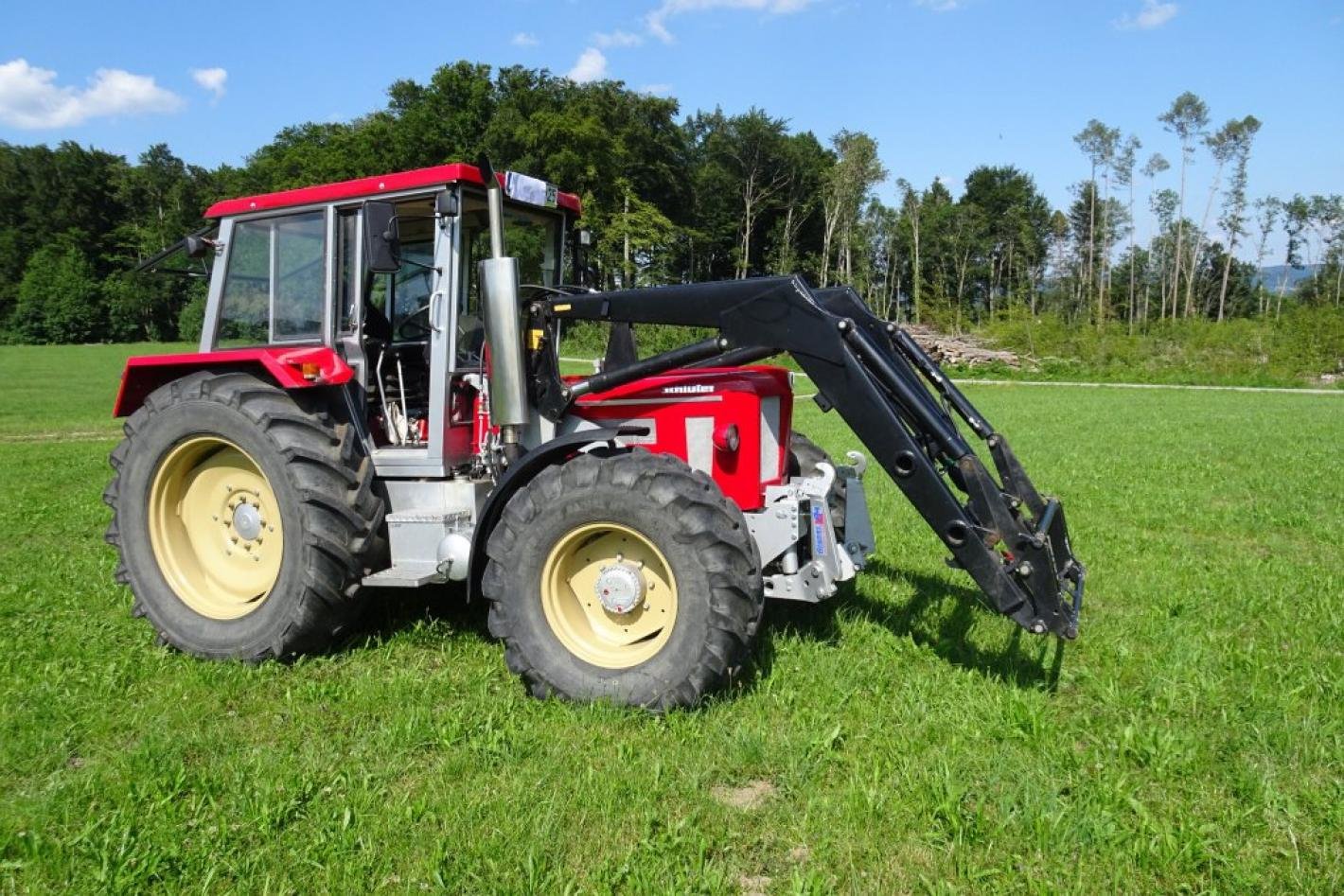

Schlüter Compact 1250 TV6/LS
Built: 12/1984–11/1993 · Series: Compact-Baureihe
More machines from model year 1984
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Schlüter Compact series (1978–1993) – the compact Freising tractors below the Super: Compact 550 to 1350, the number as hp, V for four-wheel drive, T for turbo, LS for powershift, 43 to 95 kW
The Compact series was Schlüter's answer to the criticism that the Freising tractors were too big and too heavy: from 1978 the maker built, alongside the Super large tractors, a more compact range with shorter wheelbase and lower height for the family farm, which ran until the end of production in 1993. The type logic follows the Schlüter system: the number gives the output in hp – Compact 550 about 55 hp, Compact 950 about 95 hp, Compact 1350 about 135 hp – V stands for four-wheel drive, V4 and V6 additionally give the cylinder count, T for turbocharger, LS for the version with powershift transmission, Special for special equipment; the Super 800 V is a transitional type from the older range. As with all Schlüters the engines came from in-house production, three- to six-cylinders of 3.4 to 5.9 litres.
Read on 3 more paragraphs
The register lists 11 versions with 42.5 to 95 kW (70 to 100 hp where output is recorded), 3,435 to 5,867 cm³ with three to six cylinders, rated speeds of 1,800 to 2,200 rpm, torque from 235 to 530 Nm, unladen weights from 2,690 to 5,200 kg, lengths from 3,510 to 4,220 mm, widths from 1,710 to 2,360 mm and heights from 2,220 to 2,775 mm – all diesel.
The Compacts shared engines and cabs with the Supers and were nevertheless a design of their own – Schlüter's attempt to hold its ground in the mid-range with small volumes against Fendt and Deutz, which failed in 1993 with the end of the brand.
Used Compacts are rarer than Supers and sought after by collectors; when buying, engine and transmission, the powershift on LS models, front axle and hydraulics and parts supply through Schlüter specialists are what count.
Sources: SpecCodex register, model data: Schlüter Compact-Baureihe, Schlüter (Traktorenhersteller) (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 120 hp (87.8 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 461 Nmcorrect |
| Speed at max. torque | 1,300 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,867 cm³correct |
| Bore | 102 mmcorrect |
| Stroke | 116 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,220 mmcorrect |
|---|---|
| Width | 2,360 mmcorrect |
| Height | 2,600 mmcorrect |
| Wheelbase | 2,431 mmcorrect |
| Unladen weight | 5,120 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 12V / 5 R ( LS: 24V / 12R )correct |
| Front tyres | 14.9 R 28correct |
| Rear tyres | 18.4 R 38correct |
| Top speed | 40 km/hcorrect |
Origin and approval
| Units built | 77 ( LS: 18 )correct |
|---|
Where this model stands
Power-to-weight ratio: 17.1 kW/t (88 kW / 5.1 t)
Power class: Large (100–180 hp)
Stronger than 74% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Schlüter Compact 1250 TV6/LS have?
The Schlüter Compact 1250 TV6/LS delivers 120 hp.
How much does the Schlüter Compact 1250 TV6/LS weigh?
The unladen weight is 5,120 kg.
What engine does the Schlüter Compact 1250 TV6/LS have?
6 cylinders, 5,867 cm³ displacement, Diesel.
How fast does the Schlüter Compact 1250 TV6/LS go?
Top speed is 40 km/h.
What are the dimensions of the Schlüter Compact 1250 TV6/LS?
4,220 mm × 2,360 mm × 2,600 mm.
When was the Schlüter Compact 1250 TV6/LS built?
Production years: 12/1984–11/1993.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
