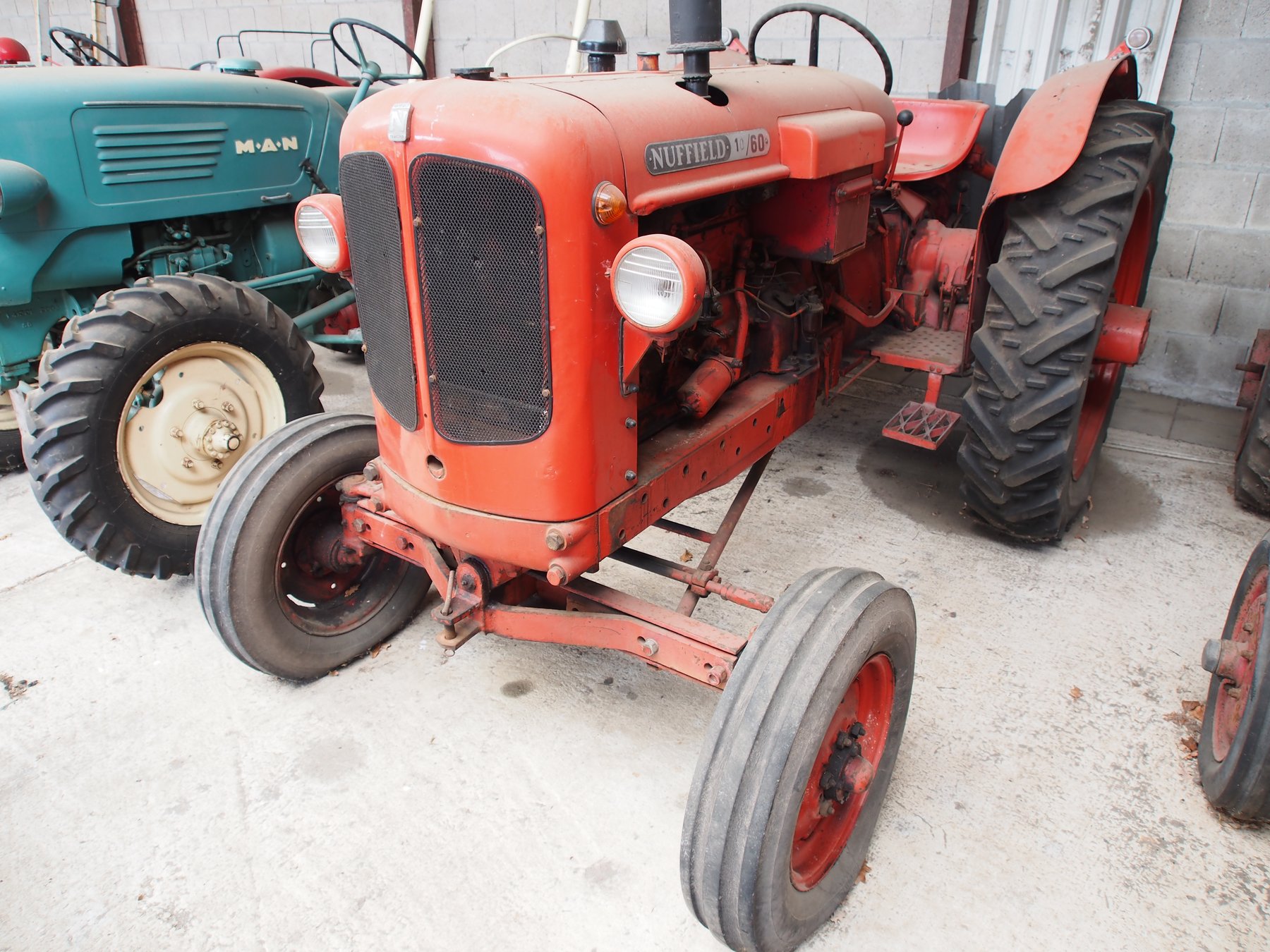

Nuffield 10/60
Built: 10/1964–07/1967 · Series: Other models
← Predecessor: 4/60 · Successor: 4/65 →
More machines from model year 1964
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Nuffield – other models: collective page of the British tractor brand of the Nuffield Organization (renamed Leyland from 1969), Universal range, BMC engines, 11.2 to 48.5 kW, 883 to 2,660 kg unladen weight
This page gathers the Nuffield tractors the register could not assign to a named range. Nuffield was the tractor brand of the British Nuffield Organization, which became one of the major British manufacturers with the Universal range from the 1940s; after the merger that formed the British Motor Corporation (BMC), engines came from BMC itself as well as from Morris/Wolseley and IMR, including the BMC OE4 type. From 1969, as part of the restructuring into British Leyland, the brand was renamed Leyland.
Read on 3 more paragraphs
The register lists here 23 versions with 11.2 to 48.5 kW from three- to four-cylinder engines with 948 to 3,770 cm³ displacement running at 2,000 to 2,500 revolutions per minute and torques of 52 to 230 Nm. Unladen weights range from 883 to 2,660 kg, lengths from 2,490 to 3,275 mm, widths from 1,510 to 2,330 mm and heights from 1,260 to 2,299 mm; PTO output lies between 55 and 60 hp, with a gross vehicle weight of 2,000 kg on record. The register lists diesel, diesel/petrol, petrol and gas/diesel as fuels.
Alongside Fordson and Massey Ferguson, Nuffield was one of the defining British tractor brands of the post-war years and was widespread above all in Britain, Ireland and the Commonwealth. The renaming to Leyland in 1969 marked the end of the brand, though its models are still maintained today on the British vintage-tractor market.
On used examples of these historic tractors, the condition of the engine and cooling system, clutch and gearbox, brakes and steering, and rust on the sheet-metal parts and mudguards all matter; on the petrol and mixed-fuel variants, carburettor condition is an additional check point. Spare parts today run mainly through dealers and clubs specialising in British vintage tractors.
Sources: SpecCodex register, model data: Nuffield (weitere Modelle), Nuffield Organization (Wikipedia)
Technical data
Engine
| Engine make | BMCcorrect |
|---|---|
| Engine model | BMC OE4correct |
| Fuel | dieselcorrect |
| Power | 58.3 hp (42.9 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Torque | 230 Nmcorrect |
| Speed at max. torque | 1,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,770 cm³ (230 cu. in (3.8 litre))correct |
| Bore | 100 mmcorrect |
| Bore | 3.937 in (100 mm)correct |
| Stroke | 120 mmcorrect |
| Stroke | 4.724 in (120 mm)correct |
| Compression ratio | 16.5correct |
| Injection pressure | 176 barcorrect |
| Naturally aspirated | naturally aspiratedcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,086 mmcorrect |
|---|---|
| Width | 1,753 mmcorrect |
| Height | 2,051 mmcorrect |
| Wheelbase | 1,981 mmcorrect |
| Ground clearance | 320 mmcorrect |
| Unladen weight | 2,660 kg (5,865 lbs)correct |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 10 V/2 Rcorrect |
| Gearbox make | BMCcorrect |
| Forward gears | 5 x Hi/lowcorrect |
| Reverse gears | 1 x Hi/lowcorrect |
| Front tyres | 6.00-16 ASFcorrect |
| Rear tyres | 11-36 AScorrect |
| Top speed | 25 km/hcorrect |
Working data
| Fuel tank capacity | 63.6 lcorrect |
|---|
Origin and approval
| Plant | Bathgate, Scotlandcorrect |
|---|---|
| Construction | semi-frame constructioncorrect |
| Units built | 41,460correct |
Other data
| Linkage category | Cat I, Cat II or Cat IIIcorrect |
|---|---|
| PTO output | 55 hpcorrect |
| Predecessor | Nuffield 4/60correct |
| Successor | Nuffield 4/65correct |
Where this model stands
Power-to-weight ratio: 16.1 kW/t (43 kW / 2.7 t)
Power class: Universal (40–100 hp)
Stronger than 40% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Nuffield 10/60 have?
The Nuffield 10/60 delivers 58.3 hp.
How much does the Nuffield 10/60 weigh?
The unladen weight is 2,660 kg.
What engine does the Nuffield 10/60 have?
4 cylinders, 3,770 cm³ displacement, Diesel.
How fast does the Nuffield 10/60 go?
Top speed is 25 km/h.
What is the PTO output of the Nuffield 10/60?
PTO output is 55 hp.
What are the dimensions of the Nuffield 10/60?
3,086 mm × 1,753 mm × 2,051 mm.
When was the Nuffield 10/60 built?
Production years: 10/1964–07/1967.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 46 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
