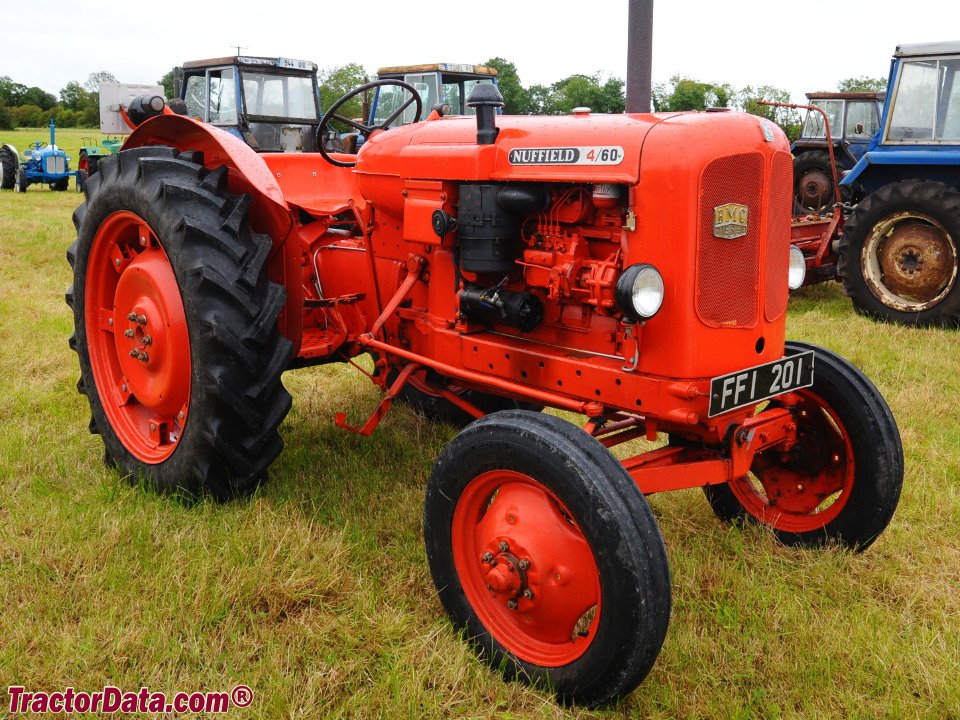

Nuffield 4/60 (460)
Built: 11/1961–09/1964 · Series: Other models
More machines from model year 1961
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Nuffield – other models: collective page of the British tractor brand of the Nuffield Organization (renamed Leyland from 1969), Universal range, BMC engines, 11.2 to 48.5 kW, 883 to 2,660 kg unladen weight
This page gathers the Nuffield tractors the register could not assign to a named range. Nuffield was the tractor brand of the British Nuffield Organization, which became one of the major British manufacturers with the Universal range from the 1940s; after the merger that formed the British Motor Corporation (BMC), engines came from BMC itself as well as from Morris/Wolseley and IMR, including the BMC OE4 type. From 1969, as part of the restructuring into British Leyland, the brand was renamed Leyland.
Read on 3 more paragraphs
The register lists here 23 versions with 11.2 to 48.5 kW from three- to four-cylinder engines with 948 to 3,770 cm³ displacement running at 2,000 to 2,500 revolutions per minute and torques of 52 to 230 Nm. Unladen weights range from 883 to 2,660 kg, lengths from 2,490 to 3,275 mm, widths from 1,510 to 2,330 mm and heights from 1,260 to 2,299 mm; PTO output lies between 55 and 60 hp, with a gross vehicle weight of 2,000 kg on record. The register lists diesel, diesel/petrol, petrol and gas/diesel as fuels.
Alongside Fordson and Massey Ferguson, Nuffield was one of the defining British tractor brands of the post-war years and was widespread above all in Britain, Ireland and the Commonwealth. The renaming to Leyland in 1969 marked the end of the brand, though its models are still maintained today on the British vintage-tractor market.
On used examples of these historic tractors, the condition of the engine and cooling system, clutch and gearbox, brakes and steering, and rust on the sheet-metal parts and mudguards all matter; on the petrol and mixed-fuel variants, carburettor condition is an additional check point. Spare parts today run mainly through dealers and clubs specialising in British vintage tractors.
Sources: SpecCodex register, model data: Nuffield (weitere Modelle), Nuffield Organization (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 58.3 hp (42.9 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Torque | 228 Nmcorrect |
| Speed at max. torque | 1,250 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,770 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 16.5correct |
| Injection pressure | 178 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,275 mmcorrect |
|---|---|
| Width | 1,930 mmcorrect |
| Height | 2,050 mmcorrect |
| Wheelbase | 1,981 mmcorrect |
| Ground clearance | 320 mmcorrect |
| Unladen weight | 2,371 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 5 V/1 Rcorrect |
| Front tyres | 7.50-18 ASFcorrect |
| Rear tyres | 14.00-30 AScorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | semi-frame constructioncorrect |
|---|---|
| Units built | 24,290correct |
Where this model stands
Power-to-weight ratio: 18.1 kW/t (43 kW / 2.4 t)
Power class: Universal (40–100 hp)
Stronger than 40% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Nuffield 4/60 (460) have?
The Nuffield 4/60 (460) delivers 58.3 hp.
How much does the Nuffield 4/60 (460) weigh?
The unladen weight is 2,371 kg.
What engine does the Nuffield 4/60 (460) have?
4 cylinders, 3,770 cm³ displacement, Diesel.
How fast does the Nuffield 4/60 (460) go?
Top speed is 25 km/h.
What are the dimensions of the Nuffield 4/60 (460)?
3,275 mm × 1,930 mm × 2,050 mm.
When was the Nuffield 4/60 (460) built?
Production years: 11/1961–09/1964.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
