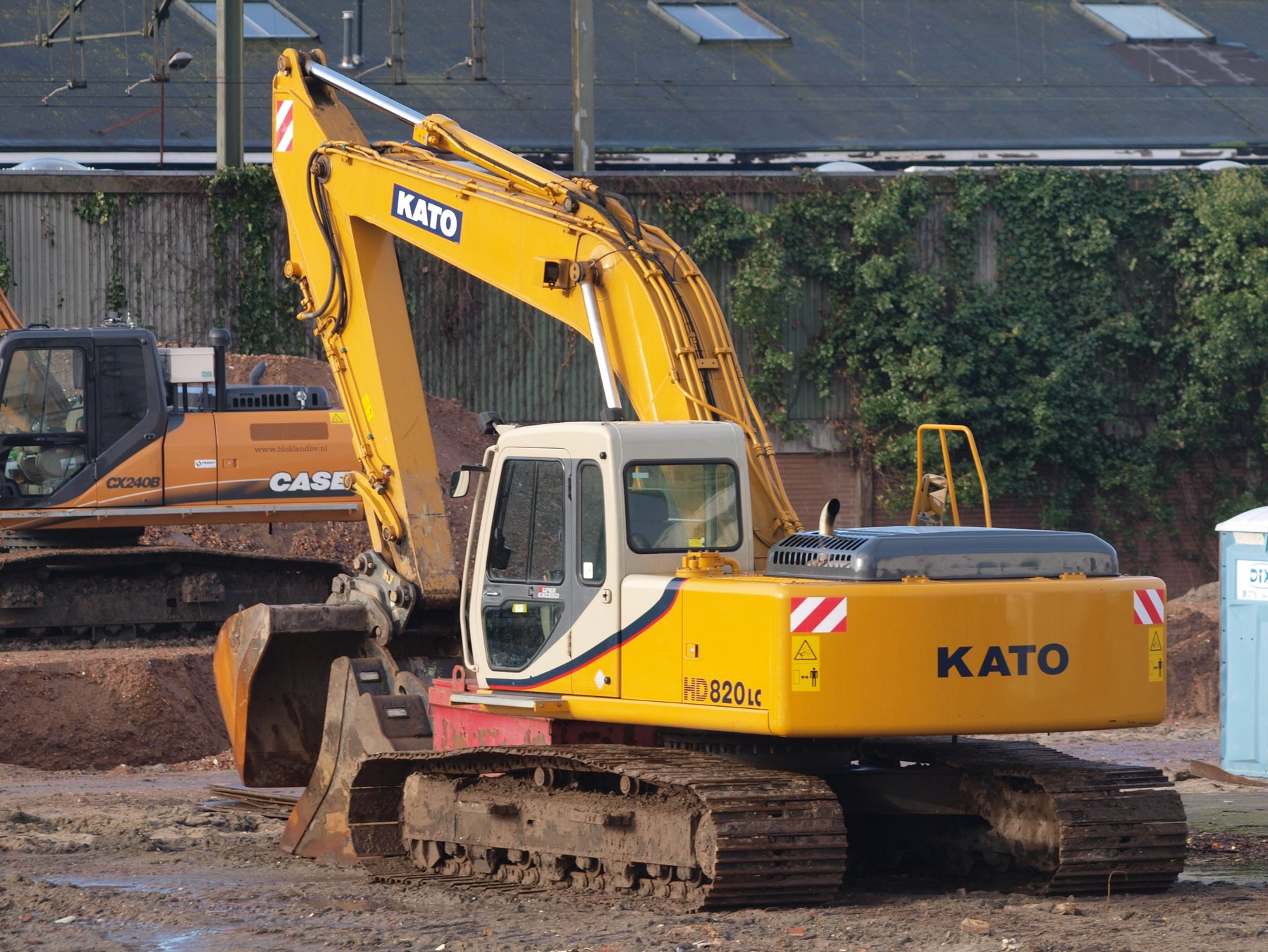

Kato HD820IIILC

Series: Kato Hydraulic Excavator

Source: https://commons.wikimedia.org/wiki/File:Kato_HD820lc_at_Delf

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Kato HD820IIILC is a model in the Kato Hydraulic Excavator series. The engine delivers 149.6 hp (110.1 kW), with a displacement of 5,860 cm³. Torque is 580 Nm. The unladen weight is 20,300 kg. Ground clearance is 466.3 mm. The tank holds 320.2 litres. The pump delivers 470.1 l/min. The hydraulic tank holds 260.1 litres. Working pressure is 329 bar. The cooling system holds 23.1 litres. The oil fill is 22.3 litres. The electrical system runs on 24 V. The engine fitted is the C 6D34-TLE2A. The Kato Hydraulic Excavator series covers 40 models. Rated output within it ranges from 83 to 319.6 hp; the HD820IIILC sits in the lower part of that range with 149.6 hp. Its immediate neighbours are the HD823MR below it with 145.5 hp and the HD820V above it with 153 hp. 62 Kato models across 5 series are on record. The model is listed under Excavators & compaction. 16 verified figures from 1 source are on file.

Kato HD excavators: how the number signals weight class and MR/LC the undercarriage

Kato has built hydraulic excavators since 1967, marking them with the "HD" code plus a model number. Across several model pairs in the SpecCodex database, the trailing digits of the number visibly track the approximate weight class in tonnes — the 40 recorded HD models span 10,500 to 46,200 kg operating weight, from compact to large building-site excavators.

Read on 3 more paragraphs

Trailing letters denote the body configuration: "MR" (Minimal/Mid Radius) marks machines with an especially short rear overhang for tight job sites, while "LC" (Long Crawler) denotes widened, elongated tracks giving more ground contact on soft terrain. Further suffixes such as "E" or "V" mark additional equipment or control variants within the same weight class.

For the machines recorded in the database, engine output ranges from 61 to 235 kW, displacement from 3,298 to 11,946 cm³, torque from 294 to 1,245 Nm, and cylinder count from 4 to 6.

When buying an MR variant, check the condition of the short rear body and counterweight mounting; on LC models, check track tension and track-pad wear. In general, check the hour meter, hydraulic cylinder seal condition, and test the bucket and boom under load. Models such as HD512, HD820, HD513MR and HD820LC illustrate the range of body configurations.

Sources: Kennwerte der Modelle Kato Hydraulic Excavator, – History, Kato Works Co., Ltd., – HD823MR-8, Kato CME (MR-Bauform), – Kato HD512E, RitchieSpecs, – Kato HD820V, RitchieSpecs

Technical data

Engine

Engine modelC 6D34-TLE2Acorrect
Power149.6 hp (110.1 kW)correct
Torque580correct
Displacement5,860 cm³correct
Aspirationturbochargedcorrect
Coolant capacity23.1 lcorrect
Engine oil capacity22.3 lcorrect

Dimensions and weights

Ground clearance466.3correct
Unladen weight20,300 kgcorrect

Working data

Pump flow470.1 l/mincorrect
Hydraulic oil capacity260.1 lcorrect
Hydraulic pressure329 barcorrect
Fuel tank capacity320.2 lcorrect

Other data

Cab height2,801.1correct
System voltage24 Vcorrect

More machines with this engine (C 6D34-TLE2A, 6)

Where this model stands

Power-to-weight ratio: 5.4 kW/t (110 kW / 20.3 t)

Stronger than 48% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Kato HD820IIILC have?

The Kato HD820IIILC delivers 150 hp.

How much does the Kato HD820IIILC weigh?

The unladen weight is 20,300 kg.

What engine does the Kato HD820IIILC have?

5,860 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
