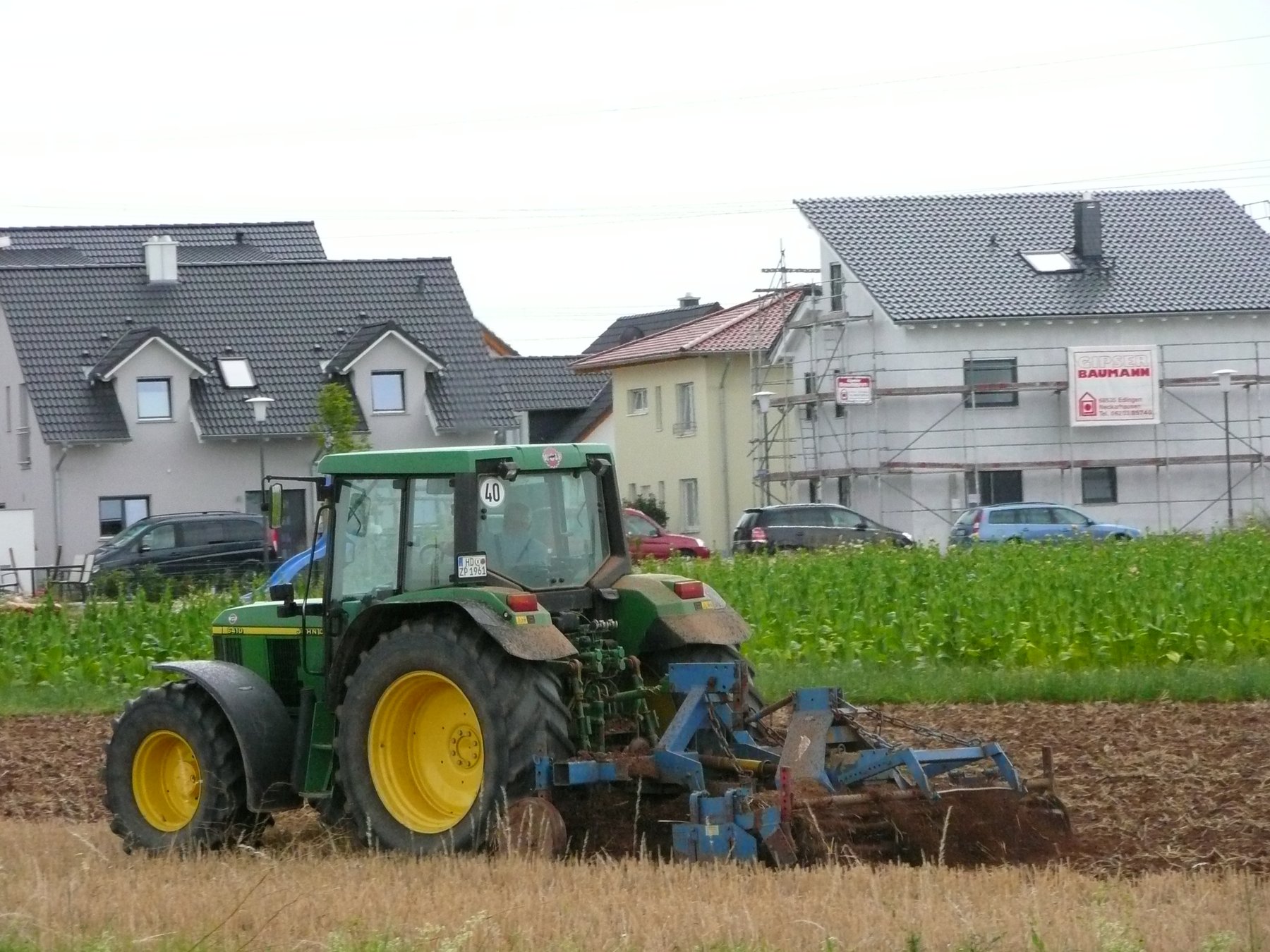

John Deere 6410 (A)
Built: 1997–2003 · Series: 6010er
More machines from model year 1997
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
John Deere 6010 Series – Second Mannheim Generation, 1997 to 2003: four- and six-cylinder diesels with 77.3 to 103 kW (105 to 135 hp), 4,525 to 6,788 cm³ displacement
The 6010 series replaced the 6000 series in 1997 and was built at the Mannheim plant until 2003. According to the register, output of the recorded models ranges from 77.3 to 103 kW, with models rated in horsepower from 105 to 135 hp, using four- and six-cylinder engines with displacement from 4,525 to 6,788 cm³.
Read on 3 more paragraphs
Recorded operating weight runs from 3,595 to 6,125 kg, wheelbase from 2,430 to 2,650 mm, and rated speed of the listed models is 30 km/h. The flagship 6910 S joined the series only in 1999 as a particularly powerful version.
The 6010 series targeted medium to large arable and mixed farms in Europe. For a used model, check the gearbox variant, as both PowrQuad and AutoQuad versions were offered during the production run.
At outputs above 75 kW, turbocharging with an intercooler is practically standard on six-cylinder diesel engines of this generation, to reduce specific fuel consumption. The three-point hitch of the 6010 series matched category II under ISO 730 throughout the range. Parts for the 6010 series remain well available through the John Deere dealer network. AutoQuad transmissions additionally automate the change between power-shift groups, whereas with PowrQuad the driver selects the group manually; both allow shifting within one group without using the clutch under load.
Sources: SpecCodex register, model data: John Deere 6010er, John Deere
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 105 hp (77.3 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,525 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,610 mmcorrect |
|---|---|
| Width | 2,220 mmcorrect |
| Height | 2,694 mmcorrect |
| Wheelbase | 2,430 mmcorrect |
| Ground clearance | 436 mmcorrect |
| Unladen weight | 4,100 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 16V/16R or 24V/24Rcorrect |
| Front tyres | 7.50-18 ASF (A: 480/65 R 24 AS)correct |
| Rear tyres | 540/65 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | bridge-frame constructioncorrect |
|---|
Where this model stands
Power-to-weight ratio: 18.9 kW/t (77 kW / 4.1 t)
Power class: Large (100–180 hp)
Stronger than 69% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the John Deere 6410 (A) have?
The John Deere 6410 (A) delivers 105 hp.
How much does the John Deere 6410 (A) weigh?
The unladen weight is 4,100 kg.
What engine does the John Deere 6410 (A) have?
4 cylinders, 4,525 cm³ displacement, Diesel.
How fast does the John Deere 6410 (A) go?
Top speed is 30 km/h.
What are the dimensions of the John Deere 6410 (A)?
4,610 mm × 2,220 mm × 2,694 mm.
When was the John Deere 6410 (A) built?
Production years: 1997–2003.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
