JLG 2646ES – specifications

Series: JLG Scissor Lift

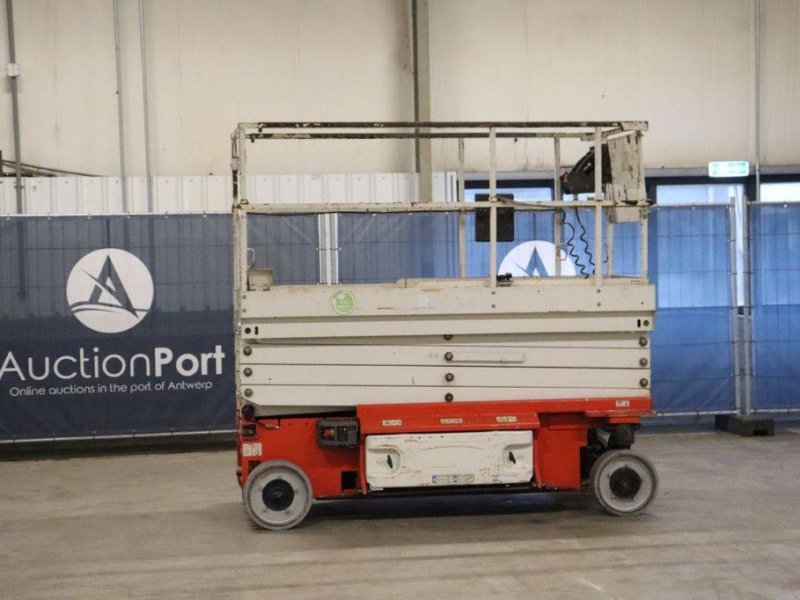

The 2646ES is a battery-powered scissor lift manufactured by JLG, belonging to the JLG Scissor Lift series. The ES designation indicates the Electric Slab configuration, suggesting use indoors and on level surfaces. The model name follows American convention, where the first digits represent the platform height in feet and the last digits represent the platform width in inches. With a working height of 9,920 mm and a platform width of 1,120.1 mm, this model is positioned in a specific segment of electric aerial work platforms.

Build year not documented · Data origin: Directory data · sources

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The empty weight of 2,163 kg requires appropriate vehicle load capacity for transport planning. The maximum speed of 4 km/h is designed for safe movement in enclosed spaces. A turning radius of 2,170 mm enables maneuvering in narrow aisles. The lifting capacity of 450 kg and the platform load capacity of 454 kg allow for the transport of tools and materials. The lifting time of 41 seconds and the lowering time of 50 seconds determine the work rhythm when reaching the maximum height of 9,920 mm. The ground clearance of 127 mm limits obstacle traversal, while the gradeability of 25% permits light ramps.

In comparison within the series, the 2646ES ranks 17th out of 24 models with specified empty weights. The next smaller model is the 2632ES at 2,102.4 kg, while the 4045R at 3,175.1 kg is the next larger model. The weight is practically identical to that of the 2630ES and 3246ES models. The series weight range extends from 122.9 to 7,711.1 kg. This classification shows that the machine belongs to the medium-weight electric scissor lifts designed for precise work in halls and on smooth floors.

JLG scissor lifts ES, R, RT, LE and CRT/LRT – from McConnellsburg, Pennsylvania: the number as platform height in feet and width in inches, electric for the hall, diesel for the site, 18 to 61 kW

JLG of McConnellsburg, Pennsylvania, is the world's largest maker of aerial work platforms – founded in 1969 by John L. Grove, who gave it its name, part of the Oshkosh group since 2006 – and scissor lifts are the volume product. The type logic follows the American convention: the first digits give the platform height in feet, the last the platform width in inches – a 1930ES is 19 ft high and 30 in wide, a 3246ES 32 ft and 46 in, a 4394RT 43 ft and 94 in. The letters name drive and duty: ES stands for Electric Slab, the battery-powered indoor lift with electric drive motors, R for the entry range, RT for Rough Terrain with diesel engine and all-wheel drive, LE for the electric rough-terrain lift, CRT and LRT for Compact and Large Rough Terrain, M for the version with mobile drive; the RTS models are older rough-terrain lifts.

Read on 3 more paragraphs

The register lists 24 versions with service weights from 123 to 7,711 kg, lengths from 1,753 to 5,180 mm, widths from 760 to 2,408 mm and platform capacities from 230 to 1,020 kg; the diesel models deliver 18.3 to 61.1 kW with Kubota engines, the older ones with Ford VSG-413 and LRG-425 petrol engines.

The 760 mm wide 1930ES is the most-hired work platform in the world – it drives through any standard door and lifts two people to 5.8 m platform height; the 4394RT with 94 inch width and extension deck is the site lift for façades and hall roofs.

On used lifts, operating hours, battery condition on ES models, play in scissor pins and rails, hydraulic tightness, the function of tilt and overload sensors and a valid periodic inspection are what count.

Sources: SpecCodex register, model data: JLG Scherenbühnen, JLG Industries (Oshkosh, Hersteller)

Technical data

Engine

Drive typeelectriccorrect

Dimensions and weights

Length2,540 mmcorrect
Width1,170 mmcorrect
Height2,410 mmcorrect
Ground clearance127 mmcorrect
Unladen weight2,163 kgcorrect
Platform length2,500.1 mmcorrect
Platform width1,120.1 mmcorrect

Drivetrain and chassis

Tyre size16x5 incorrect
Tyre typeSolid, Non-markingcorrect
Top speed4 km/hcorrect
Turning radius2,170 mmcorrect

Working data

Lifting capacity450 kgcorrect
Working height9,920 mmcorrect
Hydraulic oil capacity6.4 lcorrect
Lift time41 scorrect
Lowering time50 scorrect
Platform extension900.2 mmcorrect
Platform capacity454 kgcorrect
Gradeability25 %correct

Electrical data

Battery capacity200 Ahcorrect
Number of batteries4correct

Other data

System voltage24 Vcorrect

Frequently asked questions

How much does the JLG 2646ES weigh?

The unladen weight of the JLG 2646ES is 2,163 kg.

What are the dimensions of the JLG 2646ES?

Dimensions of the JLG 2646ES: length 2,540 mm, width 1,170 mm, height 2,410 mm.

Used listings – figures from public listings

Between May and November 2026, speccodex recorded 58 public used-machine listings for JLG 2646ES on 3 platforms. Asking prices ranged from €2,500 to €21,595 (median €5,525), years of manufacture between 2005 and 2025. 6 of the listings were auctions.

Asking price by year of manufacture

Year of manufactureMedian asking priceListings
2024–202619,422 €4
2018–20208,500 €7
2015–20175,425 €12
2012–20145,250 €7
2009–20115,295 €4
2006–20084,810 €8

Operating hours stated in the listings (median) by machine age: 8–12 years: 418 h (23 listings); over 12 years: 766 h (12 listings).

Offered among others in Germany (33%), the Netherlands (20%) and Belgium (14%); shares refer to listings that state a location.

Asking prices are sellers' demands, not achieved sale prices. Basis: public listings, recorded and analysed by speccodex. As of: 22 Nov 2026. Sellers usually do not state whether prices are net or gross.

How much does a used JLG 2646ES cost? Price, range and year comparison

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
