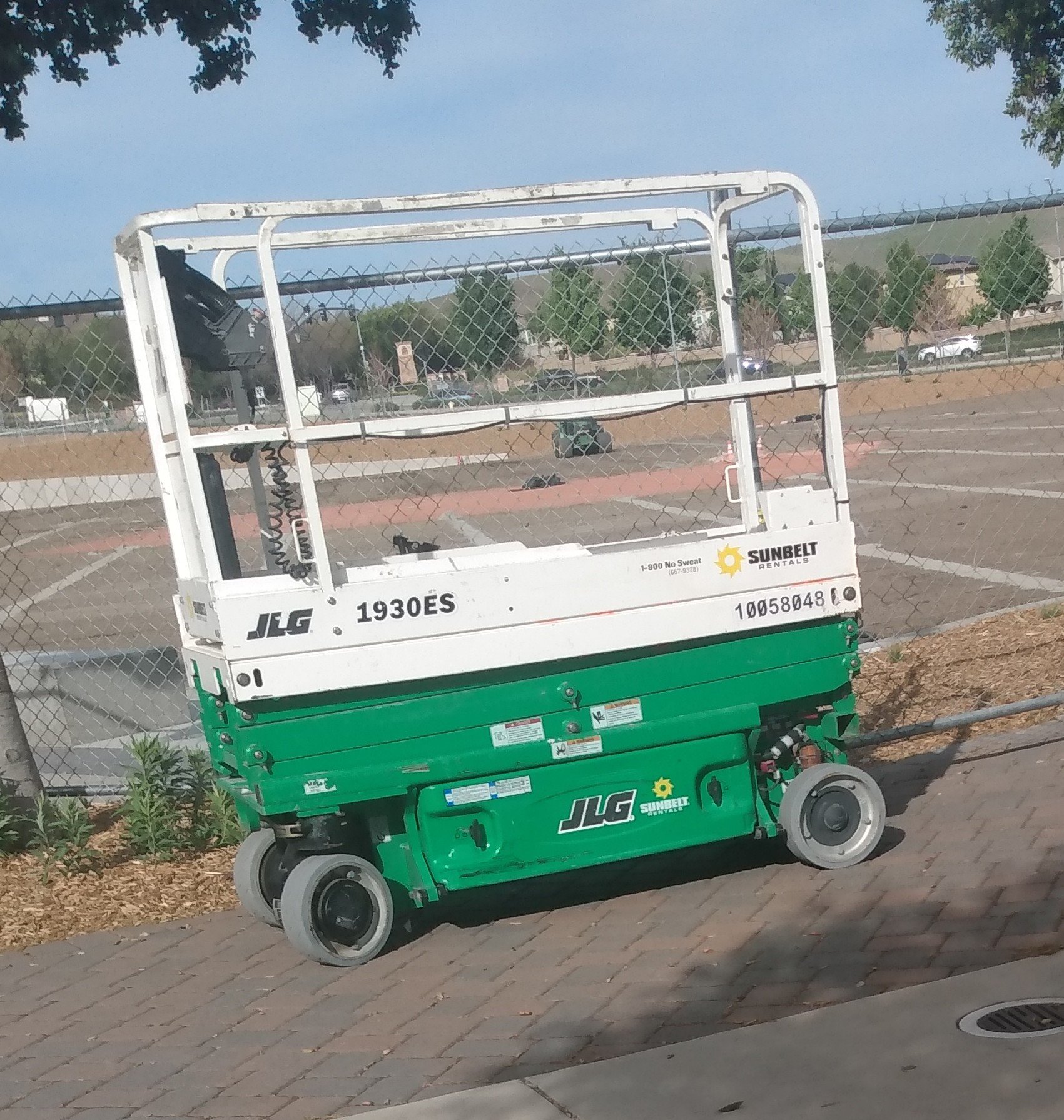

JLG 1930ES – specifications

Series: JLG Scissor Lift

Build year not documented · Data origin: Directory data · sources

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The JLG 1930ES is an electrically powered scissor lift from the JLG Scissor Lift series. As a model in the ES series, it is designed as a battery-powered indoor lift. The model designation follows the American convention, indicating a platform height of 19 feet and a platform width of 30 inches. The unit belongs to the group of aerial work platforms and is used for indoor operations.

With a working height of 7,900 mm, the machine provides access to higher areas in enclosed spaces. The platform has a load capacity of 227 kg, allowing the use of one person with tools or light materials. The integrated platform extension of 900.2 mm extends lateral reach without changing the base position. A speed of 4.8 km/h and a turning radius of 1,800 mm facilitate maneuvering in confined environments. The non-marking solid tires, size 12.5x4 in, protect sensitive floors. The lift time of 22 s and the lower time of 28 s determine the rhythm of height adjustment.

Compared to other models in the series, the JLG 1930ES ranks last in terms of empty weight. It weighs 122.9 kg, making it the lightest model with a specified weight in this series. The next larger model in the weight class is the 1932R, with an empty weight of 1,193 kg. The total range of empty weights within the series extends from 122.9 kg to 7,711.1 kg.

JLG scissor lifts ES, R, RT, LE and CRT/LRT – from McConnellsburg, Pennsylvania: the number as platform height in feet and width in inches, electric for the hall, diesel for the site, 18 to 61 kW

JLG of McConnellsburg, Pennsylvania, is the world's largest maker of aerial work platforms – founded in 1969 by John L. Grove, who gave it its name, part of the Oshkosh group since 2006 – and scissor lifts are the volume product. The type logic follows the American convention: the first digits give the platform height in feet, the last the platform width in inches – a 1930ES is 19 ft high and 30 in wide, a 3246ES 32 ft and 46 in, a 4394RT 43 ft and 94 in. The letters name drive and duty: ES stands for Electric Slab, the battery-powered indoor lift with electric drive motors, R for the entry range, RT for Rough Terrain with diesel engine and all-wheel drive, LE for the electric rough-terrain lift, CRT and LRT for Compact and Large Rough Terrain, M for the version with mobile drive; the RTS models are older rough-terrain lifts.

Read on 3 more paragraphs

The register lists 24 versions with service weights from 123 to 7,711 kg, lengths from 1,753 to 5,180 mm, widths from 760 to 2,408 mm and platform capacities from 230 to 1,020 kg; the diesel models deliver 18.3 to 61.1 kW with Kubota engines, the older ones with Ford VSG-413 and LRG-425 petrol engines.

The 760 mm wide 1930ES is the most-hired work platform in the world – it drives through any standard door and lifts two people to 5.8 m platform height; the 4394RT with 94 inch width and extension deck is the site lift for façades and hall roofs.

On used lifts, operating hours, battery condition on ES models, play in scissor pins and rails, hydraulic tightness, the function of tilt and overload sensors and a valid periodic inspection are what count.

Sources: SpecCodex register, model data: JLG Scherenbühnen, JLG Industries (Oshkosh, Hersteller)

Technical data

Engine

Drive typeelectriccorrect

Dimensions and weights

Length1,880 mmcorrect
Width790 mmcorrect
Height2,010 mmcorrect
Ground clearance101.6 mmcorrect
Unladen weight122.9 kgcorrect
Platform length1,870.2 mmcorrect
Platform width760.2 mmcorrect

Drivetrain and chassis

Tyre size12.5x4 incorrect
Tyre typeSolid, Non-markingcorrect
Top speed4.8 km/hcorrect
Turning radius1,800 mmcorrect

Working data

Working height7,900 mmcorrect
Hydraulic oil capacity4.9 lcorrect
Lift time22 scorrect
Lowering time28 scorrect
Platform extension900.2 mmcorrect
Platform capacity227 kgcorrect
Gradeability25 %correct

Electrical data

Number of batteries4correct

Other data

System voltage24 Vcorrect

Frequently asked questions

How much does the JLG 1930ES weigh?

The unladen weight is 123 kg.

What are the dimensions of the JLG 1930ES?

1,880 mm × 790 mm × 2,010 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
