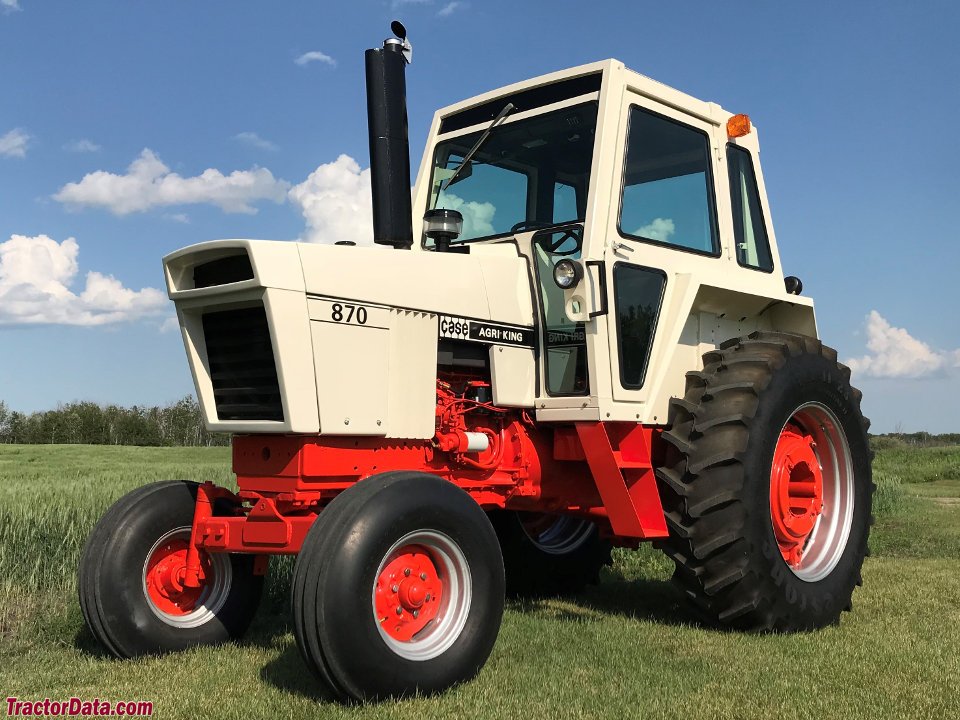

JI Case 870
Built: 1969–1973 · Series: 70 er Baureihe
More machines from model year 1969
J.I. Case 70 series (1969–1978) – 470 to 1570: Agri-King, the first turbo Case 1175, the 1570 with 180 hp, Power Shift and the size logic of the first digit, 25 to 134 kW
The 70 series was Case's tractor programme of the Tenneco years from 1969 to 1978 – the successor to the 30s and the range with which Case united its large tractors from Racine, Wisconsin, under the Agri-King name. The type logic: the first digit (on the four-digit models the first two) orders the size class in ascending order – 470 and 570 the small four-cylinders, 770 to 970 the mid-range, 1070 to 1370 the six-cylinder large tractors, 1570 the top with 180 hp, around 1976 the world's strongest two-wheel-drive tractor – the 70 the series; the 1175 was Case's first turbocharged tractor in 1970. Five of the eleven register models were still offered optionally with petrol, the rest are diesel.
Read on 3 more paragraphs
The register lists 11 versions with 25.4 to 133.9 kW, 3,087 to 8,263 cm³ with four or six cylinders, torque from 520 to 698 Nm, unladen weights from 1,769 to 7,389 kg, lengths from 3,302 to 4,623 mm, widths from 1,605 to 2,438 mm and heights from 1,346 to 2,950 mm.
The Agri-Kings brought the twelve-speed Power Shift as full equipment and the air-conditioned cab with which Case set the comfort standard of American large tractors in the 1970s; the 1370 with the 8.3-litre six was the range's best seller.
Used Agri-Kings are common collector and working tractors in North America; when buying, engine and turbocharger, the Power Shift transmission (clutch packs and control valves), hydraulics and cab electrics are what count.
Sources: SpecCodex register, model data: J.I. Case 70er-Baureihe, Case Corporation (Wikipedia)
Technical data
Engine
| Fuel | Diesel/Benzincorrect |
|---|---|
| Power | 71.7 hp (52.7 kW)correct |
| Rated speed | 1.900/2.000/2.100 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 5,507 cm³correct |
| Bore | 117.48 mmcorrect |
| Stroke | 127 mmcorrect |
| Compression ratio | 16.5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,886 mmcorrect |
|---|---|
| Width | 2,235 mmcorrect |
| Height | 1,702 mmcorrect |
| Wheelbase | 2,565 mmcorrect |
| Ground clearance | 381 mmcorrect |
| Unladen weight | 4,175 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 8 V/2 R and 12 V/3 Rcorrect |
| Front tyres | 7.50-16 ASFcorrect |
| Rear tyres | 18.4-34 AScorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | frame constructioncorrect |
|---|---|
| Units built | 3,238correct |
Where this model stands
Power-to-weight ratio: 12.6 kW/t (53 kW / 4.2 t)
Power class: Universal (40–100 hp)
Stronger than 49% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the JI Case 870 have?
The JI Case 870 delivers 71.7 hp.
How much does the JI Case 870 weigh?
The unladen weight is 4,175 kg.
What engine does the JI Case 870 have?
4 cylinders, 5,507 cm³ displacement, Diesel/Benzin.
How fast does the JI Case 870 go?
Top speed is 25 km/h.
What are the dimensions of the JI Case 870?
3,886 mm × 2,235 mm × 1,702 mm.
When was the JI Case 870 built?
Production years: 1969–1973.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
