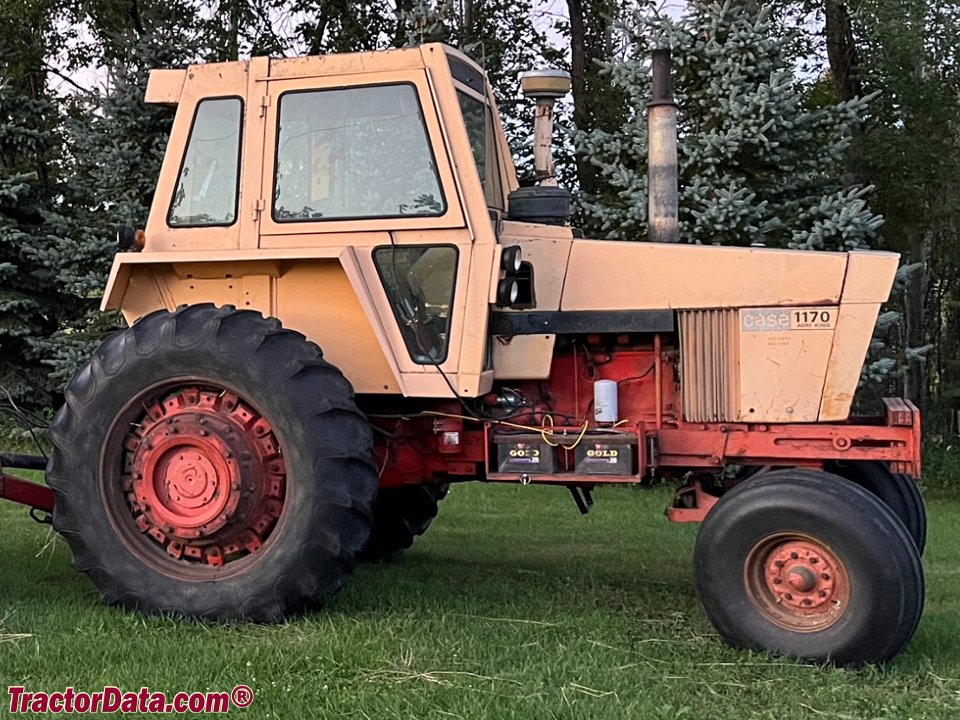

JI Case 1170
Lata produkcji: 1970–1972 · Seria: 70 er Baureihe
Dane techniczne
| Construction | Rahmenbauweise |
| Cooling | Wasserkühlung |
| Cylinders | 6 |
| Displacement cm3 | 7391 cm3 |
| Drive type | Heckantrieb |
| Fuel | Diesel |
| Gearbox | 8 V/2 R und 12 V/3 R |
| Ground clearance mm | 565 mm |
| Height mm | 2950 mm |
| Length mm | 4370 mm |
| Power km | 123.6 KM |
| Power kw | 90.9 kW |
| Rated rpm | 2.100 obr./min |
| Tires front | 9.50-20 ASF |
| Tires rear | 20.8-38 AS |
| Top speed kmh | 25 km/h |
| Units built | 1.816 |
| Weight kg | 6142 kg |
| Wheelbase mm | 2743 mm |
| Width mm | 2235 mm |
