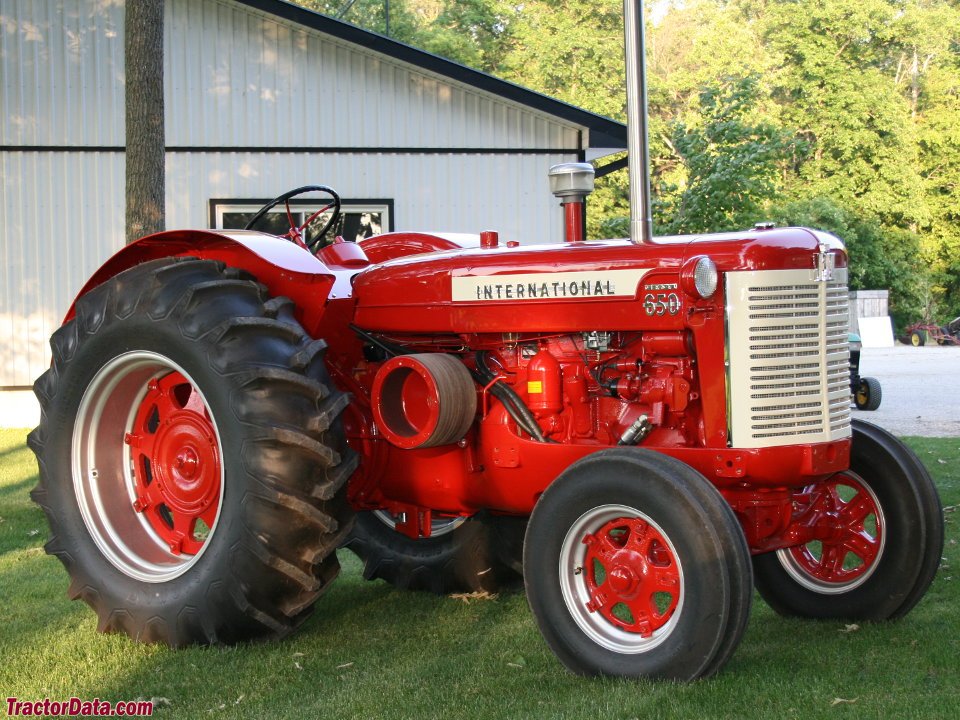

International Harvester 650
Built: 1956–1958 · Series: 50 er-Serie
More machines from model year 1956
International Harvester Farmall 350 to W-450 (1950s) – the multi-fuel field tractors from Rock Island: petrol, LPG or diesel by choice, four-cylinder, 29 to 43 kW, 2.08 to 2.8 t
International Harvester built one of the most defining American tractor families at its Farmall Works plant in Rock Island, Illinois, with the Farmall range; the 350 and 450 models of the 1950s were offered as the classic narrow-front Farmall, as the 350 Utility with a conventional front axle, or as the W-450 standard tractor. A distinctive feature of this range was the free choice of fuel: the same four-cylinder engines were offered for petrol, LPG or diesel, letting farmers choose according to local fuel availability and price.
Read on 3 more paragraphs
The register lists 5 versions with engines of 2,875 to 5,734 cm³, outputs of 28.7 to 43.2 kW and rated speeds of 1,450 to 2,000 rpm. Service weights range from 2,084 to 2,799 kg, lengths from 3,023 to 3,632 mm, widths from 1,626 to 2,134 mm.
The 50 series competed directly with John Deere and Massey-Harris in the North American mid-size segment of the 1950s; the classic Farmall's narrow-front design was optimised for row-crop corn work, while the 350 Utility and W-450, as standard tractors with a fixed front axle, took on broader tasks.
On used tractors, operating hours, the condition of carburettor or injection pump depending on the fuel variant, the LPG system and its tightness on the liquid-gas models, clutch and gearbox, and rust on sheet-metal parts count; parts supply runs through Case IH as legal successor to International Harvester.
Sources: SpecCodex register, model data: International Harvester 50er-Serie, Case IH (Rechtsnachfolger International Harvester)
Technical data
Engine
| Fuel | Benzin/Diesel/LPGcorrect |
|---|---|
| Power | 58.7 hp (43.2 kW)correct |
| Rated speed | 1,500 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 5,734 cm³correct |
| Bore | 114.3 mmcorrect |
| Stroke | 139.7 mmcorrect |
| Compression ratio | 6.12correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,429 mmcorrect |
|---|---|
| Width | 1,930 mmcorrect |
| Height | 1,822 mmcorrect |
| Wheelbase | 2,121 mmcorrect |
| Ground clearance | 381 mmcorrect |
| Unladen weight | 2,799 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 5 V/1 Rcorrect |
| Front tyres | 7.50 x 18correct |
| Rear tyres | 14 x 34correct |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | frame constructioncorrect |
|---|---|
| Units built | 4,933correct |
Where this model stands
Power-to-weight ratio: 15.4 kW/t (43 kW / 2.8 t)
Power class: Universal (40–100 hp)
Stronger than 41% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the International Harvester 650 have?
The International Harvester 650 delivers 58.7 hp.
How much does the International Harvester 650 weigh?
The unladen weight is 2,799 kg.
What engine does the International Harvester 650 have?
4 cylinders, 5,734 cm³ displacement, Benzin/Diesel/LPG.
How fast does the International Harvester 650 go?
Top speed is 25 km/h.
What are the dimensions of the International Harvester 650?
3,429 mm × 1,930 mm × 1,822 mm.
When was the International Harvester 650 built?
Production years: 1956–1958.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
