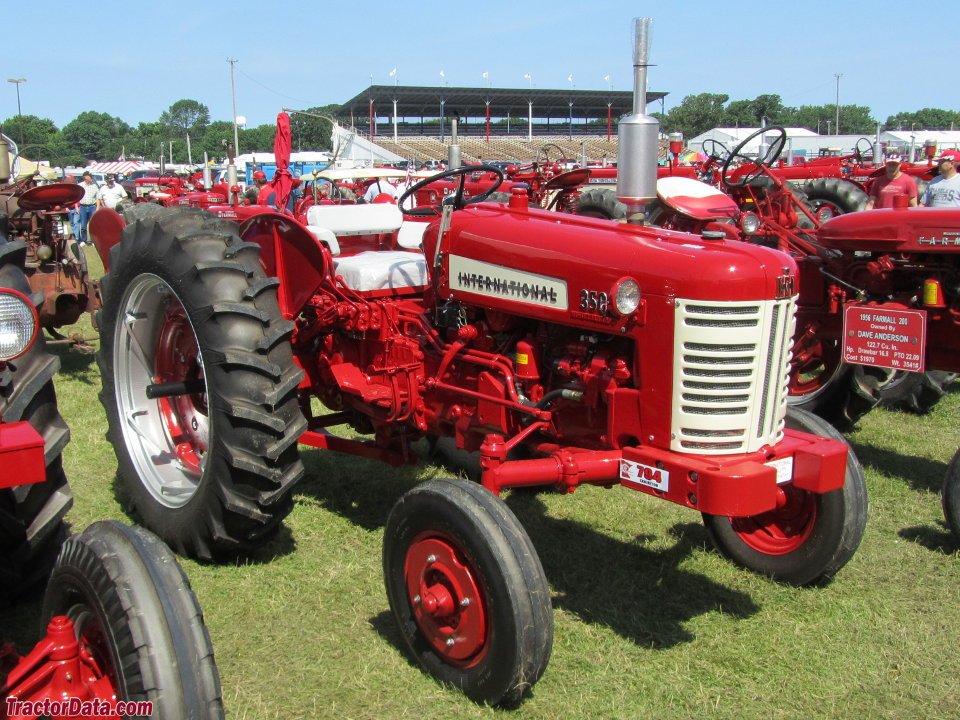

International Harvester 350 UTILITY

Built: 1956–1958 · Series: 50 er-Serie

More machines from model year 1956

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 50er series from International Harvester includes the 350 UTILITY. Production: 1956–1958. The engine delivers 41 hp (30.2 kW), has 4 cylinders, with a displacement of 2,875 cm³. Rated speed is 2,000 rpm. The machine is 3,023 mm long, 1,626 mm wide and 1,499 mm high. The unladen weight is 2,084 kg. The wheelbase measures 1,905 mm. Ground clearance is 508 mm. Top speed is 25 km/h. Transmission: 5 V/1 R or 10 V/2 R. The engine is water-cooled. Tyres: front 5.50-16, rear 10.00-28. The fuel is Benzin/LPG/Diesel. The bore measures 92.08 mm. The stroke is 107.95 mm. Construction: frame construction. Around 18.525 units were built. The 50 er-Serie series covers 5 models. Rated output within it ranges from 39 to 58.7 hp; the 350 UTILITY sits at the bottom of that range with 41 hp. Its immediate neighbours are the FARMALL 350 below it with 39 hp and the FARMALL 450 above it with 52 hp. Unladen weight within it ranges from 2,084 to 2,799 kg; here the 350 UTILITY sits at the bottom of that range with 2,084 kg. 391 International Harvester models across 45 series are on record.

International Harvester Farmall 350 to W-450 (1950s) – the multi-fuel field tractors from Rock Island: petrol, LPG or diesel by choice, four-cylinder, 29 to 43 kW, 2.08 to 2.8 t

International Harvester built one of the most defining American tractor families at its Farmall Works plant in Rock Island, Illinois, with the Farmall range; the 350 and 450 models of the 1950s were offered as the classic narrow-front Farmall, as the 350 Utility with a conventional front axle, or as the W-450 standard tractor. A distinctive feature of this range was the free choice of fuel: the same four-cylinder engines were offered for petrol, LPG or diesel, letting farmers choose according to local fuel availability and price.

Read on 3 more paragraphs

The register lists 5 versions with engines of 2,875 to 5,734 cm³, outputs of 28.7 to 43.2 kW and rated speeds of 1,450 to 2,000 rpm. Service weights range from 2,084 to 2,799 kg, lengths from 3,023 to 3,632 mm, widths from 1,626 to 2,134 mm.

The 50 series competed directly with John Deere and Massey-Harris in the North American mid-size segment of the 1950s; the classic Farmall's narrow-front design was optimised for row-crop corn work, while the 350 Utility and W-450, as standard tractors with a fixed front axle, took on broader tasks.

On used tractors, operating hours, the condition of carburettor or injection pump depending on the fuel variant, the LPG system and its tightness on the liquid-gas models, clutch and gearbox, and rust on sheet-metal parts count; parts supply runs through Case IH as legal successor to International Harvester.

Sources: SpecCodex register, model data: International Harvester 50er-Serie, Case IH (Rechtsnachfolger International Harvester)

Technical data

Engine

Fuel	Benzin/LPG/Dieselcorrect
Power	41 hp (30.2 kW)correct
Rated speed	2,000 rpmcorrect
Cylinders	4correct
Displacement	2,875 cm³correct
Bore	92.08 mmcorrect
Stroke	107.95 mmcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,023 mmcorrect
Width	1,626 mmcorrect
Height	1,499 mmcorrect
Wheelbase	1,905 mmcorrect
Ground clearance	508 mmcorrect
Unladen weight	2,084 kgcorrect

Drivetrain and chassis

Drive	rear-wheel drivecorrect
Gearbox	5 V/1 R or 10 V/2 Rcorrect
Front tyres	5.50-16correct
Rear tyres	10.00-28correct
Top speed	25 km/hcorrect

Origin and approval

Construction	frame constructioncorrect
Units built	18,525correct

Where this model stands

Power-to-weight ratio: 14.5 kW/t (30 kW / 2.1 t)

Power class: Universal (40–100 hp)

Stronger than 27% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the International Harvester 350 UTILITY have?

The International Harvester 350 UTILITY delivers 41 hp.

How much does the International Harvester 350 UTILITY weigh?

The unladen weight is 2,084 kg.

What engine does the International Harvester 350 UTILITY have?

4 cylinders, 2,875 cm³ displacement, Benzin/LPG/Diesel.

How fast does the International Harvester 350 UTILITY go?

Top speed is 25 km/h.

What are the dimensions of the International Harvester 350 UTILITY?

3,023 mm × 1,626 mm × 1,499 mm.

When was the International Harvester 350 UTILITY built?

Production years: 1956–1958.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
