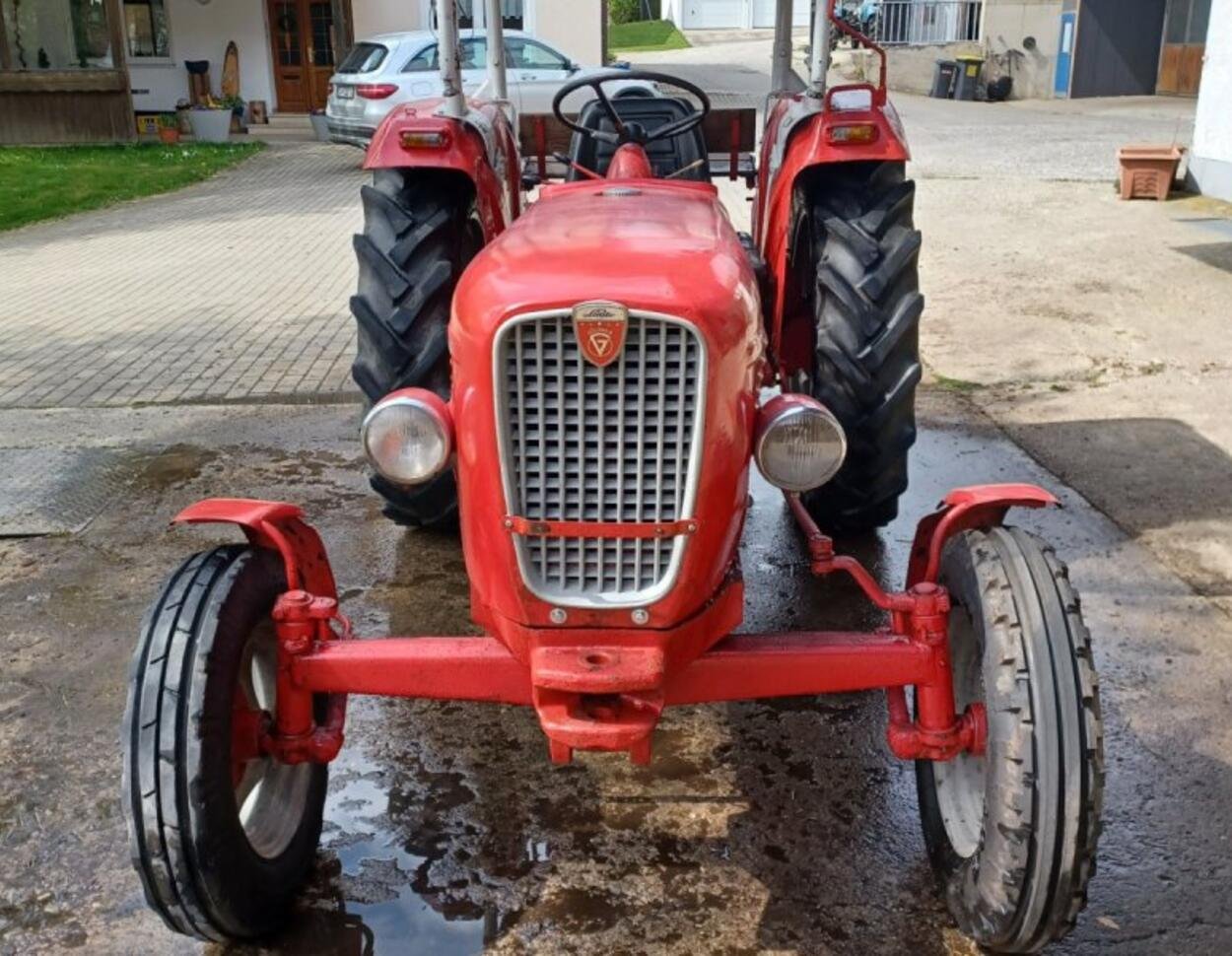

Güldner G 60 (S)
Built: 1968–1969 · Series: G-Reihe
More machines from model year 1968
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Güldner G Series – Main Series of the Aschaffenburg Builder, 1962 to 1969: two- to six-cylinder engines with 11 to 47.6 kW (15 to 60 hp), 885 to 4,712 cm³ displacement
The G series was the main line of the tractor manufacturer Güldner, based in Aschaffenburg, and covered a wide power spectrum from 1962 to 1969. According to the register, output of the recorded models ranges from 11 to 47.6 kW, with models rated in horsepower from 15 to 60 hp, using two- to six-cylinder engines with displacement from 885 to 4,712 cm³.
Read on 3 more paragraphs
Recorded operating weight runs from 890 to 3,985 kg, wheelbase from 1,650 to 2,416 mm, and top speed of the listed models spans 19.4 to 26.22 km/h. Models with the S suffix denoted a synchronised gearbox.
The G series was the manufacturer's broadest range until Güldner ended tractor production in 1969, spanning compact models such as the G 15 to large variants such as the G 75. For a used model, the exact engine matters most, as output and cylinder count differ considerably within the series.
A synchronised gearbox, as fitted to the S models of the G series, allows shifting between adjacent gears without an intermediate clutch action and without the extra throttle blip needed on unsynchronised gearboxes, easing gear changes during field work. Across the entire power range of the G series up to 47.6 kW, the three-point hitch stayed within category I under ISO 730, and the PTO ran at 540 rpm. Parts for the G series are today mainly available through specialist Güldner and vintage-machinery dealers.
Sources: SpecCodex register, model data: Güldner G-Reihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 60 hp (44.2 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 4,712 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,955 mmcorrect |
|---|---|
| Width | 1,865 mmcorrect |
| Height | 1,625 mmcorrect |
| Wheelbase | 2,315 mmcorrect |
| Ground clearance | 400 mmcorrect |
| Unladen weight | 2,750 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | (2V+1R)x4correct |
| Front tyres | 7.50-18 ASFcorrect |
| Rear tyres | 14-30 AScorrect |
| Top speed | 26.22 km/hcorrect |
Origin and approval
| Construction | frameless unit constructioncorrect |
|---|---|
| Units built | 261correct |
Where this model stands
Power-to-weight ratio: 16.1 kW/t (44 kW / 2.8 t)
Power class: Universal (40–100 hp)
Stronger than 42% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Güldner G 60 (S) have?
The Güldner G 60 (S) delivers 60 hp.
How much does the Güldner G 60 (S) weigh?
The unladen weight is 2,750 kg.
What engine does the Güldner G 60 (S) have?
6 cylinders, 4,712 cm³ displacement, Diesel.
How fast does the Güldner G 60 (S) go?
Top speed is 26.2 km/h.
What are the dimensions of the Güldner G 60 (S)?
3,955 mm × 1,865 mm × 1,625 mm.
When was the Güldner G 60 (S) built?
Production years: 1968–1969.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 20 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
