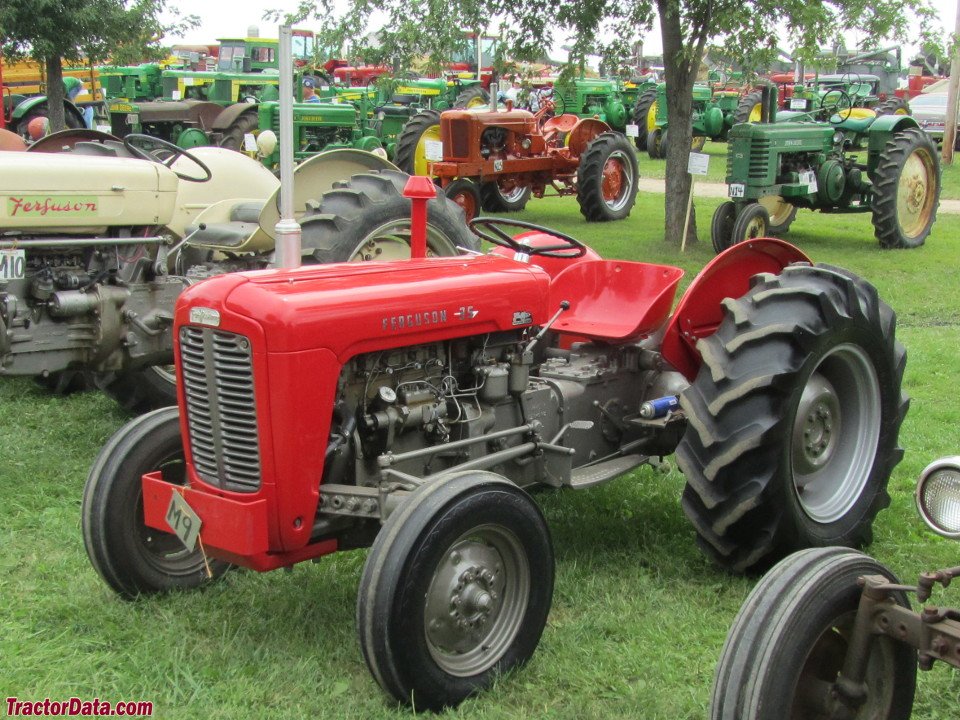

Ferguson Fe 35 Special
Built: 1957 · Series: Other models
More machines from model year 1957
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ferguson – other models: British tractors outside the named ranges, from the TE-20 ("Grey Fergie") through the TED and TEF to the North American TO-20, 17.5 to 37.5 kW, Standard and Continental engines
This page gathers the Ferguson tractors the register could not assign to a named range – essentially the TE-20 and its close relatives, the most numerously built British tractor of the post-war period. Harry Ferguson, inventor of the three-point hydraulic linkage with draft control, began production in 1946 at the Banner Lane plant in Coventry; in 1953 his company merged with Massey-Harris to form Massey Ferguson, which is why some of the models listed here already carry the short-lived transitional badge FE-35. The type logic: TE stands for "Tractor England", the following letters give the fuel type – TED for paraffin/TVO, TEF for diesel, TEA for petrol – D at the end often marks the diesel version. The sister version built in Detroit carried the designation TO-20 and was supplied with a Continental engine instead of the British Standard unit. The engines of the British versions come from the Standard Motor Company of Coventry, which developed the overhead-valve four-cylinder specifically for Ferguson.
Read on 3 more paragraphs
The register lists here 40 versions with 17.5 to 37.5 kW from three- to four-cylinders of 1,850 to 2,500 cm³, unladen weights from 1,100 to 1,570 kg, lengths from 2,760 to 3,370 mm and widths from 1,530 to 2,340 mm.
The TE-20 is regarded as one of the most influential tractors in history: Ferguson's patented three-point hydraulic linkage with draft control became a worldwide industry standard and is still found on practically every modern farm tractor; in Britain the "Grey Fergie" remains a fixture of vintage-vehicle rallies and the collector scene to this day.
On used tractors, the condition of the cylinder head and pistons counts (many engines ran for decades and were rebuilt several times), the tightness of the hydraulic draft control, the condition of the steering and front axle, rust on sheet metal, and – on paraffin versions – the state of the carburettor and warm-up switch; thanks to the large collector base in Britain, parts are widely available.
Sources: SpecCodex register, model data: Ferguson (weitere Modelle), Massey Ferguson (Nachfolgemarke)
Technical data
Engine
| Power | 27 kWcorrect |
|---|---|
| Cylinders | 3correct |
| Displacement | 2,500 cm³correct |
Dimensions and weights
| Length | 3,000 mmcorrect |
|---|---|
| Width | 1,620 mmcorrect |
| Unladen weight | 1,570 kgcorrect |
Where this model stands
Power-to-weight ratio: 17.2 kW/t (27 kW / 1.6 t)
Power class: Compact (< 40 hp)
Stronger than 22% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Ferguson Fe 35 Special have?
The Ferguson Fe 35 Special delivers 27 kW.
How much does the Ferguson Fe 35 Special weigh?
The unladen weight is 1,570 kg.
What engine does the Ferguson Fe 35 Special have?
3 cylinders, 2,500 cm³ displacement.
What are the dimensions of the Ferguson Fe 35 Special?
3,000 mm × 1,620 mm.
When was the Ferguson Fe 35 Special built?
Production years: 1957.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 7 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
