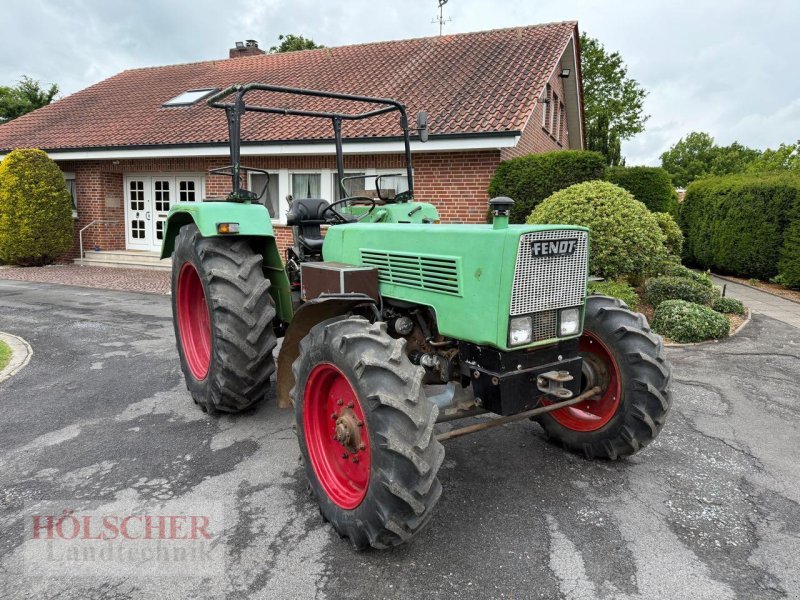

Fendt Farmer 106
Built: 1972–1980 · Series: Farmer 100
More machines from model year 1972
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fendt Farmer 102 to 108 – the classic standard-tractor range before Vario: three- and four-cylinders, S and SA as trim variants, 29 to 55 kW, 2.27 to 3.23 t
The Farmer range was Fendt's standard-tractor programme for decades before Vario transmission technology transformed the whole line-up from the 1990s onward; the Farmer 100 series, with the 102 to 108 models, covers the mid power segment for classic arable and grassland farming. The type logic orders the number by power class in ascending order, S on the 105 marking a special or sport version with more power, SA a four-wheel-drive variant of that trim. The engines range from a three-cylinder in the 102 to a four-cylinder in the larger models, all with a classic manual gearbox and mechanical injection typical of Fendt tractors before the Vario era.
Read on 3 more paragraphs
The register lists 5 versions with 29.3 to 55 kW from engines of 2,550 to 4,154 cm³, operating weights from 2,270 to 3,225 kg and a linkage lift capacity of up to 3,200 kg; lengths range from 3,625 to 3,900 mm, widths from 1,706 to 2,092 mm and heights from 2,347 to 2,488 mm at rated speeds of 2,175 to 2,400 rpm.
The Farmer 100 tractors represent the solid, mechanically simple Fendt generation before the Vario era and are in demand on the used market among farms looking for a rugged, easily repaired all-rounder without complex electronics.
On used tractors, the condition of clutch and gearbox, leak-free hydraulics and injection pump, rust on panels and mudguards, the condition of the front axle on the SA four-wheel-drive models and parts supply, still working well for the mechanically simple technology through the Fendt network, are what count.
Sources: SpecCodex register, model data: Fendt Farmer 100, Fendt (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 65 hp (48 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,378 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,821 mmcorrect |
|---|---|
| Width | 2,092 mmcorrect |
| Height | 2,488 mmcorrect |
| Wheelbase | 2,247 mmcorrect |
| Ground clearance | 430 mmcorrect |
| Unladen weight | 3,050 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | Synchrongetriebecorrect |
| Front tyres | 6.5 R-20 (Allrad: 9.5-24)correct |
| Rear tyres | 16.9 R-34correct |
| Top speed | 32 km/hcorrect |
Working data
| Fuel tank capacity | 80 lcorrect |
|---|
Origin and approval
| Units built | 11,769correct |
|---|
Other data
| PTO speed | 564/1004 rpmcorrect |
|---|
Where this model stands
Power-to-weight ratio: 15.7 kW/t (48 kW / 3 t)
Power class: Universal (40–100 hp)
Stronger than 45% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt Farmer 106 have?
The Fendt Farmer 106 delivers 65 hp.
How much does the Fendt Farmer 106 weigh?
The unladen weight is 3,050 kg.
What engine does the Fendt Farmer 106 have?
4 cylinders, 3,378 cm³ displacement, Diesel.
How fast does the Fendt Farmer 106 go?
Top speed is 32 km/h.
What are the dimensions of the Fendt Farmer 106?
3,821 mm × 2,092 mm × 2,488 mm.
When was the Fendt Farmer 106 built?
Production years: 1972–1980.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
