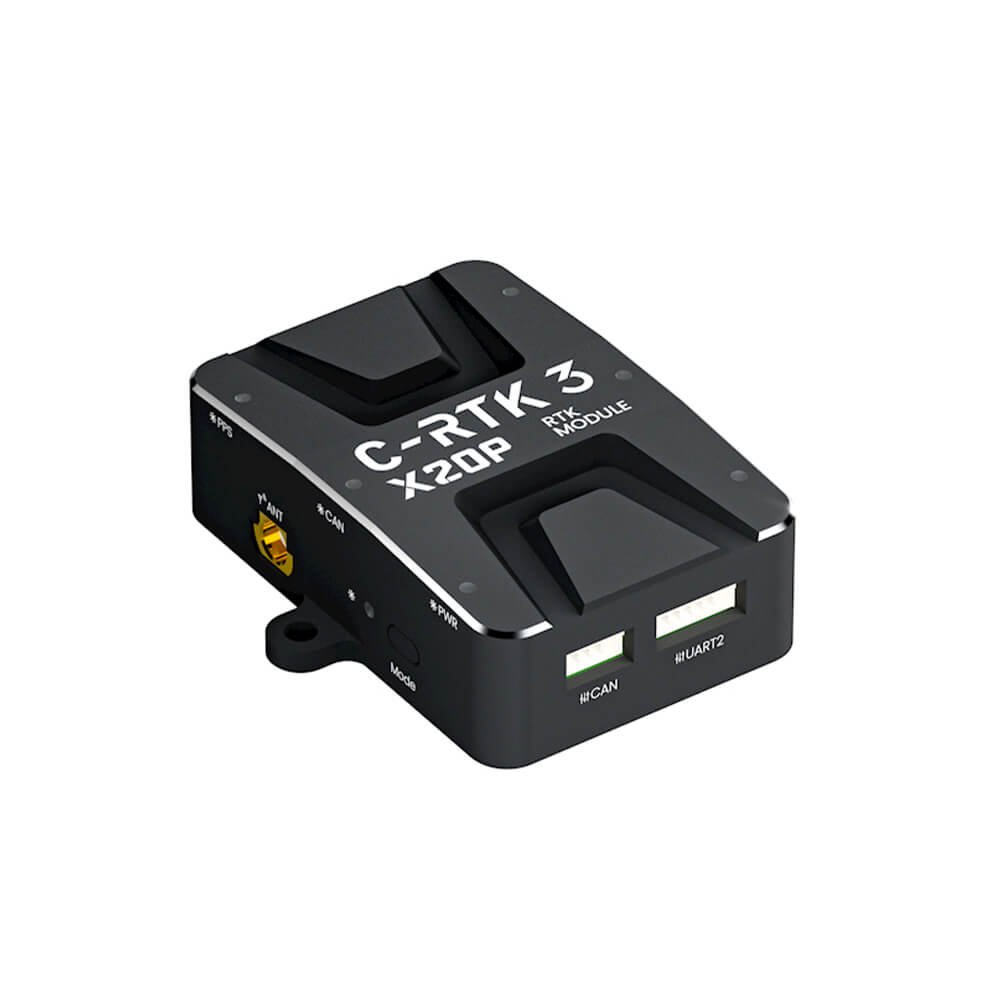

CUAV C-RTK 3 X20P
Series: CUAV RTK GNSS modules for drones
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The CUAV C-RTK 3 X20P is an all-band RTK GNSS module for medium-class multicopters. Chinese maker CUAV uses the u-blox ZED-X20P receiver with 672 channels and adds an RM3100 compass and an interface for DroneCAN or CAN FD.
The module receives GPS (L1C/A, L2C, L5), BeiDou (B1I, B1C, B2a, B3I), Galileo (E1, E5a, E6), QZSS up to L6 and NavIC (L1, L5), plus SBAS. For RTK the manufacturer states 0.006 m + 1 ppm horizontally, that is 0.6 cm plus 1 mm per kilometre of distance from the base; for PPP-RTK below 0.06 m, and standalone without corrections 1.2 m. The module outputs positions at 25 Hz. It speaks NMEA, UBX, RTCM 3.4 and SPARTN 2.0.2 and has UART, CAN (DroneCAN, CAN FD) and USB-C. It weighs 30 g without antenna and cable.
SPARTN is the correction format of PPP-RTK services: the corrections then arrive over the internet or by satellite from a provider instead of from a nearby base, and give values below 6 cm by the manufacturer's figures, rather than the sub-centimetre class typical of RTK with a nearby base. Legally the aircraft is what counts: the EU classes C1 to C3 require geo-awareness and remote ID based on the GNSS position, and the 30 g module weight adds to the antenna when class limits such as C0 below 250 g are at stake.
For selection, the planned correction source matters: base, NTRIP or SPARTN. The CAN FD variant needs autopilot firmware that supports it. Upkeep includes compass calibration, checking the antenna lead and current firmware.
Technical data
Other data
| Chipset | u-blox ZED-X20P (672 Kanaele)correct |
|---|---|
| Compass | RM3100correct |
| Constellations | ['GPS', 'GLONASS', 'Galileo', 'BeiDou', 'QZSS', 'NavIC', 'SBAS']correct |
| Frequency bands | GPS L1C/A L2C L5; GLONASS L1OF L2OF; BeiDou B1I B1C B2a B3I; Galileo E1 E5a E6; QZSS bis L6; NavIC L1/L5correct |
| Horizontal accuracy (cm) | 0.6correct |
| Interfaces | UART, CAN (DroneCAN/CAN FD), USB-C; NMEA, UBX, RTCM 3.4, SPARTN 2.0.2correct |
| RTK capable | yescorrect |
| Update rate (Hz) | 25correct |
| Weight (g) | 30correct |
