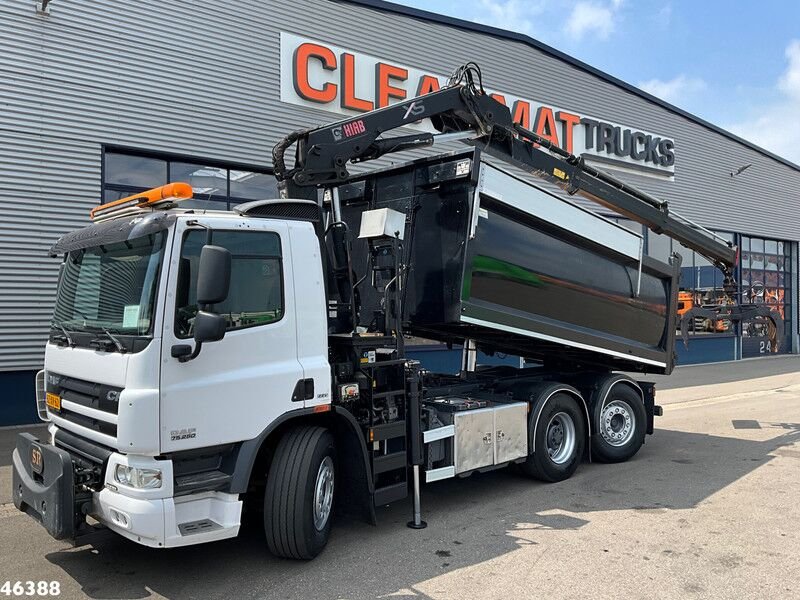

DAF FAN CF510Z
Built: 2016 · Series: FAN
More machines from model year 2016
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
DAF FAN – chassis with a fixed trailing axle: CF, XF and LF base as 6x2 three-axle trucks, six-cylinders, 266 to 375 kW, up to 31,500 kg gross weight
DAF was founded in 1928 in Eindhoven as Van Doorne's Aanhangwagen Fabriek and has built its own trucks since 1949; the company has belonged to PACCAR since 1996. In the brand's chassis logic FA denotes a basic 4x2 chassis, and N adds a fixed, non-steered trailing axle to make a 6x2 three-axle chassis. The collective page spans the classic CF75 and CF85 chassis, the heavy XF105 range, the lighter LF55 and the CF Electric, DAF's battery-electric distribution chassis.
Read on 3 more paragraphs
The register lists here 32 versions with 266 to 375 kW from six-cylinders throughout of 6,693 to 12,902 cm³ displacement, unladen weights from 10,255 to 25,610 kg, gross weights from 21,000 to 31,500 kg, lengths from 7,570 to 12,000 mm and widths from 2,400 to 2,600 mm.
The fixed trailing axle is the simpler and lighter option compared with the liftable FAS version and is found above all on chassis that run loaded almost all the time – tippers, swap-body and distribution bodies in construction and delivery traffic, where the extra weight on the third axle spreads the load across more axles and reduces the load per axle.
On a used example, bearing play and linkage of the trailing axle, corrosion on the frame and axle brackets, the condition of the PACCAR MX engine (turbocharger, EGR, injection) and the clutch and gearbox (ZF AS Tronic) count; on Electric chassis, battery condition and charging history. Parts run through the dense DAF dealer network.
Sources: SpecCodex register, model data: DAF FAN, DAF Trucks (manufacturer)
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 12,902 cm³correct |
Dimensions and weights
| Length | 8,570 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 6,000 mmcorrect |
| Unladen weight | 12,432 kgcorrect |
| Gross vehicle weight | 28,000 kgcorrect |
Drivetrain and chassis
| Wheels | 8correct |
|---|
Frequently asked questions
How much does the DAF FAN CF510Z weigh?
The unladen weight is 12,432 kg.
What is the gross vehicle weight of the DAF FAN CF510Z?
28,000 kg.
What engine does the DAF FAN CF510Z have?
6 cylinders, 12,902 cm³ displacement.
What are the dimensions of the DAF FAN CF510Z?
8,570 mm × 2,550 mm.
When was the DAF FAN CF510Z built?
Production years: 2016.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
