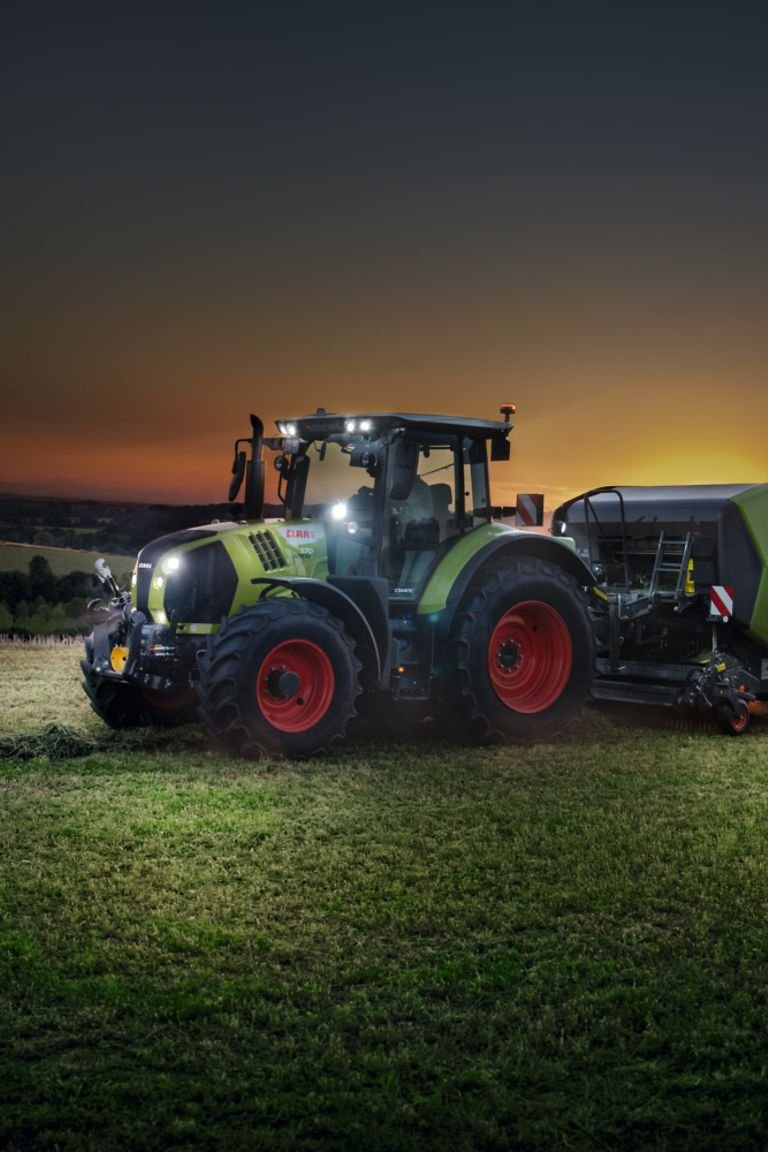

CLAAS ARION 570 CMATIC – specifications
Built: 2025-2026 · Series: ARION
With the ARION 570 CMATIC, CLAAS offers a model from the ARION series. Production: 2025-2026. The engine delivers 132 kW, has 4 cylinders, with a displacement of 4,525 cm³. The machine is 5,644 mm long and 3,000 mm wide. The unladen weight is 6,800 kg. The gross vehicle weight is 11,000 kg. The ARION series covers 27 models. Rated output within it ranges from 77 to 154 kW; the ARION 570 CMATIC sits in the upper part of that range with 132 kW. Its immediate neighbours are the ARION 550 CMATIC below it with 124 kW and the ARION 650 CMATIC above it with 145 kW. Unladen weight within it ranges from 5,050 to 7,400 kg; here the ARION 570 CMATIC sits in the upper part of that range with 6,800 kg. 856 CLAAS models across 54 series are on record.
Data for the version built 2025-2026 · Data origin: Official register · sources
More machines from model year 2025
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
CLAAS Arion – Mid-Range Tractor From the Former Renault Plant in Le Mans, with Four- and Six-Cylinder Engines, 77 to 154 kW and Operating Weight from 5,050 to 7,400 kg
The Arion series traces back to Renault Agriculture and has continued under the CLAAS name since CLAAS took over the Le Mans plant in 2003. According to the register, output of the recorded models ranges from 77 to 154 kW, using four- and six-cylinder engines with displacement from 4,485 to 6,789 cm³.
Read on 3 more paragraphs
Recorded operating weight runs from 5,050 to 7,400 kg, and top speed of the listed variants spans 40.1 to 50.1 km/h. Besides conventional powershift gearboxes, CLAAS also offers stepless CMATIC transmission within the Arion family, identifiable from the corresponding model designations in the register.
Within the CLAAS line-up, the Arion sits between the smaller Axos and Celtis models and the larger Axion series, aimed at farms with mixed requirements spanning arable work, transport and front-loader tasks. Buyers of a used Arion should pay attention to gearbox variant and cab equipment, as the range expanded considerably across model years.
With rated outputs from 77 to 154 kW, the Arion falls within ISO 730 Category II to III for the rear three-point hitch, with a standard dual-speed power take-off at 540 and 1,000 revolutions per minute. The John Deere diesel engines come from a manufacturer that remains active today and still supplies spare parts for these model years, including injection components.
Sources: SpecCodex register, model data: CLAAS Arion, CLAAS
Technical data
Engine
| Power | 132 kWcorrect |
|---|---|
| Cylinders | 4correct |
| Displacement | 4,525 cm³correct |
Dimensions and weights
| Length | 5,644 mmcorrect |
|---|---|
| Width | 3,000 mmcorrect |
| Unladen weight | 6,800 kgcorrect |
| Gross vehicle weight | 11,000 kgcorrect |
Frequently asked questions
Area: Machines
Where this model stands
Power-to-weight ratio: 19.4 kW/t (132 kW / 6.8 t)
Power class: Large (100–180 hp)
Stronger than 89% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
