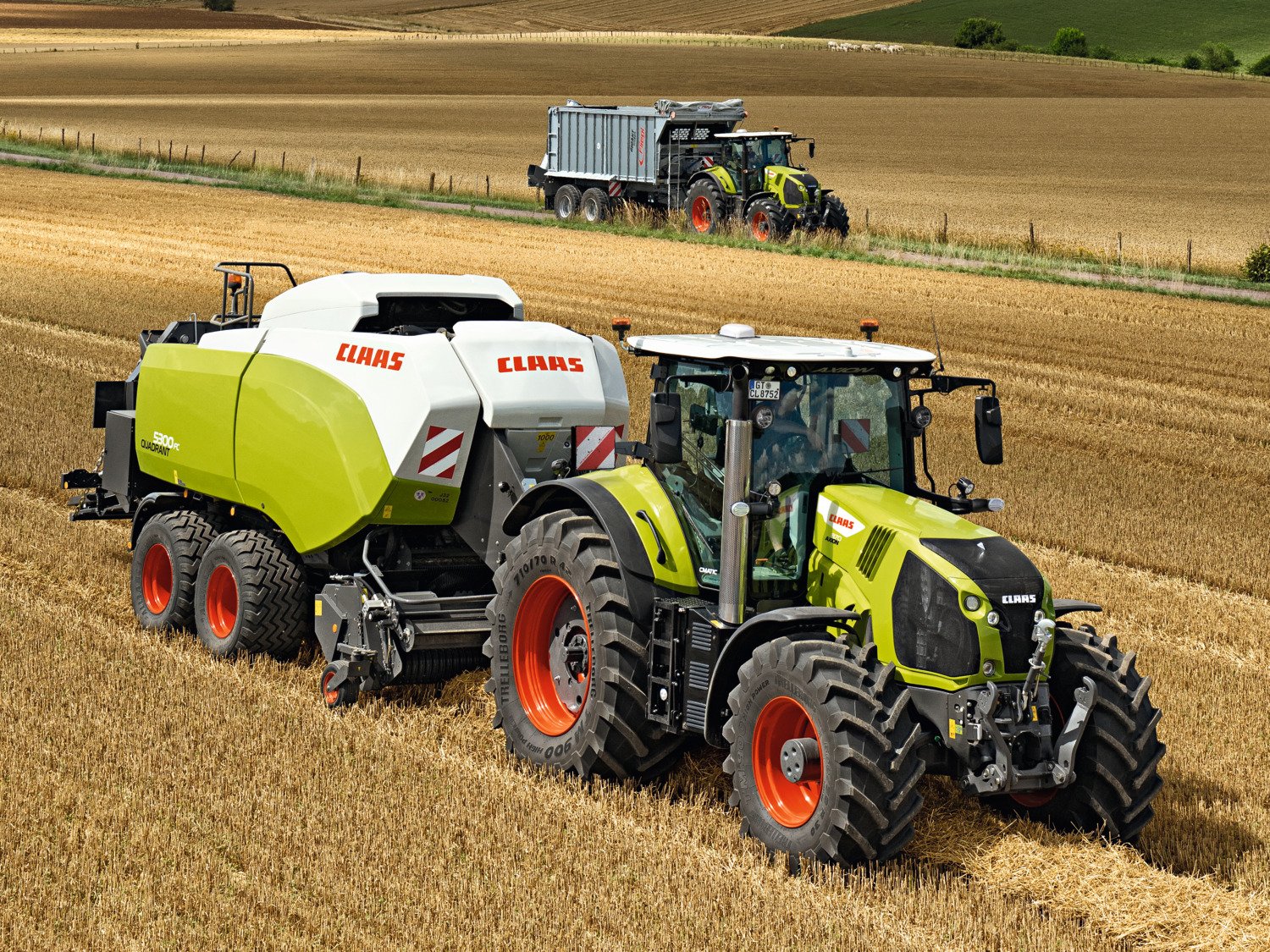

CLAAS ARION 470
Built: 2022-2024 · Series: ARION
More machines from model year 2022
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
CLAAS Arion – Mid-Range Tractor From the Former Renault Plant in Le Mans, with Four- and Six-Cylinder Engines, 77 to 154 kW and Operating Weight from 5,050 to 7,400 kg
The Arion series traces back to Renault Agriculture and has continued under the CLAAS name since CLAAS took over the Le Mans plant in 2003. According to the register, output of the recorded models ranges from 77 to 154 kW, using four- and six-cylinder engines with displacement from 4,485 to 6,789 cm³.
Read on 3 more paragraphs
Recorded operating weight runs from 5,050 to 7,400 kg, and top speed of the listed variants spans 40.1 to 50.1 km/h. Besides conventional powershift gearboxes, CLAAS also offers stepless CMATIC transmission within the Arion family, identifiable from the corresponding model designations in the register.
Within the CLAAS line-up, the Arion sits between the smaller Axos and Celtis models and the larger Axion series, aimed at farms with mixed requirements spanning arable work, transport and front-loader tasks. Buyers of a used Arion should pay attention to gearbox variant and cab equipment, as the range expanded considerably across model years.
With rated outputs from 77 to 154 kW, the Arion falls within ISO 730 Category II to III for the rear three-point hitch, with a standard dual-speed power take-off at 540 and 1,000 revolutions per minute. The John Deere diesel engines come from a manufacturer that remains active today and still supplies spare parts for these model years, including injection components.
Sources: SpecCodex register, model data: CLAAS Arion, CLAAS
Technical data
Engine
| Power | 114 kWcorrect |
|---|---|
| Cylinders | 4correct |
| Displacement | 4,485 cm³correct |
Dimensions and weights
| Length | 4,584 mmcorrect |
|---|---|
| Width | 2,762 mmcorrect |
| Unladen weight | 5,050 kgcorrect |
| Gross vehicle weight | 9,000 kgcorrect |
Where this model stands
Power-to-weight ratio: 22.6 kW/t (114 kW / 5 t)
Power class: Large (100–180 hp)
Stronger than 84% of the tractors in the register — out of 15,661 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the CLAAS ARION 470 have?
The CLAAS ARION 470 delivers 114 kW.
How much does the CLAAS ARION 470 weigh?
The unladen weight is 5,050 kg.
What is the gross vehicle weight of the CLAAS ARION 470?
9,000 kg.
What engine does the CLAAS ARION 470 have?
4 cylinders, 4,485 cm³ displacement.
What are the dimensions of the CLAAS ARION 470?
4,584 mm × 2,762 mm.
When was the CLAAS ARION 470 built?
Production years: 2022-2024.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
