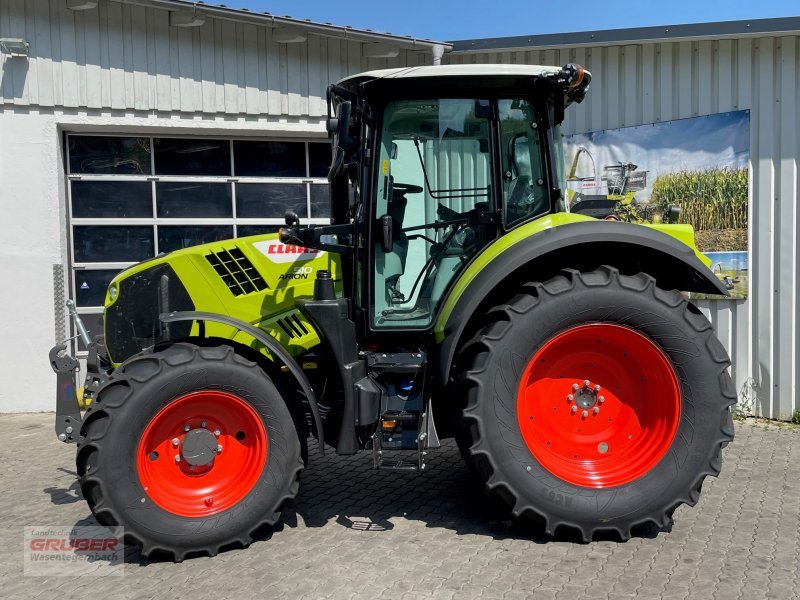

CLAAS Arion 510 4WD
Series: ARION
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The CLAAS Arion 510 is a tractor from the Claas 4WD Tractor series. Power comes from a four-cylinder engine; from 4.5 litres it draws 112 hp (77 kW). Rated speed is 2,200 rpm.
At 40 km/h, that is as fast as it goes. At 6,184 kg, it puts weight behind its pulling power — a good 55 kilograms per hp.
Within the range, rated power spans from 74.1 to 517 hp; with 112 hp, the Arion 510 sits in the lower third. Directly alongside are the Ares 557 with 104 hp below and the Arion 520 with 122 hp above.
Technical data
Engine
| Engine model | ECE R 24correct |
|---|---|
| Power | 111.5 hp (77 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,526.1 cm³correct |
Dimensions and weights
| Ground clearance | 483.1correct |
|---|---|
| Unladen weight | 6,184 kgcorrect |
Drivetrain and chassis
| Gearbox type | powershift transmission speeds 6correct |
|---|---|
| Forward gears | 24correct |
| Reverse gears | 24correct |
| Tyre size | Front 13.6 R 28, Rear 16.9R38correct |
| Top speed | 40.1 km/hcorrect |
Working data
| Pump flow | 60.2 l/mincorrect |
|---|---|
| Hydraulic pressure | 200correct |
| Fuel tank capacity | 250.2 lcorrect |
Other data
| Height | 2,956.6correct |
|---|
Where this model stands
Power-to-weight ratio: 12.5 kW/t (77 kW / 6.2 t)
Power class: Large (100–180 hp)
Stronger than 70% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the CLAAS Arion 510 have?
The CLAAS Arion 510 delivers 112 hp.
How much does the CLAAS Arion 510 weigh?
The unladen weight is 6,184 kg.
What engine does the CLAAS Arion 510 have?
4 cylinders, 4,526 cm³ displacement.
How fast does the CLAAS Arion 510 go?
Top speed is 40.1 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 17 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
